UP-6010 Retention Tester with Modular Weight Design, Easy-Load Suspension System and 5 Measurement Groups for Adhesive Testing
UP-6010 Retention Tester with Modular Weight Design, Easy-Load Suspension System and 5 Measurement Groups for Adhesive Testing
UP-6010 Retention Tester with Modular Weight Design, Easy-Load Suspension System and 5 Measurement Groups for Adhesive Testing
UP-6010 Retention Tester with Modular Weight Design, Easy-Load Suspension System and 5 Measurement Groups for Adhesive Testing
UP-6010 Retention Tester with Modular Weight Design, Easy-Load Suspension System and 5 Measurement Groups for Adhesive Testing
UP-6010 Retention Tester with Modular Weight Design, Easy-Load Suspension System and 5 Measurement Groups for Adhesive Testing
Specifications
MOQ :
1
Price :
299
Brand Name :
YOUBI
Model Number :
UP-6010
Certification :
CE,ISO
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
20 Unit/Month
Delivery Time :
5-7 work days
Packaging Details :
Professional Export Packing
Model NO. :
UP-6010
HS Code :
9024800000
Number of Measurement Groups :
5groups
Standard Pressure Roller :
2000g±50g
Weights :
1000g±10g
Test Plate :
70mm*50mm*1.5mm
Applications :
Adhesive,Tape,Plastic, Ceramic, Acrylic
Service Support :
OEM ODM
Specification :
Refer to the actual size specifications
Language :
Chinese and English
Description

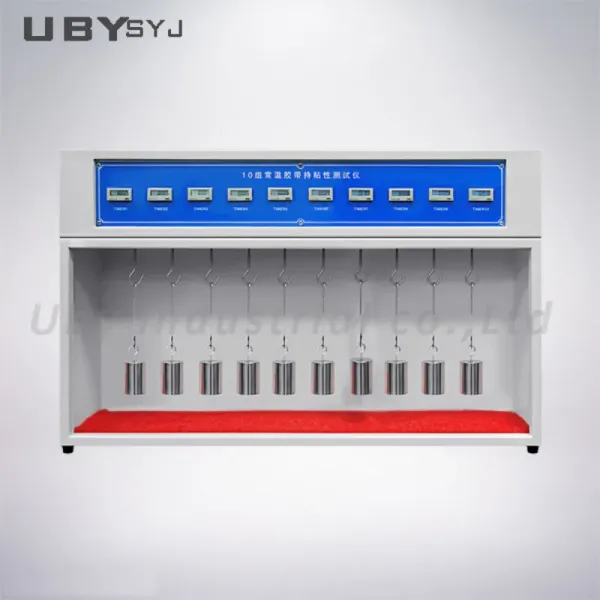

UP-6010 User-Friendly Retention Tester
The UP-6010 Retention Tester features a modular weight design and easy-load suspension system for efficient adhesive performance testing.
Product Overview
This tape retention tester performs static load tests on adhesive force, automatically recording the time tape can maintain under specific loads to confirm adhesion timeliness.
Testing Procedure
Cut a 1-inch wide tape strip and adhere it to specified SUS#304 stainless steel plate. The 2kg standard roller moves back and forth three times at 300mm per minute. The steel plate is then hung on the tester with specified weight added. When tape detaches, the timer automatically records test time to evaluate adhesive durability.
Applications
Widely used in adhesive products industries including adhesive tapes, protective films, stickers, labels, foams, and adhesives.
Compliance Standards
GB/T4851, CNS-11887, 11888, PSTC-107, ASTM D3654
Technical Specifications
Number of measurement groups 10 groups
Standard pressure roller 2000g±50g
Weights 1000g±10g
Test plate 70mm*50mm*1.5mm
Automatic timer 99H99M99S
Machine material Lacquer
Volume (W*D*H) 500*200*560mm
Weight 20kg
Product Images
UP-6010 Retention Tester with Modular Weight Design, Easy-Load Suspension System and 5 Measurement Groups for Adhesive Testing UP-6010 Retention Tester with Modular Weight Design, Easy-Load Suspension System and 5 Measurement Groups for Adhesive Testing
Our Service Commitment
Consultative Selling Process
  • Customer Inquiry: Technical requirement discussions, product recommendations, and competitive pricing
  • Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Progress photos, factory calibration, quality testing, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? What about after-sales service and warranty?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic rubber testing equipment. All machines include 12-month warranty with free maintenance. For sea transportation, we extend to 14 months. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. Urgent requirements receive special priority arrangements.
Do you accept customization and branding services?
Yes, we offer both standard and customized machines according to your requirements. OEM and ODM services include logo application on machines.
How do I install and operate the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
