UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable
UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable
UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable
UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable
Specifications
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-8022
Certification :
CE,ISO
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional export packing
Product name :
Peel Strength Tester
Model NO. :
UP-8022
Angle :
90°, 180° adjustable
Measurement Speed :
100-30000mm/Min Adjustable
Measurement Accuracy :
±0.5%.
Force Resolution :
1/500,000
Effective Stroke :
500mm
Service Support :
OEM ODM
Applications :
Adhesive,Tape,Plastic, Ceramic, Acrylic
Description

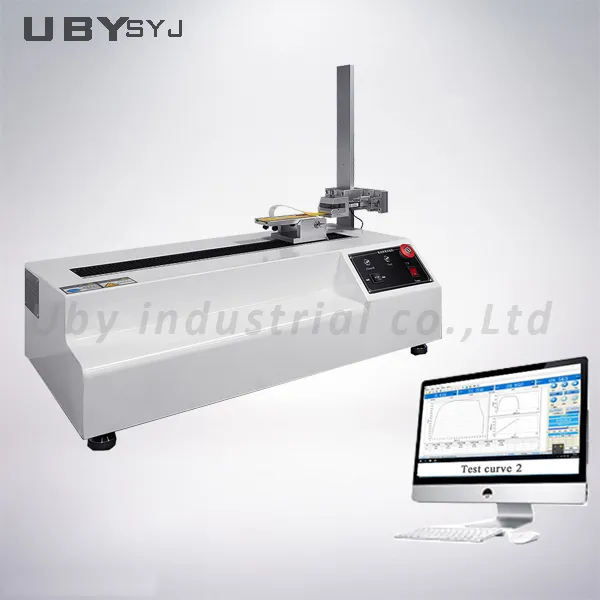

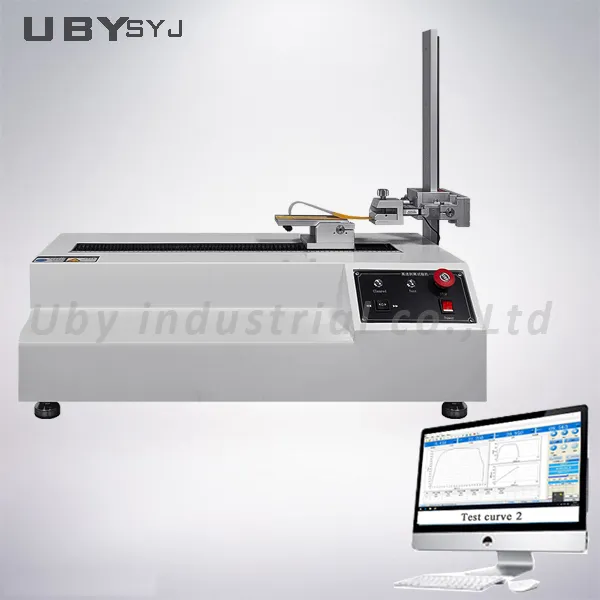

UP-8022 High Speed Peel Seal Bond And Adhesion Strength Tester

Description:
High-speed peel tester is suitable for the tensile strength, peel strength, deformation rate, breaking force, peeling force, opening force, thrust and other performance tests of plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products. In particular, the machine has an adjustable angle test piece fixing plate, and the height and angle of the sensor can be changed according to the needs of the user. It can perform peel tests at various angles, suitable for PSTC, ASTM, TLMI, FINAT and AFERA specifications, and can be used at 90° and 180°.

Application areas:
Tap, automobile, ceramics, composite materials, construction, food and medical equipment, metal, paper, packaging, rubber, textiles, wood, communications and various special-shaped materials.

Applicable standards:
PSTC: 101 (A, B, C, D, E, F), 4, 15, 55, ASTM D 3330, GB/2792
TLMI: L-IA1, L-IA2, L-IA3, AFERA: 4001 P11
FINAT: FTM 1-6, 10, 11

Product features:
1. Angle 90°, 180° adjustable;
2. Speed 100mm-30000mm/min adjustable;
3. High-frequency acquisition rate software makes the test more accurate;

Specifications:
1. Capacity selection: 10N, 20N, 50N, 100N, 200N, 500N (select one group).
2. Control mode: Full computer control adopts Window mode working platform, USB2.0 serial port connection, with simplified Chinese, traditional Chinese, English and other language switching, can realize curve analysis, original database export, test report output, arbitrary speed switching, can do stretching, peeling and other tests.
3. Angle adjustment: 45 degrees, 90 degrees, 135 degrees, 180 degrees and other multi-angle measurements.
4. Force unit: N, kN, gf, kgf, lbf, kP).
5. Length unit: mm, cm, Inch.
6. Stress unit: Pa, Kpa, MPa.
7. Force resolution: 1/500,000.
8. Measurement accuracy: ±0.5%.
9. Measurement speed: 100-30000mm/min adjustable.
10. Effective stroke: 500mm.
11. Width of test piece: 50mm.
12. Stop mode: upper and lower limit safety setting, test piece breakpoint sensing.
13. Result output: computer output.
14. Motor drive: Delta servo motor + Delta servo driver.
15. Machine transmission: ball screw + linear guide.
16. Machine power: 400W.
17. Machine size: 1363mm (W) × 420mm (D) × 850mm (H).
18. Power supply: 220V 50Hz.
19. Standard configuration: one set of fixtures, one power cord, and one instruction manual.

UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable
UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable
UP-8022 Adhesive Testing Equipment High Speed Peel Strength Tester Angle 90° 180° Adjustable

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
