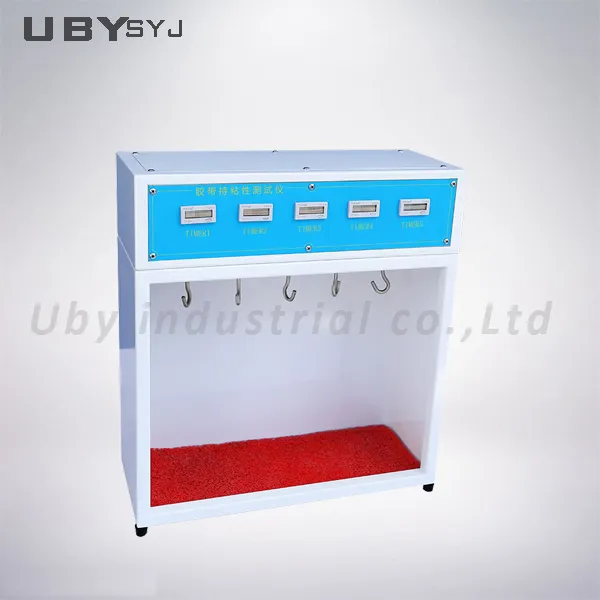

5 Station Adhesive Tape Machine Fully Enclosed Holding Force Test Machine UP-8001
5 Station Adhesive Tape Machine Fully Enclosed Holding Force Test Machine UP-8001
5 Station Adhesive Tape Machine Fully Enclosed Holding Force Test Machine UP-8001
5 Station Adhesive Tape Machine Fully Enclosed Holding Force Test Machine UP-8001
Specifications
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-8001
Certification :
CE,ISO
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional export packing
Product name :
Adhesive Tape Machine
Model NO. :
UP-8001
Standard pressure roller :
2000g±50g
Test plate :
70mm*50mm*1.5mm
Number of measurement groups :
5,10 groups
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Adhesive,Tape,Plastic, Ceramic, Acrylic
Specification :
Refer to the actual size specifications
Description

5 Station Adhesive Tape Holding Force Test Machine UP-8001

Description:
The normal temperature tape retention tester performs a static load test on the adhesive force of the tape, and automatically records the time the tape can be maintained under a certain load to confirm the timeliness of the tape's adhesion.
Cut a 1-inch wide strip of tape and stick it on the specified SUS#304 stainless steel plate.
The 2kg standard roller rolls back and forth three times at a speed of 300mm per minute.
The steel plate is hung on the tester and the specified weight is added.
When the tape falls off the steel plate, the timer will automatically retain the test time to evaluate the durability of the tape's adhesion.
The normal temperature tape retention tester is widely used in adhesive products industries such as adhesive tapes, protective films, stickers, labels, foams, adhesives, etc.
The normal temperature tape retention tester adopts a fully enclosed structure design, which eliminates the harsh requirements of the test process for the environment; it has an automatic memory function for the specimen drop time, and does not require operators to monitor during the test; the structure is beautiful and generous, the operation is simple, and it is practical and convenient.

Meet the standards: GB/T4851, CNS-11887, 11888, PSTC-7.

Specifications:

Number of measurement groups

5,10 groups


Standard pressure roller

2000g±50g


Weights

1000g±10g


Test plate

70mm*50mm*1.5mm


Automatic timer

99H99M99S


Machine material

lacquer


Volume(W*D*H)

500*200*560mm


Weight(W*D*H)

20kg


5 Station Adhesive Tape Machine Fully Enclosed Holding Force Test Machine UP-8001

5 Station Adhesive Tape Machine Fully Enclosed Holding Force Test Machine UP-8001


5 Station Adhesive Tape Machine Fully Enclosed Holding Force Test Machine UP-8001
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
