UP-1001 Fabric Rotary Abrasion Tester Machine , Taber Abrasion Machine For Textile Material
UP-1001 Fabric Rotary Abrasion Tester Machine , Taber Abrasion Machine For Textile Material
UP-1001 Fabric Rotary Abrasion Tester Machine , Taber Abrasion Machine For Textile Material
UP-1001 Fabric Rotary Abrasion Tester Machine , Taber Abrasion Machine For Textile Material
Specifications
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-1010
Certification :
CE,ISO
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Unions,Papal,Money Gram
Supply Ability :
20 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional export packaging
Model NO. :
UP-1010
Test plate speed :
60,70 rpm or specified
Grinding wheel :
H18
Test piece :
outside diameter 108mm, inside diameter 8mm
Language :
Chinese and English
Applications :
Fabrics, Leather and etc
Specification :
Refer to the actual size specifications
Service Support :
OEM ODM
Description

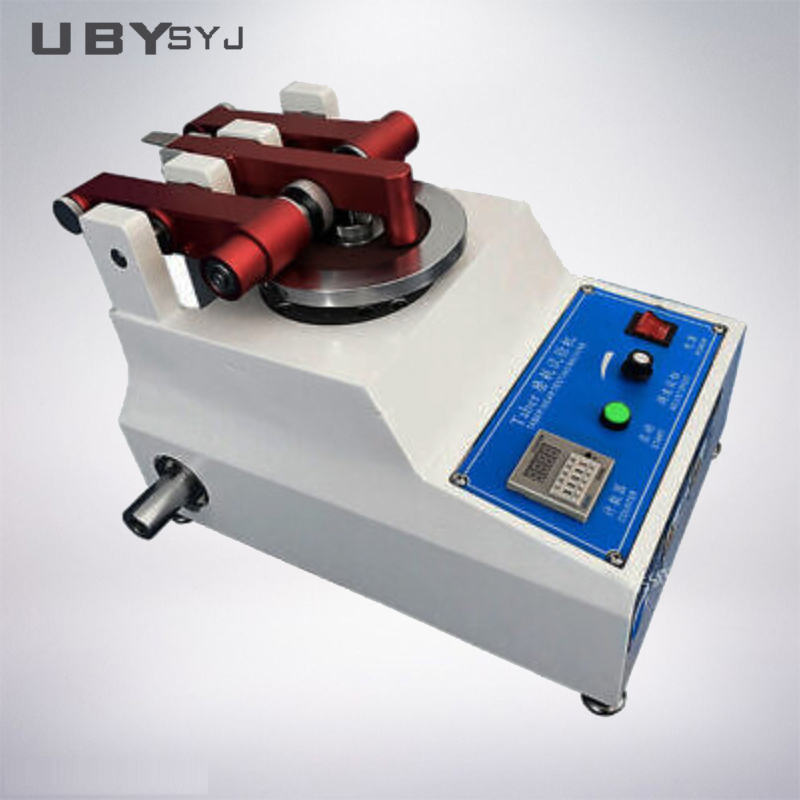

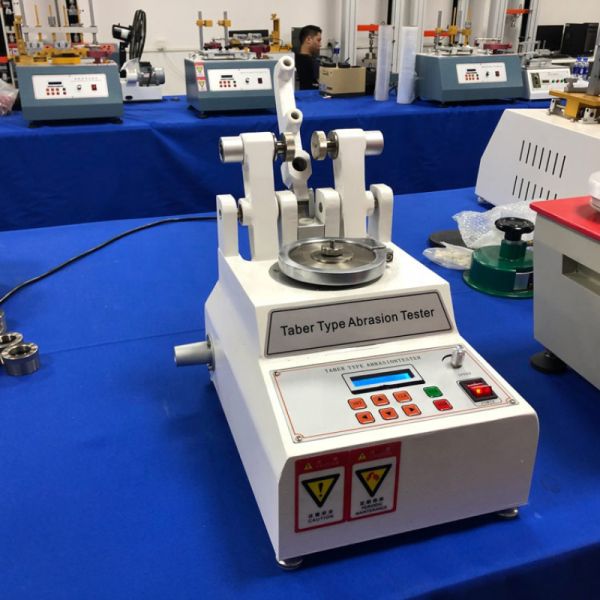

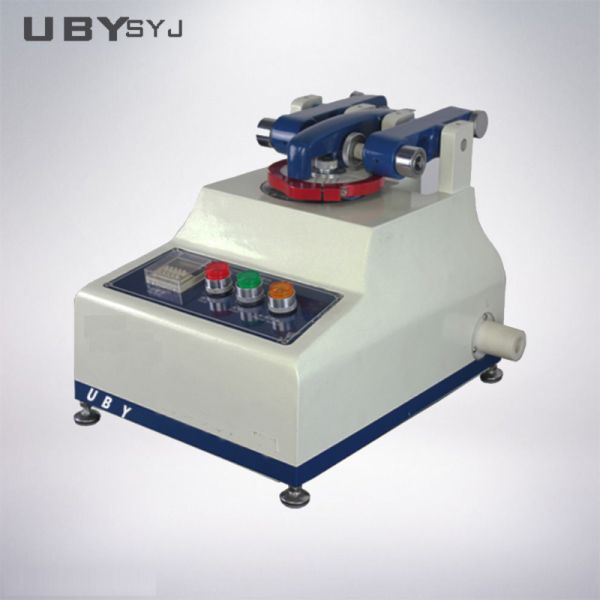

UP-1001 Fabric Rotary Abrasion Tester Taber Abrasion Machine for Textile Material

This machine is designed for determining the resistance of textile products to abrasion. The specimen fixed to the cone rubs against the sand paper at a given load. This rub is conducted along the generatrix of the cone continuously and hence the friction effect is produced in the tangential direction.

Compliance Standards

DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-D1044, D3884, ISO-5470, QB/T2726-2005

Technical Specifications
Test Piece Outside diameter 108mm, inside diameter 8mm
Load 250g, 500g, 1000g
Counter Electronic display 6 digits, automatic shutdown
Test Plate Speed 60, 70 rpm or specified
Dimension 30x43x30cm
Weight 30Kg
Standard Delivery Grinding wheel 1 set, 1 set of sand paper
Grinding Wheel H18
Power Supply AC220V/50Hz
Product Images
UP-1001 Fabric Rotary Abrasion Tester Machine , Taber Abrasion Machine For Textile Material UP-1001 Fabric Rotary Abrasion Tester Machine , Taber Abrasion Machine For Textile Material UP-1001 Fabric Rotary Abrasion Tester Machine , Taber Abrasion Machine For Textile Material
Our Service Process
  • Customer Inquiry: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing.
  • Specifications Customization: Creating technical drawings and reference photos for custom requirements, confirming final solutions and pricing.
  • Production and Delivery: Manufacturing according to confirmed requirements, providing production updates, conducting calibration, and arranging shipment.
  • Installation and After-Sales: Providing installation support and comprehensive after-sales service.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment. Urgent orders receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the machine.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
