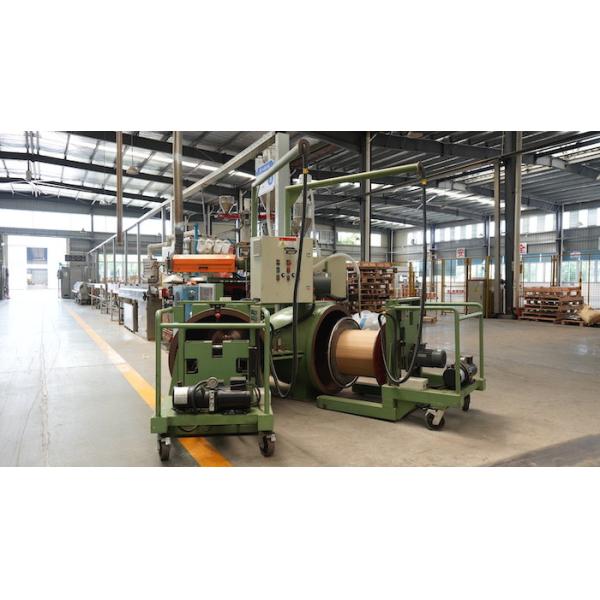

High Speed Wire Extrusion Machine 1500m/min for PVC and TPE Materials with 1.2mm-5mm Finished Outer Diameter
High Speed Wire Extrusion Machine 1500m/min for PVC and TPE Materials with 1.2mm-5mm Finished Outer Diameter
Specifications
Double-reel semi-automatic take-up :
Max1000m/min
Keyword :
Extrusion Production Line
Application :
extrusion of PVC and TPE materials
Finished outer diameter :
φ1.2mm-φ5mm
Double-head coiling machine :
Max1000m/min
Design speed :
1500m/min
Name :
Automotive Wire High Speed Extrusion Production Line
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Applicable conductor :
0.22mm²--6mm²
Description
High Speed Wire Extrusion Machine 1500m/Min 1.2mm-5mm Finished Outer Diameter
Automotive Wire High Speed Extrusion Production Line
This high-speed extrusion production line is designed for automotive wire manufacturing, achieving speeds up to 1500m/min with finished outer diameters ranging from φ1.2mm to φ5mm.
Application Specifications
  • Suitable conductor: 0.22mm² - 6mm²
  • Finished outer diameter: φ1.2mm - φ5mm
  • Line speed: KPS take-up Max 1500m/min
  • Double-head coiling machine: Max 1000m/min
  • Double-reel semi-automatic take-up: Max 1000m/min
The production line is suitable for single-color, single-color strip, double-color strip, and full-cover extrusion of thermoplastic insulation materials including PVC, PP, PE, XLPE, and low-smoke halogen-free compounds. It meets German, Japanese, Korean, Italian and other automotive wire insulation extrusion standards.
This automated production line is specifically designed for wire and cable manufacturing, enabling continuous insulation coating of metal conductors (copper/aluminum). The winding and packaging can be matched with KPS cone-shaped reel fully automatic wire take-up machines, double-head coiling machines, double-reel semi-automatic wire take-up machines, and other configurations.
Technical Specifications
Screw specification (mm) Φ50 Φ70 Φ80 Φ90 Φ100 Φ120 Φ150
Maximum screw speed (rpm) 120 120 110 90 80 70 60
PVC output (kg/h) 100 180 280 360 430 500 800
PE output (kg/h) 50 90 140 180 200 280 400
PP output (kg/h) 40 90 110 140 - - -
Drive power (kW AC) 22 45 55 75 90 132 160
Barrel temperature zones 4 4 5 5 6 7 8
Aspect ratio (L/D): (24-26):1
Screw specification (mm) φ35 φ40 φ50 φ65
Mechanical type Reclining/horizontal Reclining/horizontal Horizontal Horizontal
Maximum screw speed (rpm) 60/120 60/120 120 110
PVC output (kg/h) 20/30 20/35 100 160
PE output (kg/h) 10/25 14/30 50 75
PP output (kg/h) 14/25 16/30 40 80
Drive power (kW AC) 5.5/11 5.5/15 22 45
Barrel temperature zones 3 3 4 4
