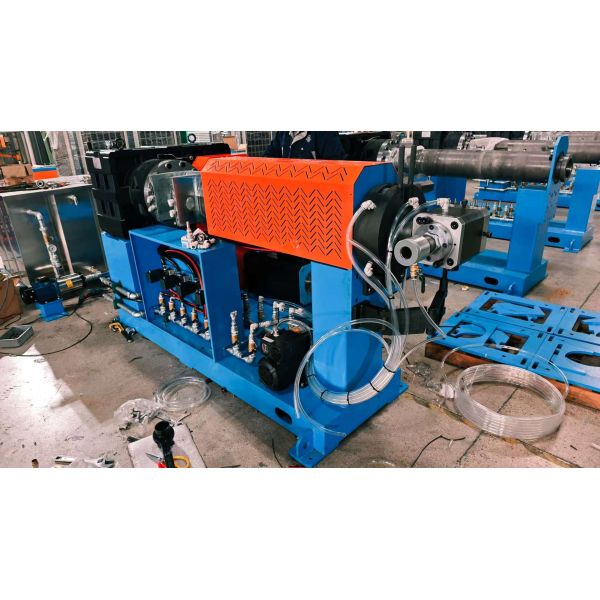

Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
Specifications
Screw Material :
38CrMoAlA Alloy Steel
Feeding System :
Cold Strip Feeding + Active Roller Forced Feeding
Screw Diameter :
φ50mm/φ65mm/φ70mm/φ90mm/φ120mm
Cooling System :
Bottom Inlet / Top Outlet Water Cooling
Place of Origin :
China
Keyword :
Wire Extrusion Machine
L/D Ratio :
12:1
Screw Surface Treatment :
Nitriding Treatment + Hard Chrome Plating
Payment Terms :
L/C,D/A,D/P,T/T
Brand Name :
Kunbo
Name :
Silicone Rubber Extrusion Machine with AC Variable Frequency Drive, 38CrMoAlA Alloy Steel Screw and Barrel, and Precision Ground Gearbox
MOQ :
1
Screw Speed :
Max. 50 rpm
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Gear Cooling System :
Built-in Water Cooling Pipeline/Built-in Water Circulation Cooling
Description
Silicone Extrusion Main Machine
Machine Overview

The Silicone Rubber Extrusion Machine is specially engineered for continuous extrusion of silicone rubber materials, widely utilized for manufacturing silicone tubes, wires, sealing strips, and various profiles.

  • Equipped with AC variable frequency drive for precise speed control
  • Precision ground gearbox for smooth operation
  • 38CrMoAlA alloy steel screw and barrel with nitriding treatment for exceptional wear resistance
  • Cold strip feeding system with active roller forced feeding
  • Circulating water cooling system for accurate temperature control
  • Available in multiple screw diameters to meet diverse production requirements
Technical Specifications
Model φ50 Silicone Rubber Extrusion Machine φ65 Silicone Rubber Extrusion Machine φ70 Silicone Rubber Extrusion Machine φ90 Silicone Rubber Extrusion Machine φ120 Silicone Rubber Extrusion Machine
Motor Power 11kW AC Variable Frequency Motor 15kW AC Variable Frequency Motor 18.5kW AC Variable Frequency Motor 22kW AC Variable Frequency Motor 37kW AC Variable Frequency Motor
Screw Speed Max. 50 rpm Max. 50 rpm Max. 50 rpm Max. 50 rpm Max. 50 rpm
Gear Reduction Box ZLYJ173 Precision Ground Gear Reducer ZLYJ173 Precision Ground Gear Reducer ZLYJ173 Precision Ground Gear Reducer ZLYJ200 Precision Ground Gear Reducer ZLYJ250 Precision Ground Gear Reducer
Gear Lubrication System Splash Self-Lubrication System Splash Self-Lubrication System Splash Self-Lubrication System Splash Self-Lubrication System Splash Self-Lubrication System
Gear Cooling System Built-in Water Cooling Pipeline Built-in Water Circulation Cooling Built-in Water Circulation Cooling Built-in Water Circulation Cooling Built-in Water Cooling Pipeline
Screw Material 38CrMoAlA Alloy Steel 38CrMoAlA Alloy Steel 38CrMoAlA Alloy Steel 38CrMoAlA Alloy Steel 38CrMoAlA Alloy Steel
Screw Diameter φ50mm φ65mm φ70mm φ90mm φ120mm
L/D Ratio 12:1 12:1 12:1 12:1 12:1
Screw Surface Treatment Nitriding Treatment + Hard Chrome Plating Nitriding Treatment + Hard Chrome Plating Nitriding Treatment + Hard Chrome Plating Nitriding Treatment + Hard Chrome Plating Nitriding Treatment + Hard Chrome Plating
Barrel Material 38CrMoAlA Alloy Steel 38CrMoAlA Alloy Steel 38CrMoAlA Alloy Steel 38CrMoAlA Alloy Steel 38CrMoAlA Alloy Steel
Barrel Treatment Inner Bore Nitriding Treatment Inner Bore Nitriding Treatment Inner Bore Nitriding Treatment Inner Bore Nitriding Treatment Inner Bore Nitriding Treatment
Cooling Sections Two Barrel Sections + One Screw Section Two Barrel Sections + One Screw Section Two Barrel Sections + One Screw Section Two Barrel Sections + One Screw Section Two Barrel Sections + One Screw Section
Clamp Type Two-Piece Water-Cooling Clamp Two-Piece Water-Cooling Clamp Two-Piece Water-Cooling Clamp Two-Piece Water-Cooling Clamp Two-Piece Water-Cooling Clamp
