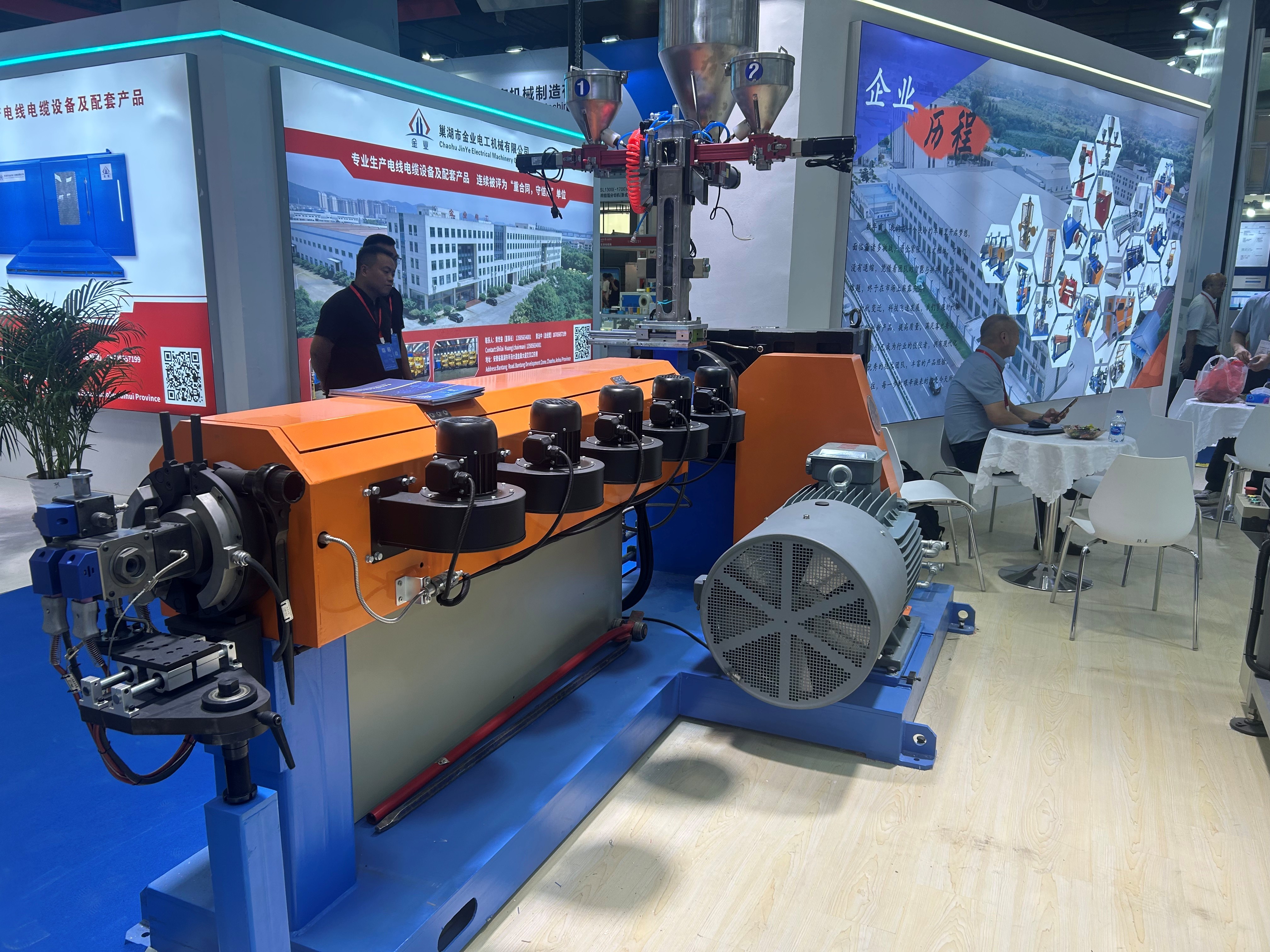

Nylon Extruder Main Machine with Precision Grinding Gear Reducer Nitrided Screw and Real-Time Pressure Monitoring for Wire Extrusion
Nylon Extruder Main Machine with Precision Grinding Gear Reducer Nitrided Screw and Real-Time Pressure Monitoring for Wire Extrusion
Specifications
Screw Material :
38CrMoAlA
Clamp Type :
Two-piece die clamp with built-in stainless steel heating rod
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Screw Diameter :
Φ40/45/50mm
Approx. Total Power :
18.94 kW/21.32 kW
Keyword :
Wire Extrusion Machine
Place of Origin :
China
L/D Ratio :
25:1
Barrel Material :
38CrMoAlA
Name :
Nylon Extruder Main Machine
Brand Name :
Kunbo
Motor Power :
11 kW AC Variable Frequency Motor
MOQ :
1
Maximum Screw Speed :
Max. 50 rpm
Payment Terms :
L/C,D/A,D/P,T/T
Description
Nylon Extruder Main Machine

The Nylon Extruder Main Machine is specially engineered for high-quality nylon wire and cable extrusion applications. Designed to process various nylon materials, this machine delivers stable extrusion performance, precise temperature control, and exceptional product consistency.

Key features include:

  • High-performance AC variable frequency motor
  • Precision grinding gear reducer
  • Nitrided and hard chrome-plated screw
  • Optimized cooling system
  • Pressure sensor system with real-time monitoring
  • Overload protection for screw and barrel

Available in 40mm, 45mm, and 50mm screw diameter configurations to accommodate diverse production requirements—from small-diameter precision wire extrusion to higher-capacity nylon extrusion applications.

Technical Specifications
Model 40 Nylon Extruder Main Machine 45 Extruder Main Machine (YCG450N) 50 Nylon Extruder Main Machine (YCG500N)
Application Nylon wire extrusion Nylon wire extrusion Nylon wire extrusion
Motor Power 11 kW AC Variable Frequency Motor 11 kW AC Variable Frequency Motor 11 kW AC Variable Frequency Motor
Maximum Screw Speed Max. 50 rpm Max. 50 rpm Max. 50 rpm
Gear Reducer ZLYJ146 precision grinding gear reducer ZLYJ146 precision grinding gear reducer ZLYJ146 precision grinding gear reducer
Gear Lubrication Splash self-lubrication Oil pump circulating lubrication Oil pump circulating lubrication
Gear Cooling Built-in cooling pipe, water cooling Built-in cooling pipe, water cooling Built-in cooling pipe, water cooling
Screw Material 38CrMoAlA 38CrMoAlA 38CrMoAlA
Screw Diameter Φ40 mm Φ45 mm Φ50 mm
L/D Ratio 25:1 25:1 25:1
Screw Treatment Nitriding treatment + hard chrome plating Nitriding treatment + hard chrome plating Nitriding treatment + hard chrome plating
Barrel Material 38CrMoAlA 38CrMoAlA 38CrMoAlA
Barrel Treatment Inner hole nitriding treatment Inner hole nitriding treatment Inner hole nitriding treatment
Barrel Heating 3 heating zones, 2.2 kW/zone 4 heating zones, 2.2 kW/zone 4 heating zones, 2.2 kW/zone
Cooling System 3 high-pressure centrifugal fans + water cooling at feeding section 4 high-pressure centrifugal fans + water cooling at feeding section 4 high-pressure centrifugal fans + water cooling at feeding section
Clamp Type Two-piece die clamp with built-in stainless steel heating rod Two-piece die clamp with built-in stainless steel heating rod Two-piece die clamp with built-in stainless steel heating rod
Pressure Control Real-time pressure monitoring + overpressure protection Real-time pressure monitoring + overpressure protection Real-time pressure monitoring + overpressure protection
Approx. Total Power 18.94 kW 21.32 kW 21.32 kW
