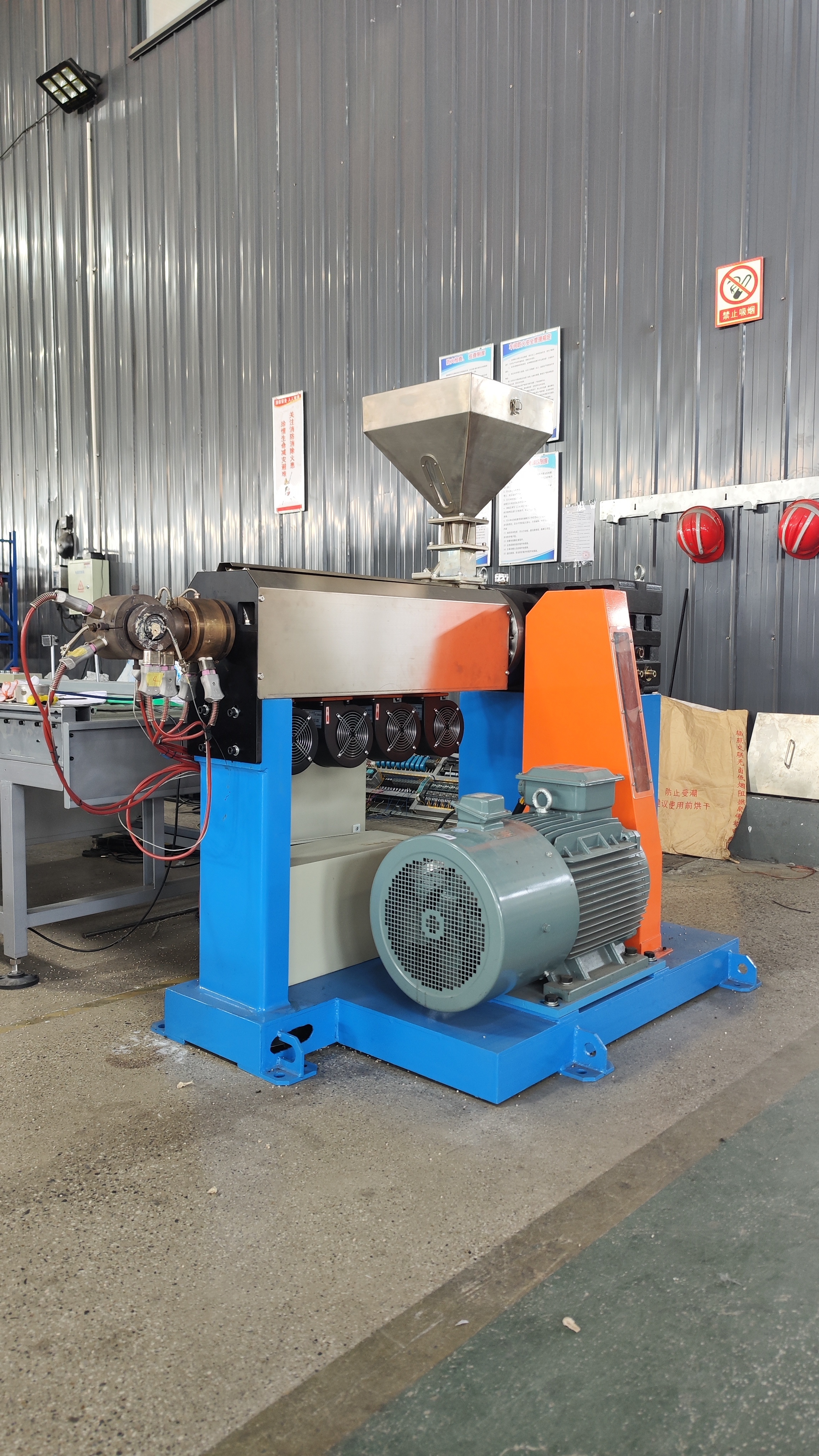

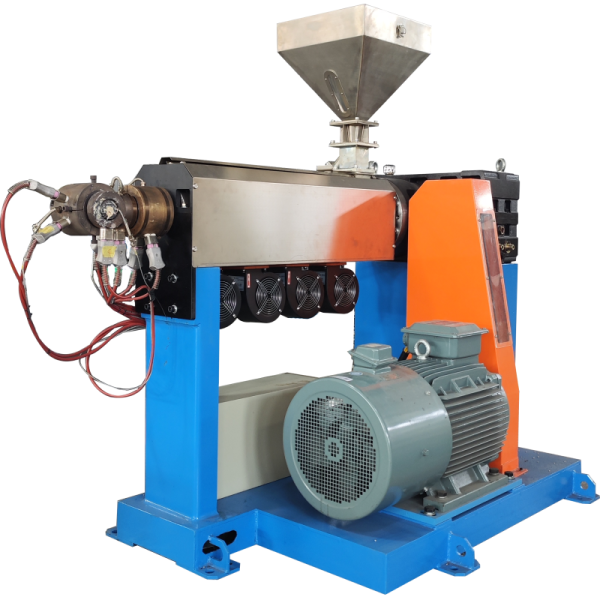

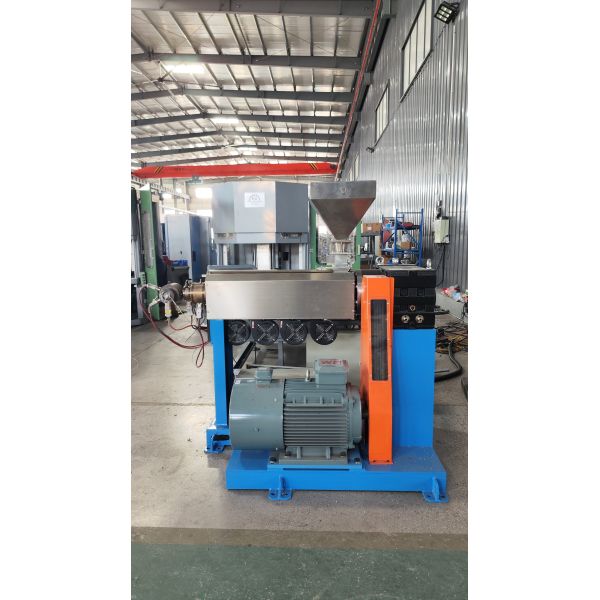

PEEK Extrusion Main Machine with High-Temperature Resistance Precise Temperature Control and Stable Operation for Wire Extrusion
PEEK Extrusion Main Machine with High-Temperature Resistance Precise Temperature Control and Stable Operation for Wire Extrusion
PEEK Extrusion Main Machine with High-Temperature Resistance Precise Temperature Control and Stable Operation for Wire Extrusion
PEEK Extrusion Main Machine with High-Temperature Resistance Precise Temperature Control and Stable Operation for Wire Extrusion
PEEK Extrusion Main Machine with High-Temperature Resistance Precise Temperature Control and Stable Operation for Wire Extrusion
PEEK Extrusion Main Machine with High-Temperature Resistance Precise Temperature Control and Stable Operation for Wire Extrusion
Specifications
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Screw Material :
SKD61/SKT61
Total Power :
Approx. 23.04kW/Approx. 32.02kW
Screw Diameter :
φ30mm/φ50mm
Place of Origin :
China
Keyword :
Wire Extrusion Machine
Barrel Material :
SKD61/SKT61
L/D Ratio :
12:1/20:1
Brand Name :
Kunbo
Name :
PEEK Extrusion Main Machine with High-Temperature Resistance Precise Temperature Control and Stable Operation for Wire Extrusion
MOQ :
1
Motor Power :
15kW/18.5kW AC Variable Frequency Motor
Payment Terms :
L/C,D/A,D/P,T/T
Screw Speed :
Max. 45 rpm
Description
PEEK Extrusion Main Machine
Product Overview

The PEEK Extrusion Main Machine is specially engineered for high-performance engineering plastic extrusion applications. This advanced system delivers exceptional high-temperature resistance, precise temperature control, stable operation, and excellent extrusion consistency for demanding manufacturing environments.

Available in φ30mm and φ50mm models, both equipped with AC variable frequency motors and precision gear reducers to ensure reliable power transmission and continuous operation.
Key Features
  • High-quality alloy steel screws and barrels with nitriding treatment
  • Nano surface coating for superior wear resistance and extended service life
  • Multi-zone heating and efficient cooling systems
  • Real-time pressure monitoring with over-pressure protection
  • Precise extrusion performance for various thermoplastic materials
Technical Specifications
Model φ30mm Precision Extrusion Main Machine φ50mm High Output Extrusion Main Machine
Motor Power 15kW AC Variable Frequency Motor 18.5kW AC Variable Frequency Motor
Screw Speed Max. 45 rpm Max. 45 rpm
Gear Reduction Box Precision Ground Gear Reducer ZLYJ146 Precision Ground Gear Reducer ZLYJ173
Gear Lubrication Splash Self-Lubrication System Forced Circulation Lubrication System with Built-in Oil Pump
Screw Material SKD61 SKT61
Screw Diameter φ30mm φ50mm
L/D Ratio 12:1 20:1
Barrel Material SKD61 SKT61
Total Power Approx. 23.04kW Approx. 32.02kW
Suitable Materials PVC, PE, TPU, TPE, LSZH, Silicone, etc. PVC, PE, XLPE, TPU, TPE, LSZH, Silicone, etc.
