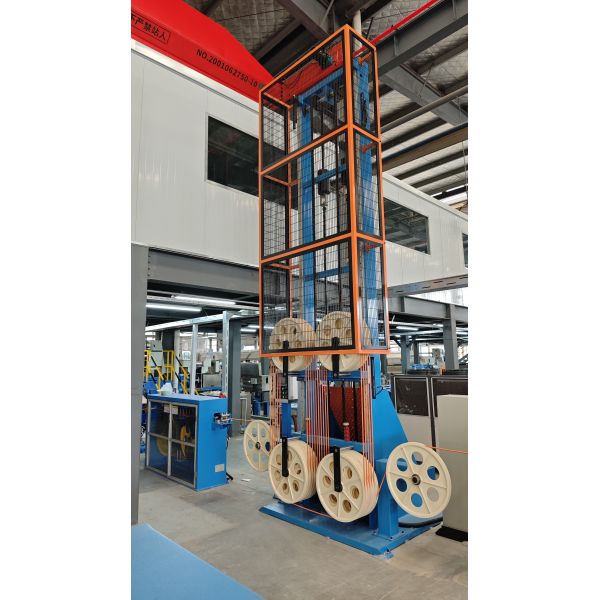

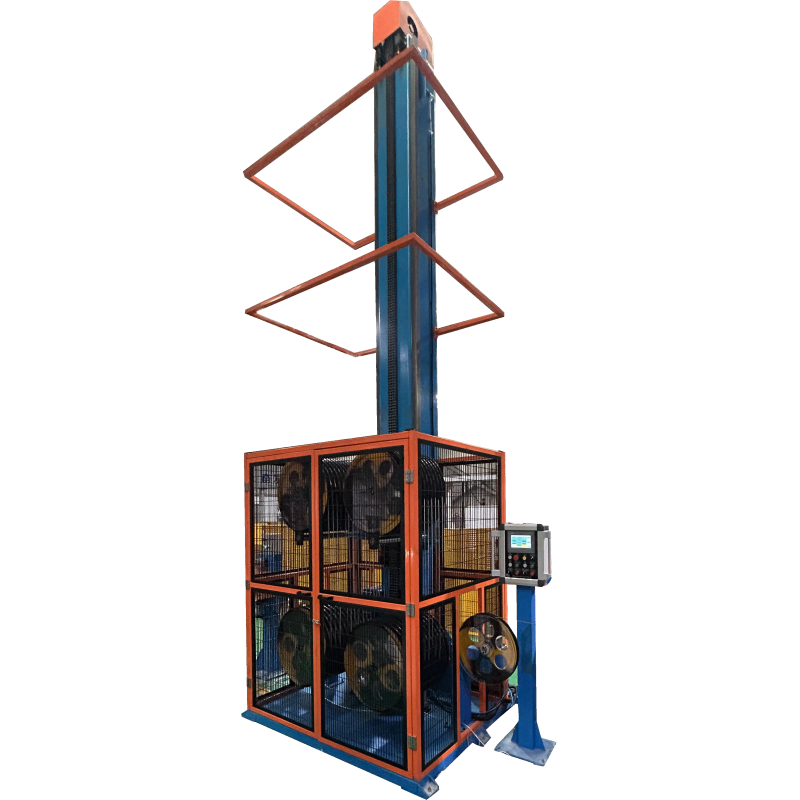

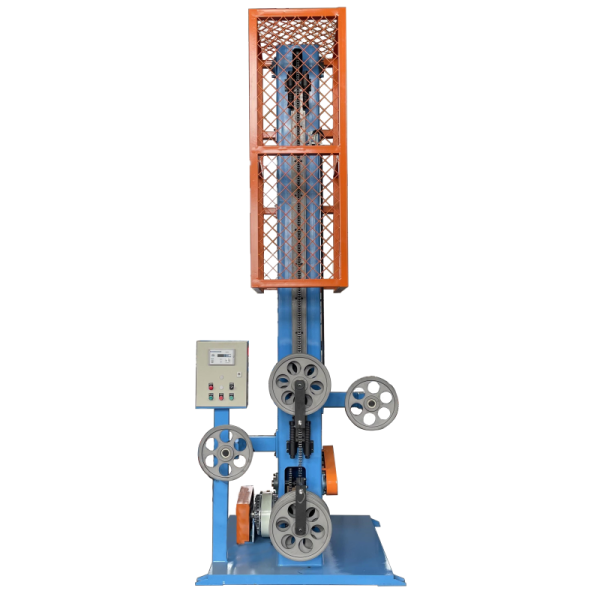

Vertical Heavy-duty Wire Accumulator with 50-185m Accumulation Length and 15-200N Tension Range
Vertical Heavy-duty Wire Accumulator with 50-185m Accumulation Length and 15-200N Tension Range
Vertical Heavy-duty Wire Accumulator with 50-185m Accumulation Length and 15-200N Tension Range
Vertical Heavy-duty Wire Accumulator with 50-185m Accumulation Length and 15-200N Tension Range
Vertical Heavy-duty Wire Accumulator with 50-185m Accumulation Length and 15-200N Tension Range
Vertical Heavy-duty Wire Accumulator with 50-185m Accumulation Length and 15-200N Tension Range
Specifications
Place of Origin :
China
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Applicable Wire Diameter :
Φ5-25 mm Flexible Wire
Effective Wire Storage Length :
160m/70m/85m
Drive Motor :
2.2 kW Inovance Servo Motor/5.5 kW DC Motor
Guide Wheel Diameter :
Φ500 mm/Φ650 mm, U-shape
Brand Name :
Kunbo
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Name :
Vertical Heavy-duty Wire Accumulator
Keyword :
Wire Accumulator
Description
Vertical Heavy-duty Wire Accumulator
The Vertical Heavy-duty Wire Accumulator is engineered for wire and cable extrusion lines to deliver continuous wire storage, tension buffering, and stable line operation during production and reel change processes. Featuring a vertical double-row structure with servo/DC motor drive, encoder position feedback, and chain transmission system, this accumulator ensures smooth movement of the dancer wheel group and precise wire storage control. Ideal for medium and large diameter flexible wire applications requiring stable tension and uninterrupted production.
Key Features
  • Vertical double-row structure for optimal space utilization
  • Servo/DC motor drive with encoder position feedback
  • Chain transmission system for smooth operation
  • Comprehensive safety protection systems
  • Storage level monitoring with changeover and alarm positions
  • Suitable for medium and large diameter flexible wires
Technical Specifications
Model 6m Vertical Heavy-duty Wire Accumulator 5.5m Vertical Heavy-duty Wire Accumulator 5m Vertical Heavy-duty Wire Accumulator
Structure Type 6 m Heavy-duty Vertical, Double-row 5.5 m Heavy-duty Vertical, Double-row 5 m Heavy-duty Vertical, Double-row
Applicable Wire Diameter Φ5-25 mm Flexible Wire Φ5-25 mm Flexible Wire Φ5-25 mm Flexible Wire
Guide Wheel Diameter Φ500 mm, U-shape Φ650 mm, U-shape Φ650 mm, U-shape
Wheel Group Configuration 10+11 Wheels, 2 Double-row Groups 5+6 Wheels, 2 Groups 7+8 Wheels, 2 Groups
Effective Wire Storage Length 160 m 70 m 85 m
Drive Motor 2.2 kW Inovance Servo Motor 5.5 kW DC Motor 5.5 kW DC Motor
Controller Servo Controller DC Controller DC Controller
Transmission System Motor + Gear Reducer + Double-row Chain Drive Motor + Gear Reducer + Double-row Chain Drive Motor + Gear Reducer + Double-row Chain Drive
Position Feedback System Absolute Encoder Position Feedback Absolute Encoder Position Feedback Absolute Encoder Position Feedback
Safety Protection Limit Switches at Both Ends, Emergency Stop for Wire Break Detection Limit Switches at Both Ends, Emergency Stop for Wire Break Detection Limit Switches at Both Ends, Emergency Stop for Wire Break Detection
Storage Level Monitoring 70% Changeover Position, 95% Alarm Position 70% Changeover Position, 95% Alarm Position 70% Changeover Position, 95% Alarm Position
Safety Guard Safety Fence Around Moving Wheel Assembly Safety Fence Around Moving Wheel Assembly Safety Fence Around Moving Wheel Assembly
