Precision Horizontal Wire Accumulator with Linear Rail Structure, Magnetic Powder Clutch Tension Control, and Absolute Encoder Feedback
Precision Horizontal Wire Accumulator with Linear Rail Structure, Magnetic Powder Clutch Tension Control, and Absolute Encoder Feedback
Precision Horizontal Wire Accumulator with Linear Rail Structure, Magnetic Powder Clutch Tension Control, and Absolute Encoder Feedback
Precision Horizontal Wire Accumulator with Linear Rail Structure, Magnetic Powder Clutch Tension Control, and Absolute Encoder Feedback
Precision Horizontal Wire Accumulator with Linear Rail Structure, Magnetic Powder Clutch Tension Control, and Absolute Encoder Feedback
Precision Horizontal Wire Accumulator with Linear Rail Structure, Magnetic Powder Clutch Tension Control, and Absolute Encoder Feedback
Specifications
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Guide Wheel Diameter :
Φ200 mm, U-shape
Tension Control System :
2 HP Motor + 10 kg Magnetic Powder Clutch
Wheel Group Configuration :
12+13 Wheels
Place of Origin :
China
Keyword :
Wire Accumulator
Effective Wire Storage Length :
200 m/300 m/350 m/500 m
Rail Structure :
Precision Linear Rail
MOQ :
1
Structure Type :
12 m/ 16m/ 18m/ 24m Horizontal Type
Payment Terms :
L/C,D/A,D/P,T/T
Applicable Wire Diameter :
Max. 6 mm
Brand Name :
Kunbo
Name :
Precision Horizontal Wire Accumulator
Description
Precision Horizontal Wire Accumulator

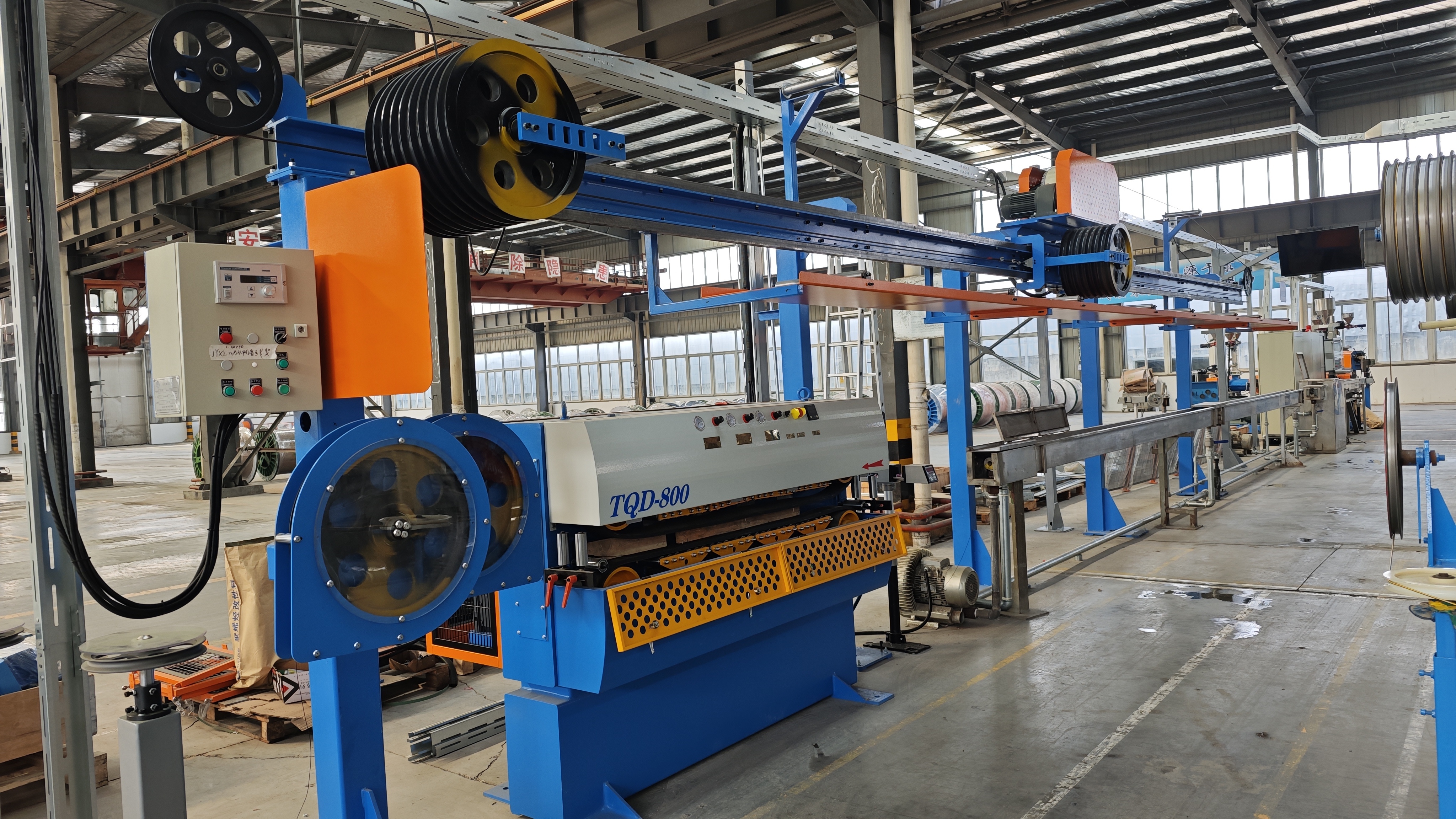

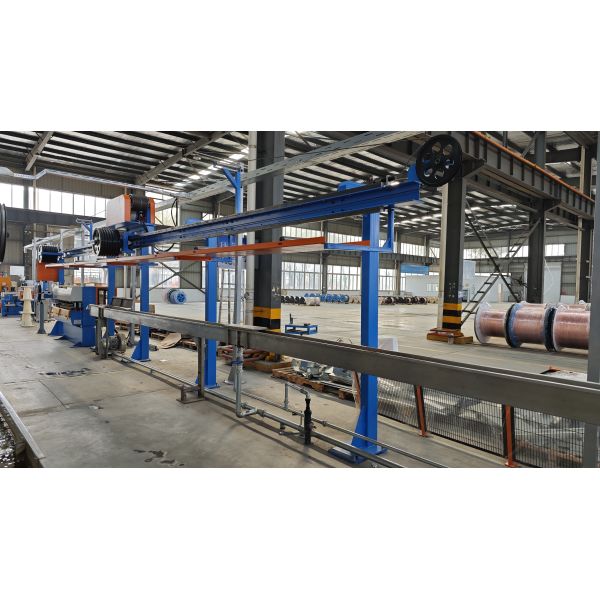

The Precision Horizontal Wire Accumulator is engineered for high-precision wire extrusion lines to deliver stable wire buffering, accurate tension control, and smooth continuous operation. Featuring a precision linear rail structure, U-shaped guide wheels, magnetic powder clutch tension control, and absolute encoder position feedback system, this accumulator ensures precise storage movement and consistent wire tension. Ideal for small diameter wire production requiring extended storage capacity and superior running stability.
Technical Specifications Comparison
Specification 12m Precision Horizontal Accumulator 16m Precision Horizontal Accumulator 18m Precision Horizontal Accumulator (Bakelite Wheel) 18m Precision Horizontal Accumulator (Aluminum Wheel) 24m Precision Horizontal Accumulator
Structure Type 12 m Horizontal Type 16 m Horizontal Type 18 m Horizontal Type 18 m Horizontal Type 24 m Horizontal Type
Applicable Wire Diameter Max. 6 mm Max. 6 mm Max. 6 mm Max. 6 mm Max. 6 mm
Guide Wheel Diameter Φ200 mm, U-shape Φ200 mm, U-shape Φ200 mm, U-shape Φ200 mm, U-shape Φ200 mm, U-shape
Guide Wheel Material Alloy Aluminum with Surface Hardening Treatment Alloy Aluminum with Surface Hardening Treatment Bakelite Wheel Alloy Aluminum with Surface Hardening Treatment Alloy Aluminum with Surface Hardening Treatment
Wheel Group Configuration 12+13 Wheels 12+13 Wheels 12+13 Wheels 12+13 Wheels 12+13 Wheels
Effective Wire Storage Length 200 m 300 m 350 m 350 m 500 m
Rail Structure Precision Linear Rail Precision Linear Rail Precision Linear Rail Precision Linear Rail Precision Linear Rail
Tension Control System 2 HP Motor + 10 kg Magnetic Powder Clutch 2 HP Motor + 10 kg Magnetic Powder Clutch 2 HP Motor + 10 kg Magnetic Powder Clutch 2 HP Motor + 10 kg Magnetic Powder Clutch 2 HP Motor + 10 kg Magnetic Powder Clutch
Tension Range ≤500 N ≤500 N ≤500 N ≤500 N ≤500 N
Position Feedback System Absolute Encoder Position Feedback Absolute Encoder Position Feedback Absolute Encoder Position Feedback Absolute Encoder Position Feedback Absolute Encoder Position Feedback
Safety Protection Limit Switches + Wire Break Emergency Stop Control Limit Switches + Wire Break Emergency Stop Control Limit Switches + Wire Break Emergency Stop Control Limit Switches + Wire Break Emergency Stop Control Limit Switches + Wire Break Emergency Stop Control
Safety Structure Bottom Support Tray Bottom Support Tray Bottom Support Tray Bottom Support Tray Bottom Support Tray
