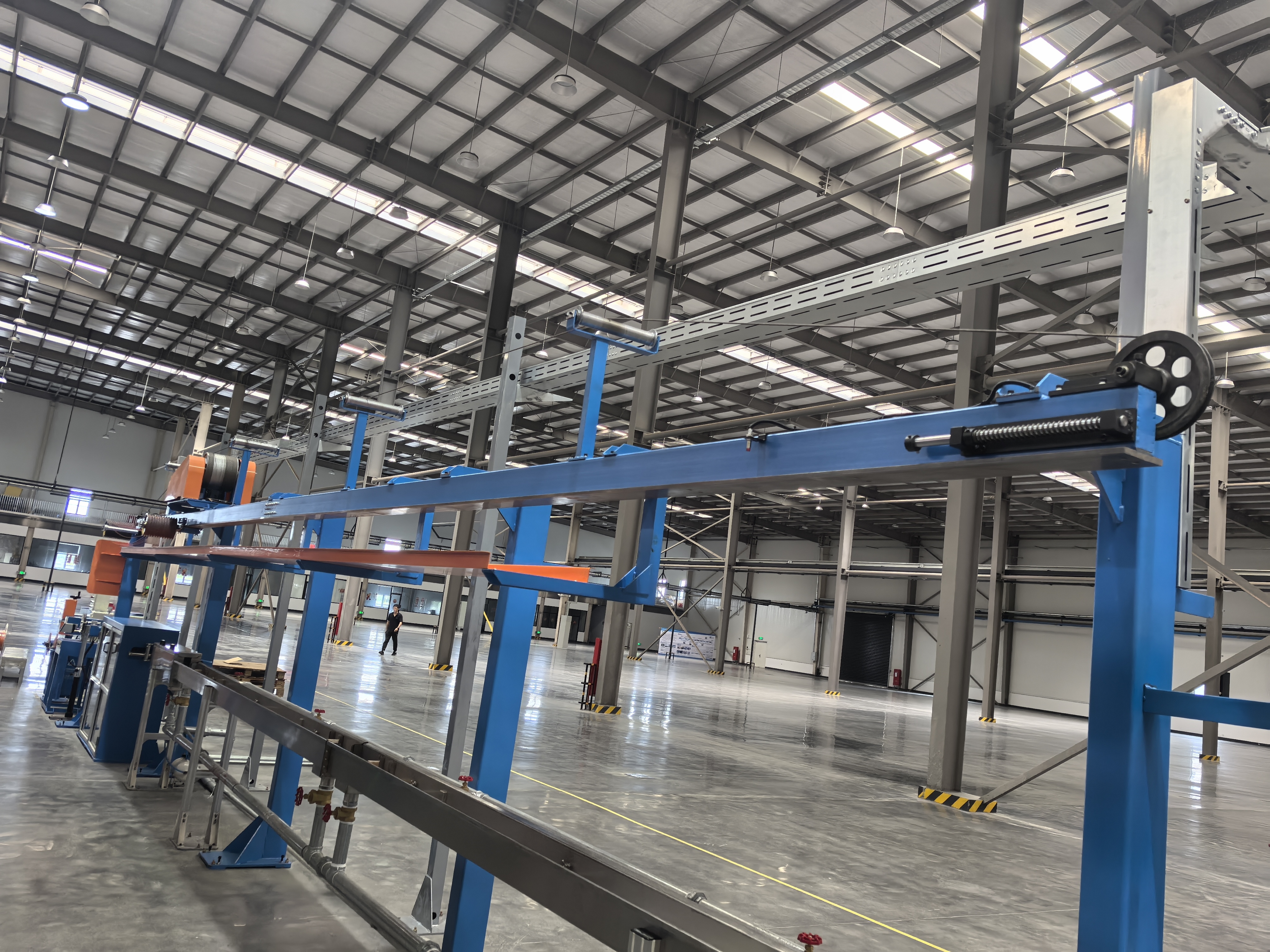

12m Medium-Duty Horizontal Wire Accumulator for Cable Extrusion Lines
12m Medium-Duty Horizontal Wire Accumulator for Cable Extrusion Lines
12m Medium-Duty Horizontal Wire Accumulator for Cable Extrusion Lines
12m Medium-Duty Horizontal Wire Accumulator for Cable Extrusion Lines
12m Medium-Duty Horizontal Wire Accumulator for Cable Extrusion Lines
12m Medium-Duty Horizontal Wire Accumulator for Cable Extrusion Lines
Specifications
Guide Wheel Shape :
U-shape
Tension Control System :
2 HP Motor + 20 kg Magnetic Powder Clutch
Guide Wheel Material :
Alloy Aluminum with Surface Hardening Treatment
Tension Range :
≤500 N
Place of Origin :
China
Keyword :
Wire Accumulator
Wheel Group Configuration :
12+13 Wheels/11+12 Wheels/9+10 Wheels/9+10 Wheels/7+8 Wheels/8+9 Wheels
Effective Wire Storage Length :
205 m/190 m/160 m/130 m/136 m
Brand Name :
Kunbo
Name :
12m Horizontal Medium-duty Wire Accumulator
MOQ :
1
Applicable Wire Diameter :
Max. 8mm/12mm/15mm/20mm/25mm
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Guide Wheel Diameter :
Φ250 mm/Φ300 mm/Φ350 mm/Φ400 mm/Φ500 mm
Description
12 m Horizontal Medium-duty Wire Accumulator

The 12m Medium-Duty Horizontal Wire Accumulator is designed to provide temporary wire storage and stable tension control in wire and cable extrusion lines. It helps maintain continuous production during reel changes, speed synchronization and other line transitions.

This model accommodates wire and cable diameters from 8mm to 25 mm and provides an effective accumulation capacity of approximately from 130m to 300 m. Its horizontal design, hardened aluminum guide wheels, encoder-based linkage system and synchronized safety controls support stable integration with upstream and downstream equipment.

Technical Specifications
ModelCXP12250CDLC20CXP12300BCLC20CXP12350BCLC20CXP124009AAC20CXP124009ALC20CXP1250089LC20CXP1250089LC40
Structure Type12 m Horizontal Type12 m Horizontal Type12 m Horizontal Type12 m Horizontal Type12 m Horizontal Type12 m Horizontal Type12 m Horizontal Type
Applicable Wire DiameterMax. 8 mmMax. 12 mmMax. 15 mmMax. 20 mmMax. 20 mmMax. 25 mmMax. 25 mm
Guide Wheel DiameterΦ250 mmΦ300 mmΦ350 mmΦ400 mmΦ400 mmΦ500 mmΦ500 mm
Guide Wheel ShapeU-shapeU-shapeU-shapeU-shapeU-shapeU-shapeU-shape
Guide Wheel MaterialAlloy Aluminum with Surface Hardening TreatmentAlloy Aluminum with Surface Hardening TreatmentAlloy Aluminum with Surface Hardening TreatmentAlloy Aluminum with Surface Hardening TreatmentAlloy Aluminum with Surface Hardening TreatmentAlloy Aluminum with Surface Hardening TreatmentAlloy Aluminum with Surface Hardening Treatment
Wheel Group Configuration12+13 Wheels11+12 Wheels11+12 Wheels9+10 Wheels9+10 Wheels7+8 Wheels8+9 Wheels
Effective Wire Storage Length205 m190 m190 m160 m160 m130 m136 m
Rail StructureHigh-strength Square Steel Sliding RailHigh-strength Square Steel Sliding RailHigh-strength Square Steel Sliding RailHigh-strength Square Steel Sliding RailHigh-strength Square Steel Sliding RailHigh-strength Square Steel Sliding RailHigh-strength Square Steel Sliding Rail
Tension Control System2 HP Motor + 20 kg Magnetic Powder Clutch2 HP Motor + 20 kg Magnetic Powder Clutch2 HP Motor + 20 kg Magnetic Powder Clutch2 HP Motor + 20 kg Magnetic Powder Clutch2 HP Motor + 20 kg Magnetic Powder Clutch2 HP Motor + 20 kg Magnetic Powder Clutch2 HP Motor + 40 kg Magnetic Powder Clutch
Tension Range≤500 N≤500 N≤500 N≤500 N≤500 N≤500 N≤500 N
Linkage SystemAbsolute Encoder Absolute Encoder Absolute Encoder Absolute Encoder Absolute Encoder Absolute EncoderAbsolute Encoder
Safety devicesLimit Switches + Wire Break Emergency StopLimit Switches + Wire Break Emergency StopLimit Switches + Wire Break Emergency StopLimit Switches + Wire Break Emergency StopLimit Switches + Wire Break Emergency StopLimit Switches + Wire Break Emergency StopLimit Switches + Wire Break Emergency Stop
Safety ProtectionProtective tray beneath the accumulator wheelsProtective tray beneath the accumulator wheelsProtective tray beneath the accumulator wheelsProtective tray beneath the accumulator wheelsProtective tray beneath the accumulator wheelsProtective tray beneath the accumulator wheelsProtective tray beneath the accumulator wheels
