Heavy-duty Horizontal Wire Accumulator with 12m Storage Length and Servo Drive Control for Stable Production
Heavy-duty Horizontal Wire Accumulator with 12m Storage Length and Servo Drive Control for Stable Production
Heavy-duty Horizontal Wire Accumulator with 12m Storage Length and Servo Drive Control for Stable Production
Heavy-duty Horizontal Wire Accumulator with 12m Storage Length and Servo Drive Control for Stable Production
Heavy-duty Horizontal Wire Accumulator with 12m Storage Length and Servo Drive Control for Stable Production
Heavy-duty Horizontal Wire Accumulator with 12m Storage Length and Servo Drive Control for Stable Production
Specifications
Guide Wheel Material :
Alloy Aluminum with Surface Hardening Treatment
Touch Screen :
7.0 inch HMI
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Wheel Group Configuration :
8+9 Wheels/7+8 Wheels
Transmission System :
Motor + Gear Reducer + Double-row Chain Drive
Keyword :
Wire Accumulator
Place of Origin :
China
Drive Motor :
11 kW Inovance Servo Motor
PLC System :
SIMATIC S7-1200 PLC
Applicable Wire Diameter :
Φ6-28 mm Flexible Wire
MOQ :
1
Guide Wheel Diameter :
Φ600 mm/Φ800 mm, U-shape
Payment Terms :
L/C,D/A,D/P,T/T
Name :
Horizontal Heavy-duty Wire Accumulator
Brand Name :
Kunbo
Description

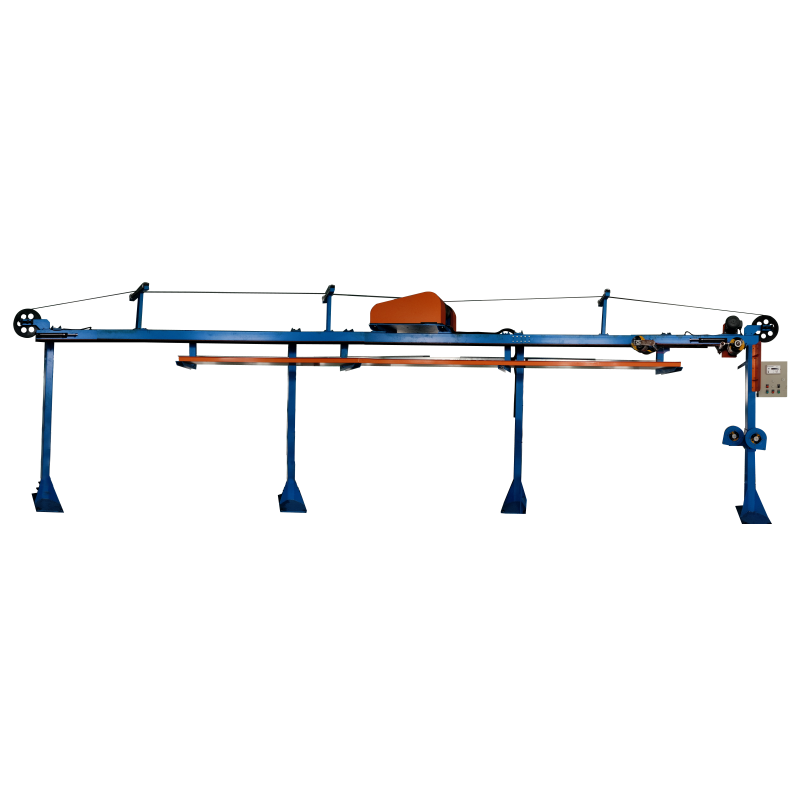

Horizontal Heavy-duty Wire Accumulator
The Horizontal Heavy-duty Wire Accumulator is designed for wire and cable extrusion lines to provide continuous wire storage, tension buffering, and stable production operation. It adopts a horizontal storage structure with servo drive control, PLC automation, encoder position feedback, and chain transmission system, ensuring smooth movement of the guide wheel assembly and accurate wire storage management. It is suitable for medium and large diameter flexible wire extrusion applications requiring high-capacity buffering and stable line synchronization.
Technical Specifications
Model 12m Heavy-duty Horizontal Accumulator (Φ600 Guide Wheel) 12m Heavy-duty Horizontal Accumulator (Φ800 Guide Wheel)
Structure Type 12 m Heavy-duty Horizontal Type 12 m Heavy-duty Horizontal Type
Applicable Wire Diameter Φ6-28 mm Flexible Wire Φ6-28 mm Flexible Wire
Guide Wheel Diameter Φ600 mm, U-shape Φ800 mm, U-shape
Guide Wheel Material Alloy Aluminum with Surface Hardening Treatment Alloy Aluminum with Surface Hardening Treatment
Wheel Group Configuration 8+9 Wheels 7+8 Wheels
Effective Wire Storage Length 140 m 120 m
Drive Motor 11 kW Inovance Servo Motor 11 kW Inovance Servo Motor
Controller Servo Controller Servo Controller
PLC System SIMATIC S7-1200 PLC SIMATIC S7-1200 PLC
Touch Screen 7.0 inch HMI 7.0 inch HMI
Transmission System Motor + Gear Reducer + Double-row Chain Drive Motor + Gear Reducer + Double-row Chain Drive
Position Feedback System Absolute Encoder Position Feedback Absolute Encoder Position Feedback
Safety Protection Limit Switches at Both Ends, Emergency Stop Control for Wire Break Detection Limit Switches at Both Ends, Emergency Stop Control for Wire Break Detection
Storage Level Monitoring 70% Changeover Position, 95% Alarm Position 70% Changeover Position, 95% Alarm Position
Safety Structure Bottom Support Tray with Wire Handling Platform Bottom Support Tray with Wire Handling Platform
Approx. Dimensions 13000 × 2250 × 3000 mm 13000 × 2250 × 3000 mm
Approx. Machine Weight 2000 kg 2000 kg
