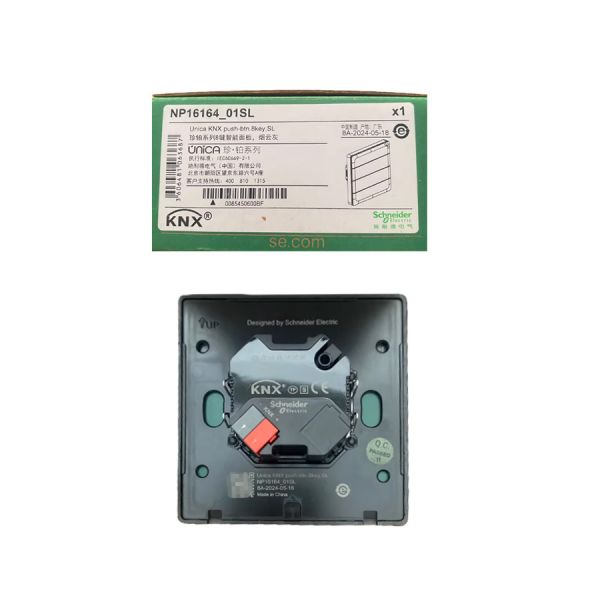

NP16164_01SL Schneider 8-Key Backlit Panel ETS5 Programmable Aluminum Alloy KNX Bus Coupling

Product Parameters​

1. Appearance & Structure​

• Buttons & Indicators: 8 programmable buttons with LED indicators​ (display device status like on/off, dimming level). Backlight turns on when hand approaches, with replaceable icons included.
• Color & Material: Three finishes (Smoke Gray, Ice Silver, Morning Gold); made of thermoplastic for modern aesthetics.

2. Hardware Configuration​

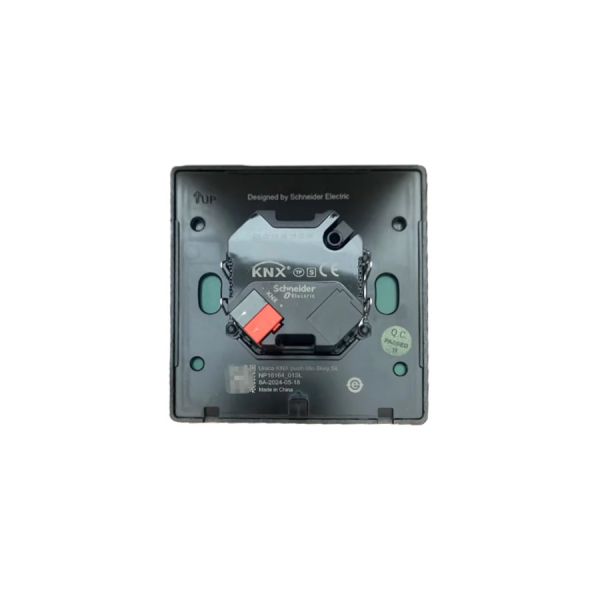

• Bus Coupling: Integrated bus coupler connects to KNX bus via single terminal​ (21-30V DC).
• Sensing Features:
  • Proximity Sensing: Activates screen/icons when hand approaches.
  • Night Mode: Reduces backlight intensity.

3. Functional Features​

• Control Functions:
  • Switch/Dimming/Shading control (single/dual-key).
  • Scene recall (e.g., "Home Mode," "Sleep Mode").
  • RGB lighting control, delay mode, lock function.
• Software Configuration:
  • Basic Mode: Preconfigured settings (for general users).
  • Advanced Mode: Custom logic (e.g., AND/OR thresholds, RGB adjustments).
• Compatibility: Supports KNX protocol and integrates with KNX sensors/actuators.

Application Scenarios​

1. Smart Homes​

• Living Room: Control lights, curtains, and HVAC systems with one-touch "Movie Mode" or "Guest Mode."
• Bedroom: Adjust bedside lamp brightness/color temperature; auto-open motorized curtains at sunrise.
• Kitchen: Auto-illuminate cabinets, link range hoods to stoves, and display refrigerator status.

2. Commercial Buildings​

• Hotel Rooms: Acts as a room control terminal for "Welcome Mode" (activate entry lights) and energy-saving profiles.
• Offices: Zonal control of workstation lights and HVAC; enable "Meeting Mode" to dim lights and start projectors.
• Shopping Malls: Optimize public area lighting/HVAC for energy efficiency.

3. Industrial Settings​

• Factories: Control production line lighting and ventilation; auto-trigger fans when temperature thresholds are exceeded.
• Warehouses: Auto-light shelves, integrate access control with lighting, and regulate humidity.
