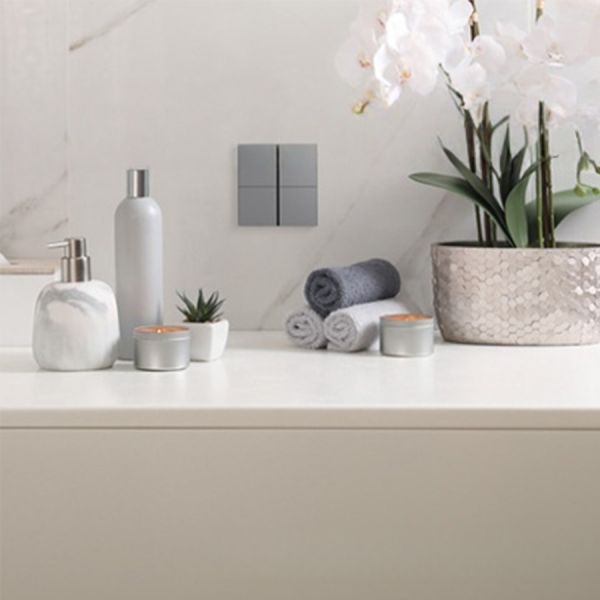

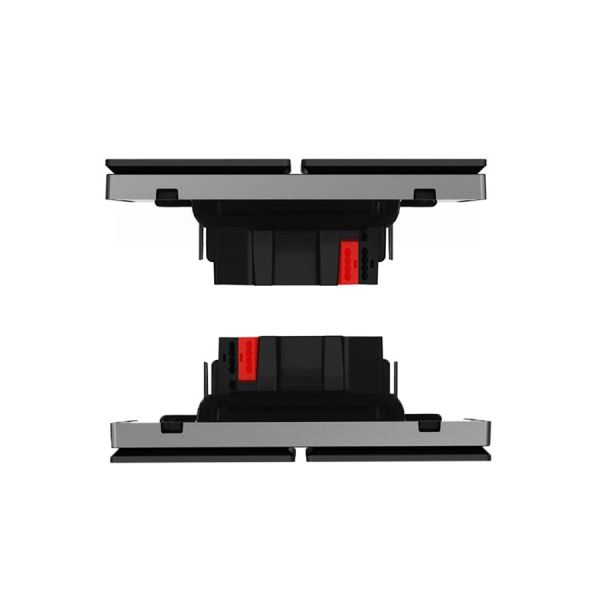

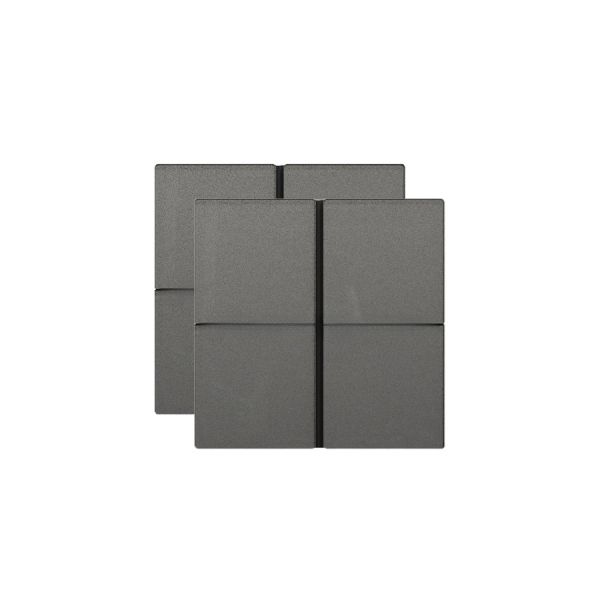

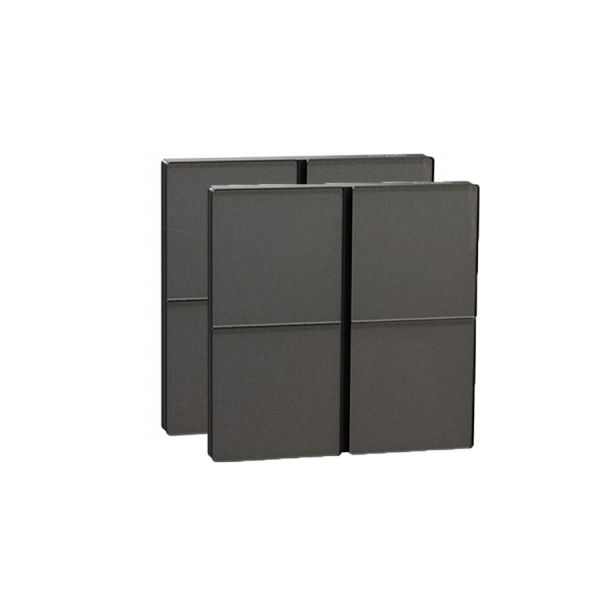

C2E616203_MB_C1 Schneide Cuadro H KNX 4-Key Push-Button Panel for Luxury Homes & Villas
C2E616203_MB_C1 Schneide Cuadro H KNX 4-Key Push-Button Panel for Luxury Homes & Villas
C2E616203_MB_C1 Schneide Cuadro H KNX 4-Key Push-Button Panel for Luxury Homes & Villas
C2E616203_MB_C1 Schneide Cuadro H KNX 4-Key Push-Button Panel for Luxury Homes & Villas
C2E616203_MB_C1 Schneide Cuadro H KNX 4-Key Push-Button Panel for Luxury Homes & Villas
C2E616203_MB_C1 Schneide Cuadro H KNX 4-Key Push-Button Panel for Luxury Homes & Villas
C2E616203_MB_C1 Schneide Cuadro H KNX 4-Key Push-Button Panel for Luxury Homes & Villas
C2E616203_MB_C1 Schneide Cuadro H KNX 4-Key Push-Button Panel for Luxury Homes & Villas
Specifications
Brand Name :
Schneide
Model Number :
C2E616203_MB_C1
Certification :
CE/RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
Western Union,T/T
Delivery Time :
7 Days
Packaging Details :
Carton
Description

C2E616203_MB_C1 Schneider Cuadro H KNX 4-Key Push-Button Panel




This product is a 4-key smart control panel belonging to the Cuadro H series, designed for KNX intelligent building systems. It serves as a human-machine interaction terminal, supporting custom functions such as single-device control and scene linkage. It is positioned as a compact and flexible control accessory for small-to-medium-sized KNX systems, widely used in civil residences and commercial spaces to realize centralized management of lighting, curtains and other electrical equipment.

I. Core Parameter Analysis


1. Core Functional Parameters


Parameter Category Detailed Description
4-Key Customizable Control Each key supports independent programming (via KNX engineering software) to meet diversified control needs:

1. Single-device control: Trigger on/off, dimming, curtain lifting for a single electrical device (e.g., Key 1 controls living room main light, Key 2 controls bedroom curtain);

2. Scene linkage control: Single key or combination of keys triggers preset scenes (e.g., Key 3 = "Movie Mode" — turn off main light + dim ambient light + lower curtain; Key 4 = "Leave Home Mode" — turn off all lights + close curtains + turn on security system);

3. Parameter adjustment: Short press for on/off, long press for stepless adjustment (e.g., long press to adjust lighting brightness or curtain opening degree).
KNX System Compatibility Complies with KNX TP1 standard protocol, fully compatible with KNX switch actuators, dimming actuators, curtain controllers, sensors and other devices in the system. Supports two-way data communication: the panel can send control commands to actuators, and can also receive device status feedback (e.g., display lighting on/off status via key backlight).
Feedback & Indication Function Equipped with configurable key backlight (usually white or warm yellow), with two working modes:

1. Status indication: Backlight is on when the controlled device is running, and off when it is closed (intuitive to view device status);

2. Night mode: Automatically reduce backlight brightness at night to avoid glare, and support timing on/off of backlight.
Control Expansion Support linkage with KNX central controllers and IP gateways to realize remote control:

1. Mobile APP control: Link with KNX IP gateways to realize panel function replication on mobile phones (e.g., remotely trigger "Homecoming Mode" on the way home);

2. Voice control: Compatible with smart voice assistants (via KNX-voice control gateway) to realize voice-triggered key functions (e.g., "turn on movie mode").

2. General Technical Parameters


Parameter Category Detailed Description
Power Supply Mode Adopts KNX bus power supply (DC 24V), no additional mains wiring required. The low-power design ensures stable operation without overheating, and is suitable for long-term standby scenarios.
Installation Method Embedded wall installation, fits standard 86mm×86mm junction boxes (consistent with ordinary switch panel size), no need to modify the wall structure. The panel adopts snap-in design, which can be disassembled and maintained without tools, and is convenient for later function upgrading.
Material & Appearance Panel material: High-quality PC flame-retardant material (scratch-resistant, wear-resistant, yellowing-resistant); surface treatment: Matte finish (anti-fingerprint, comfortable hand feel). Multiple color options (usually white, gray, black) are available to match different decoration styles.
Protection Rating & Operating Environment Protection rating: IP20 (suitable for indoor dry environments, avoid use in humid areas such as bathrooms and kitchens).

Working temperature: 0℃–40℃; storage temperature: -20℃–60℃; working humidity: 5%–90% (non-condensing). Strong environmental adaptability, suitable for most residential and commercial scenarios.
Mechanical Performance Key service life: ≥100,000 presses (meets industrial-grade use standards); key rebound force is moderate, with clear tactile feedback to avoid misoperation.

II. Main Application Scenarios


This product is positioned as a scenario-oriented smart control terminal, suitable for scenarios that require simple and intuitive operation of KNX system equipment. It is widely used in civil residences and small-to-medium-sized commercial spaces.

1. Civil Residence Scenarios


  • Large Apartments/Villas:The 4 keys are programmed to control common home scenarios: Key 1 = Living room light dimming, Key 2 = Curtain lifting, Key 3 = Movie scene, Key 4 = Leave home scene. Homeowners can complete complex equipment linkage with one key, without relying on mobile phones or voice assistants, and is friendly to the elderly and children.
  • Home Theaters/Study Rooms:Customize keys for professional scene control: Key 1 = Projection power on/off, Key 2 = Ambient light dimming, Key 3 = Audio volume adjustment, Key 4 = Theater mode (one-key start of projection + audio + dimming). Improve the comfort of home entertainment and office.
  • Duplex Penthouses:Realize cross-floor control: Program keys to control lighting and curtains of upper and lower floors (e.g., Key 1 controls the first floor main light, Key 2 controls the second floor bedroom light), avoiding the trouble of running between floors.

2. Commercial Building Scenarios


  • Office Single Rooms/Meeting Rooms:Program keys for office scene management: Key 1 = Office area lighting on/off, Key 2 = Meeting scene (turn on all lights + projection on), Key 3 = Energy-saving scene (dim lights + turn off non-essential equipment), Key 4 = Off-duty scene (turn off all equipment + lock doors). Improve office efficiency and realize energy saving.
  • Hotel Guest Rooms:Integrate with the hotel management system: Key 1 = Room main light, Key 2 = Bathroom light, Key 3 = Sleep scene (turn off main light + keep night light on), Key 4 = Check-out scene (turn off all equipment + submit room status to the front desk). Enhance the intelligent experience of guests and reduce the workload of housekeeping staff.
  • Retail Stores/Boutiques:Control store display scenarios: Key 1 = Window display light dimming, Key 2 = In-store ambient light, Key 3 = Business scene (full brightness + turn on background music), Key 4 = Closing scene (dim display light + turn on security light). Highlight product characteristics and save energy.

III. Core Product Advantages


  1. 4-Key Customization & Flexible Control:Each key supports independent programming, realizing both single-device control and complex scene linkage, adapting to diverse use needs of residential and commercial scenarios.
  2. KNX System Compatibility & Two-Way Feedback:Seamlessly integrate with all KNX standard devices, support two-way data communication, and realize visual management of device status via key backlight.
  3. Easy Installation & Decoration Integration:Embedded 86-type design is consistent with ordinary switches, no need to modify the wall; multiple color options match different decoration styles, avoiding damage to the overall aesthetics of the space.
  4. Dual Control Mode & High Reliability:Supports local key control and remote APP/voice control; even if the network is disconnected, the local key can still work normally, ensuring the stability of the control system.
  5. Industrial-Grade Durability & Low Maintenance Cost:High-quality PC material and 100,000-time key service life meet long-term use needs; snap-in disassembly design facilitates later maintenance and function upgrading, reducing operation and maintenance costs.
