Specifications
Brand Name :
Schneide
Model Number :
C2E621201_GY_C1
Certification :
CE/RoHs
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Ddays
Packaging Details :
Carton
Description

C2E621201_GY_C1 Schneider Cuadro H KNX Thermostat Smart HVAC Temperature Control



This product is a smart temperature control terminal belonging to the Cuadro H series, designed for KNX intelligent building and home systems. It integrates temperature detection, precision control and system linkage functions, and the _GY_ in the model represents its gray appearance matching modern decoration styles. It is positioned as a high-precision, energy-saving temperature control accessory for HVAC systems, widely used in residential and commercial scenarios that require unified management of heating, ventilation and air conditioning equipment.

I. Core Parameter Analysis


1. Core Functional Parameters


Parameter Category Detailed Description
Precision Temperature Control 1. Temperature detection range: 0℃–50℃, detection precision ±0.5℃, ensuring accurate perception of ambient temperature;

2. Control range: 5℃–35℃ (adjustable), supporting both heating and cooling mode switching;

3. Control mode:

- Auto mode: Automatically adjust the operation of HVAC equipment according to the preset temperature curve (e.g., 22℃ during the day, 18℃ at night for energy saving);

- Manual mode: Directly set the target temperature via the panel for temporary adjustment;

- Schedule mode: Support 7-day programmable timing, with up to 6 time periods per day for temperature setting.
KNX System Linkage Capability Complies with KNX TP1 standard protocol, realizing seamless linkage with KNX sensors, central controllers and HVAC actuators:

1. Sensor linkage: Connect with outdoor temperature sensors to automatically adjust indoor target temperature (e.g., increase heating temperature when outdoor temperature drops below 5℃);

2. Scene linkage: Link with KNX push-button panels to trigger temperature adjustment via scene keys (e.g., "Sleep Scene" automatically lowers temperature by 3℃, "Reception Scene" adjusts to 24℃);

3. Energy management linkage: Connect with KNX energy meters to upload temperature control data and equipment operation status to the building management system (BMS) for energy consumption statistics and optimization.
Humanized Control Functions 1. Anti-freezing protection: Automatically start heating equipment when the indoor temperature is lower than 5℃ to prevent pipeline freezing;

2. Over-temperature alarm: Send an alarm signal to the central system when the indoor temperature exceeds 35℃, and trigger the ventilation system to run;

3. Temperature calibration: Support manual calibration of detection temperature to eliminate measurement errors caused by installation position;

4. Child lock function: Lock the panel to avoid misoperation by children.
Display & Indication Function Equipped with a segmented LCD screen with backlight, supporting two display modes:

1. Temperature display: Real-time display of current indoor temperature and target temperature;

2. Status display: Display HVAC equipment running status (heating/cooling/standby), timing period and linkage status;

Backlight brightness is adjustable, and it automatically turns off after 10s of inactivity to save power.

2. General Technical Parameters


Parameter Category Detailed Description
Power Supply Mode Adopts KNX bus power supply (DC 24V), no additional mains wiring required, low standby power consumption (≤0.3W), suitable for long-term continuous operation.

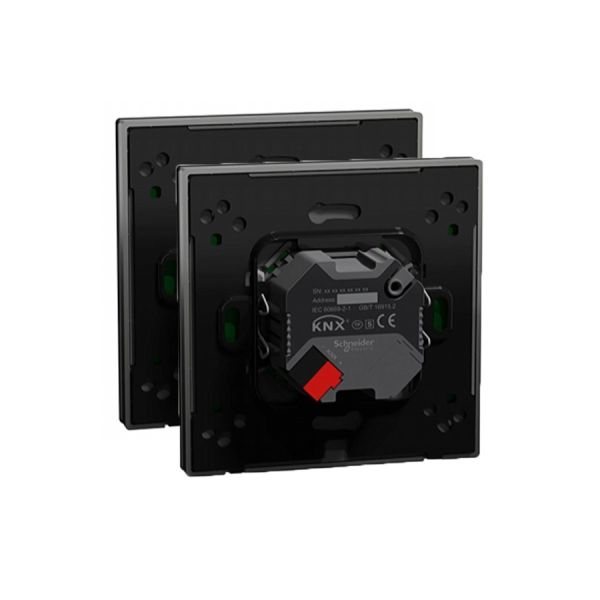

Installation Method Embedded wall installation, fits standard 86mm×86mm junction boxes, consistent with the installation size of other Cuadro H series panels. The snap-in design enables tool-free disassembly and maintenance, facilitating later function upgrading.
Material & Appearance 1. Panel material: High-grade flame-retardant PC (V0 fire rating), scratch-resistant, wear-resistant and yellowing-resistant;

2. Color: Gray (as indicated by _GY_ in the model), matching modern minimalist, industrial and other decoration styles;

3. Operation method: Physical button operation with clear tactile feedback to avoid misoperation.
Protection Rating & Operating Environment Protection rating: IP20, suitable for indoor dry environments (avoid use in humid areas such as bathrooms and kitchens);

Working temperature range: 0℃–45℃; storage temperature range: -20℃–60℃; working humidity: 5%–90% (non-condensing);

Compatible with most HVAC systems (central air conditioning, floor heating, wall-hung boilers).
Mechanical Performance Button service life: ≥100,000 presses; the panel can withstand 1m drop impact without damage, meeting industrial-grade use standards.

II. Main Application Scenarios


This product is positioned as a precision temperature control device with system linkage capability, suitable for scenarios that require intelligent temperature management and energy saving. It is widely used in civil residences and commercial buildings.

1. Civil Residence Scenarios


  • Large Villas/Duplex Apartments:Realize 分户温控 (household zoning temperature control)—install one thermostat in each room to set independent temperatures according to the needs of family members (e.g., the elderly room is set to 24℃, the children's room to 22℃). Link with the KNX central controller to realize whole-house temperature unified management via mobile APP, and set the "away mode" to automatically adjust the temperature to 18℃ to save energy.
  • High-End Apartments:Link with floor heating and central air conditioning systems—automatically switch between heating and cooling modes according to seasonal changes. The anti-freezing protection function ensures that the floor heating pipeline will not freeze during winter holidays when no one is at home.

2. Commercial Building Scenarios


  • Office Buildings:Install thermostats in each office area to realize partition temperature control. Link with the attendance system to automatically adjust the temperature (e.g., raise the temperature to 22℃ 30 minutes before work, lower it to 18℃ after work). The energy management linkage function counts the energy consumption of each area, helping enterprises reduce operation costs.
  • Hotel Guest Rooms:Integrate with the hotel management system—automatically activate the temperature control function when the guest inserts the room card, and adjust the temperature to the preset value (23℃). When the guest checks out, it automatically switches to the energy-saving mode to reduce unnecessary energy consumption.
  • Shopping Malls/Exhibition Halls:Link with outdoor temperature sensors and ventilation systems—automatically adjust the indoor air conditioning temperature according to the number of people and outdoor temperature to create a comfortable shopping and visiting environment, while avoiding energy waste caused by excessive cooling or heating.

III. Core Product Advantages


  1. High-Precision Temperature Control & Energy Saving:±0.5℃ detection precision ensures comfortable temperature; programmable timing and scene linkage functions reduce energy consumption by 15%–20% compared with traditional thermostats.
  2. Strong KNX System Compatibility:Seamlessly integrate with other KNX devices (panels, sensors, actuators) to realize intelligent scene linkage, avoiding the trouble of separate control of multiple systems.
  3. Easy Installation & Decoration Integration:86-type embedded design is consistent with ordinary switches, no need to modify the wall structure; the gray appearance matches various decoration styles, maintaining the overall aesthetics of the space.
  4. Humanized Functions & High Reliability:Anti-freezing protection, over-temperature alarm and child lock functions meet the diverse needs of users; industrial-grade material and button service life ensure long-term stable operation, reducing maintenance costs.
  5. Unified Management & Remote Control:Support mobile APP and BMS system remote control, realizing temperature management without on-site operation, suitable for large-scale scenarios such as office buildings and hotels.
