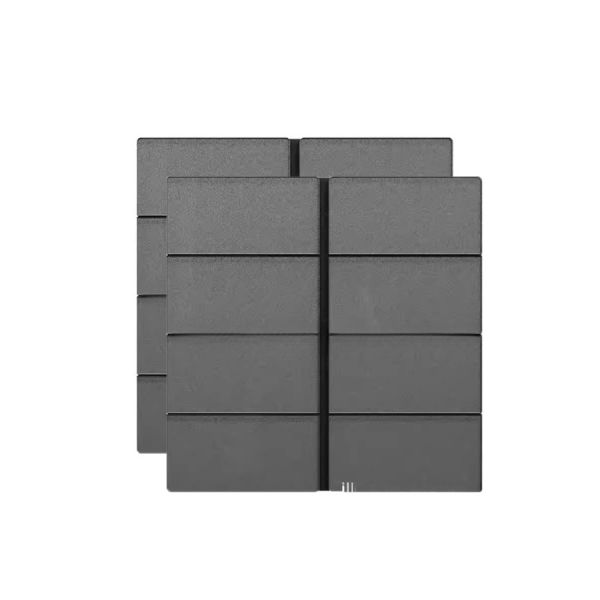

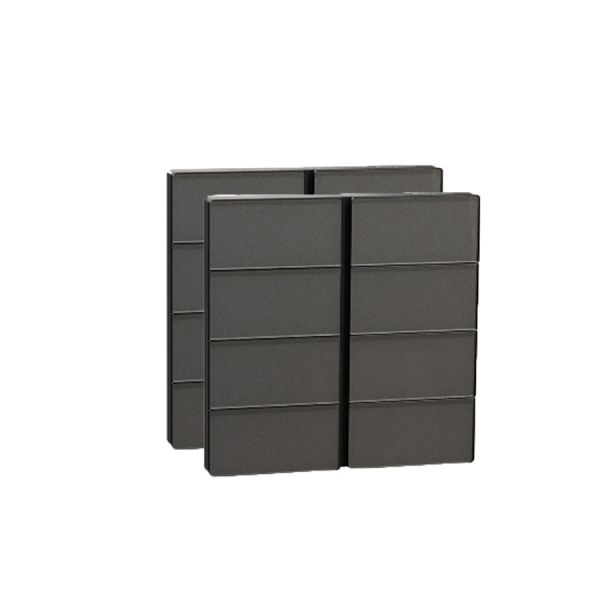

C2E616403_MB_C1 Schneider Cuadro H KNX 8-Key Push-Button Panel



This product is a highly scalable 8-key smart control panel of the Cuadro H series, upgraded from the 4-key and 6-key models. As a human-machine interaction terminal for KNX intelligent building systems, it has the most abundant key resources in the series, supporting full-scenario linkage and multi-system integrated control of lighting, curtains, HVAC, security and other equipment. It is positioned as a core control terminal for large-sized KNX systems, widely used in super-large residences and commercial spaces that require refined and centralized management of multiple devices.

I. Core Parameter Analysis


1. Core Functional Parameters


Parameter Category Detailed Description
8-Key Customizable Control (Core Differentiated Advantage) Each key supports independent programming via KNX engineering software, with the strongest expansion capability in the series, and supports single-device control, partition group control, complex scene linkage and combination-key advanced functions:

1. Full-device coverage control: Assign keys to different systems and partitions (e.g., Key 1–3 for multi-floor lighting, Key 4 for curtain groups, Key 5 for central air conditioning, Key 6 for fresh air system, Key 7 for security linkage, Key 8 for custom scene);

2. Super complex scene linkage: Single key triggers collaborative operation of dozens of devices (e.g., Key 8 = "Holiday Mode" — turn off all indoor lights + close curtains + set air conditioner to energy-saving temperature + turn on courtyard security lights + activate video surveillance);

3. Combination-key tiered control: Press multiple keys together to implement tiered functions (e.g., Key 1+Key 2 = cross-floor lighting loop control, Key 5+Key 6 = HVAC temperature fine-tuning, Key 7+Key 8 = emergency evacuation mode);

Short press for on/off, long press for stepless adjustment (brightness, curtain opening degree, temperature).
KNX System Compatibility & Two-Way Intelligent Feedback Complies with KNX TP1 standard protocol, seamlessly integrating with all KNX standard devices (switch actuators, dimming actuators, curtain controllers, HVAC controllers, security sensors, energy meters). Supports two-way data interaction with three-level status feedback:

1. Device running status: Backlight on = running, off = closed;

2. Device fault status: Backlight flashing = abnormal operation (e.g., lighting circuit short circuit, curtain jamming);

3. Energy consumption status: Connect with KNX energy meters to display real-time energy consumption of the controlled area via backlight brightness (dimmer backlight = lower energy consumption).
Intelligent Backlight & Humanized Indication Equipped with adjustable color temperature backlight (3000K warm yellow/5000K cool white optional), supporting four working modes:

1. Status indication mode: Synchronize with device status;

2. Night low-glare mode: Automatically reduce brightness by 70% after 22:00 and turn off after 00:00;

3. Touch activation mode: Backlight turns on only when the panel is touched, and turns off automatically after 15s;

4. Energy-saving reminder mode: Backlight flashes when the energy consumption of the controlled area exceeds the preset threshold.
Multi-Terminal Remote Control Expansion Support linkage with KNX IP gateways, central controllers and cloud platforms to realize full-scenario remote management:

1. Mobile APP control: Replicate all key functions on smartphones, supporting remote scene triggering and parameter modification;

2. Voice control: Compatible with mainstream voice assistants (via KNX-voice gateway), supporting natural language commands (e.g., "turn on the whole house reception mode");

3. Centralized management platform: Connect to building management systems (BMS) to realize unified monitoring, function adjustment and data statistics of multiple panels in the building.

2. General Technical Parameters


Parameter Category Detailed Description
Power Supply Mode Adopts KNX bus power supply (DC 24V), no additional mains wiring required. Ultra-low standby power consumption (≤0.3W), supporting 24/7 long-term operation without overheating, suitable for large-scale system uninterrupted use scenarios.
Installation Method Embedded wall installation, fits standard 86mm×86mm junction boxes (consistent with ordinary switch size), compatible with all mainstream decoration junction box specifications. Snap-in panel design enables tool-free disassembly and maintenance, facilitating later function upgrading or panel replacement without damaging the wall decoration.
Material & Appearance Panel material: High-grade flame-retardant PC (V0 fire rating, scratch-resistant, wear-resistant, yellowing-resistant); surface treatment: Frosted matte finish (anti-fingerprint, comfortable hand feel, anti-glare). Multiple color options (white, gray, black, champagne gold) to match high-end decoration styles (modern minimalist, light luxury, industrial style).
Protection Rating & Operating Environment Protection rating: IP20 (suitable for indoor dry environments; if used in humid areas such as hotel lobbies, it needs to be matched with a waterproof decorative cover).

Working temperature: 0℃–45℃; storage temperature: -20℃–65℃; working humidity: 5%–90% (non-condensing). Strong environmental adaptability, suitable for most high-end residential and commercial scenarios.
Mechanical Performance Key service life: ≥120,000 presses (higher than the industrial-grade standard of 100,000 times); key rebound force is uniform and moderate, with clear tactile feedback to avoid misoperation. The panel has passed impact resistance (1m drop test) and aging resistance (5000h high-temperature aging test) tests, suitable for high-frequency operation scenarios.

II. Main Application Scenarios


This product is positioned as a full-scenario integrated control terminal, suitable for large-scale scenarios that require multi-system, multi-partition and multi-device centralized management. It is widely used in super-large civil residences and high-end commercial spaces.

1. Civil Residence Scenarios


  • Super-Large Villas/Private Manors:The 8 keys cover the control needs of the whole house and courtyard: Key 1–3 control the lighting of the first, second and third floors respectively; Key 4 controls the curtain groups of all rooms; Key 5 controls the central air conditioning and fresh air system; Key 6 controls the courtyard landscape lights and fountain; Key 7 controls the security system (video surveillance + access control); Key 8 is the custom scene key (reception mode, holiday mode, sleep mode). Installed in the entrance hall and living room, it realizes one-key management of the whole house equipment.
  • Multi-Family Compound Residences:Realize independent control of multiple families and public areas: Key 1–2 control the lighting of the owner's area; Key 3–4 control the lighting of the guest area; Key 5 controls the public area (courtyard, corridor, shared kitchen); Key 6 controls the curtain system; Key 7 controls the HVAC system; Key 8 is the emergency linkage key (one-key cut-off of non-essential power + activation of emergency lighting). Balance the independent use needs of each family and the centralized management needs of public areas.
  • Luxury Holiday Houses:Customize vacation scene control: Key 1 = check-in mode (turn on all lights + adjust air conditioner to 25℃ + open curtains); Key 2 = leisure mode (dim living room lights + turn on terrace lights + play background music); Key 3 = barbecue mode (turn on courtyard lights + start exhaust fan); Key 4 = sleep mode; Key 5–7 control the lighting of three guest rooms; Key 8 = check-out mode (turn off all equipment + clean the room reminder). Improve the vacation experience of guests and reduce the management workload of the housekeeper.

2. Commercial Building Scenarios


  • High-End Hotel Suites/Presidential Suites:Integrate with the hotel intelligent management system: Key 1 = room main light; Key 2 = bathroom light and exhaust fan; Key 3 = ambient light dimming; Key 4 = curtain and electric sunshade; Key 5 = central air conditioning; Key 6 = TV and audio system; Key 7 = service call (link to the front desk); Key 8 = check-out mode (submit room status + turn off all equipment). Enhance the high-end intelligent experience of guests and improve the operational efficiency of the hotel.
  • Large Conference Halls/Multi-Function Halls:Program conference scene control: Key 1 = meeting mode (turn on main lights + start projection + adjust microphone volume); Key 2 = speech mode (dim main lights + turn on podium lights + close curtain); Key 3 = break mode (turn on corridor lights + play background music); Key 4 = video conference mode; Key 5–7 control the lighting of three partitions; Key 8 = emergency mode (one-key cut-off of audio and video equipment + activation of emergency lighting). Adapt to the diverse use needs of the multi-function hall.
  • High-End Exhibition Halls/Art Galleries:Control exhibition scene lighting and equipment: Key 1–4 control the lighting of four exhibition areas (adjustable brightness according to the characteristics of exhibits); Key 5 = curtain and sunshade system (adjust according to outdoor light intensity to avoid glare on exhibits); Key 6 = security system (link to infrared sensors to prevent exhibit damage); Key 7 = audio explanation system; Key 8 = closing mode (dim exhibition area lights + turn on security lights + lock exhibition cabinets). Highlight the characteristics of exhibits and ensure the safety of the exhibition hall.

III. Core Product Advantages


  1. 8-Key Full-Scenario Coverage:The most abundant key resources in the Cuadro H series support multi-system integrated control of lighting, curtains, HVAC and security, avoiding the trouble of installing multiple panels in the same space, and reducing installation and maintenance costs by 30% compared with combining 4-key and 6-key panels.
  2. Flexible Customization & Tiered Control:Each key supports independent programming, and combination-key functions realize advanced control scenarios; two-way three-level status feedback enables real-time grasp of device operation and energy consumption status, improving the intelligent management level of the system.
  3. High Compatibility & Scalability:Seamlessly integrate with all KNX standard devices and BMS systems, supporting later expansion of more equipment and functions without replacing the panel, adapting to the long-term upgrading needs of intelligent systems.
  4. High-End Appearance & Decoration Integration:Multiple color options and frosted matte finish match various high-end decoration styles; 86-type embedded design does not damage the wall structure, and is suitable for both new decoration and old house renovation.
  5. Industrial-Grade Durability & Low Operation Cost:120,000-time key service life and V0 fire rating PC material meet the long-term use needs of commercial scenarios; ultra-low standby power consumption reduces the operation cost of the system; tool-free disassembly design facilitates later maintenance and reduces labor costs.
