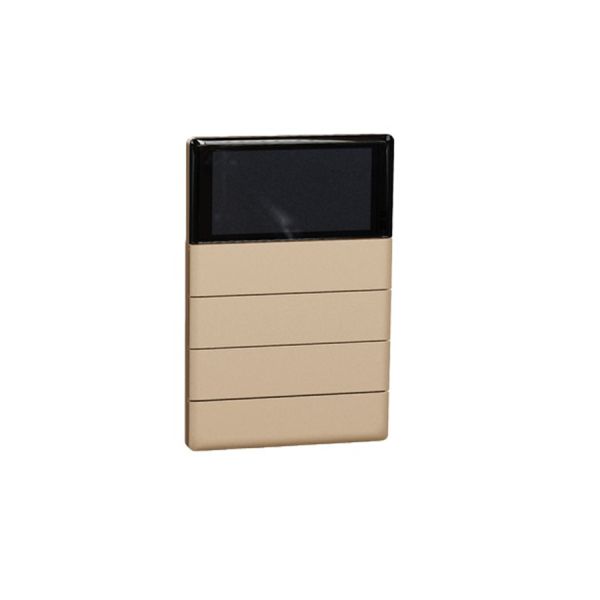

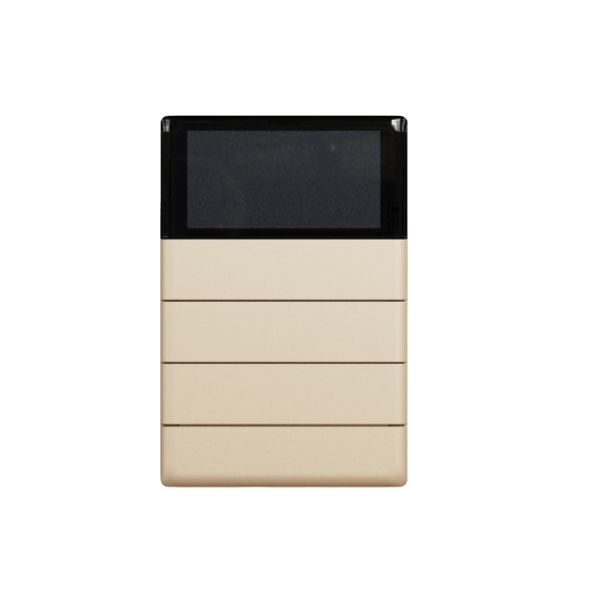

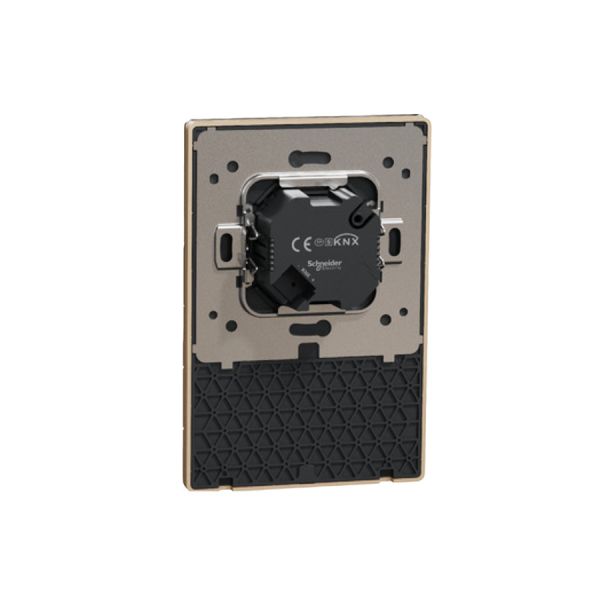

NP16214_01WG Schneider Electric Unica KNX 8-Key Smart Thermostat with Energy Management

I. Core Product Parameters​

1. Basic Configuration​

• Keys & Interaction: 8 programmable touch keys with LED status indicators​ (supporting backlight sensing and night mode); proximity sensing​ (lights up screen and icons when hand approaches), default icons replaceable (common icon kit included in packaging).
• Bus Protocol: Supports KNX protocol​ (compatible with KNXnet/IP), built-in bus coupler​ (single bus terminal for 21-30V DC power supply), interoperable with KNX sensors (e.g., temperature, humidity) and actuators (e.g., lighting, curtain controllers).

2. Temperature Control Features​

• Sensor Integration: Built-in high-precision temperature sensor​ (accuracy ±0.5℃), supporting real-time temperature monitoring and display (optional LCD screen); can connect to external KNX-compliant temperature sensors (e.g., room temperature sensors) for more accurate environmental temperature collection.
• Control Modes:
  • Fan Coil Unit (FCU): Supports cooling/heating mode switching, fan speed adjustment (high/medium/low/auto), and setpoint temperature adjustment (16-30℃);
  • Variable Refrigerant Flow (VRF): Supports cooling/heating/dehumidification/ventilation mode switching and setpoint temperature adjustment;
  • Underfloor Heating: Supports PI control​ (proportional-integral), PWM pulse-width modulation, or 2-point on/off feedback control, with setpoint adjustment range 16-30℃;
  • Fresh Air: Supports ventilation mode switching and fan speed adjustment.
• Extended Functions: Supports logic control​ (AND/OR/XOR logic, threshold comparators, e.g., auto-start ventilation when temperature >28℃), delay function​ (0.1-60s delay after key press to prevent misoperation), and scene linkage​ (e.g., "Home Mode" automatically adjusts room temperature to 22℃).

II. Application Scenarios​

1. Smart Home Scenarios​

• Living Room: Control air conditioning (cooling/heating), underfloor heating (setpoint temperature), and motorized curtains (opening angle) via the 8-key panel; implement scenes like "Movie Mode" (turn off main lights, dim ambient lights, adjust room temperature to 24℃) and "Guest Mode" (turn on main lights, adjust room temperature to 22℃); proximity sensing​ enhances operational convenience (no need to find keys).
• Bedroom: Adjust bedside lamp brightness and color temperature (with RGB lighting control), link motorized curtains to sunrise for automatic opening (ensure sleep comfort with temperature control); night mode​ (reduced LED brightness) avoids strong light interference.
• Kitchen: Motion-activated cabinet lights, link range hoods to stove ignition signals, and display refrigerator status (enhance convenience); temperature control​ ensures a comfortable kitchen environment (e.g., cooling in summer, heating in winter).

2. Commercial Building Scenarios​

• Hotel Guest Rooms: As a guest room control terminal, support "Welcome Mode" (fade-in entrance and bedside lights, adjust room temperature to 23℃) and "Energy-Saving Mode" (turn off non-essential devices, lower room temperature to 18℃); smart energy management​ reduces hotel energy costs (e.g., adjust air conditioning operation during peak-valley electricity price periods).
• Offices: Zonal control of workstation lighting (e.g., 50% brightness for meeting areas) and air conditioning (independent temperature adjustment per zone), support "Meeting Mode" (close curtains, dim lights, start projector); logic control​ (e.g., auto-start ventilation when temperature >28℃) improves office comfort.
• Shopping Malls: Automatically switch public area lighting and air conditioning according to business hours (e.g., full on during business hours, emergency lights only during closing); temperature control​ ensures a comfortable mall environment (e.g., 24-26℃ in summer, 18-20℃ in winter), reducing energy costs.

3. Industrial Scenarios​

• Factory Workshops: Control production line lighting (high-brightness white light) and ventilation systems (auto-start exhaust when humidity >60%); temperature control​ ensures production equipment operates at suitable temperatures (e.g., 20-25℃ for electronic equipment workshops), improving production efficiency and equipment lifespan.
• Warehousing & Logistics: PIR-activated shelf lights, link access control to lighting alarms (red warning for unauthorized entry); temperature control​ ensures proper warehouse temperature (e.g., 18-22℃ for pharmaceutical warehouses), protecting goods quality.
• Data Centers: Control computer room air conditioning and UPS power to ensure equipment operates at suitable temperatures (20-25℃); smart energy management​ optimizes data center energy consumption (e.g., adjust air conditioning fan speed during off-peak hours), reducing operating costs.
