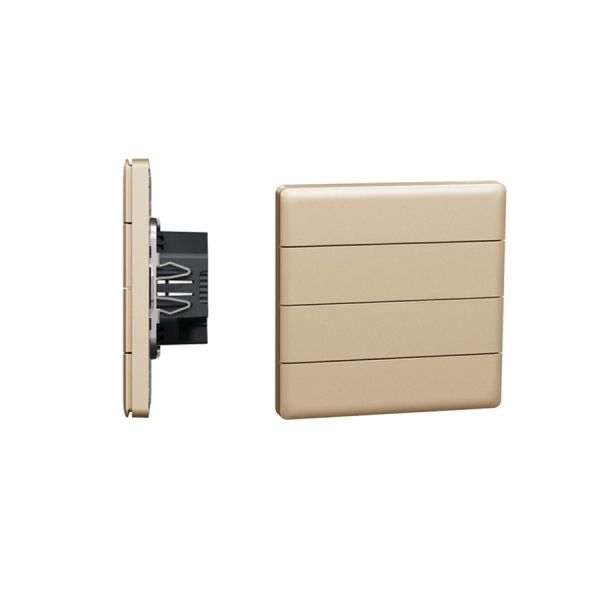

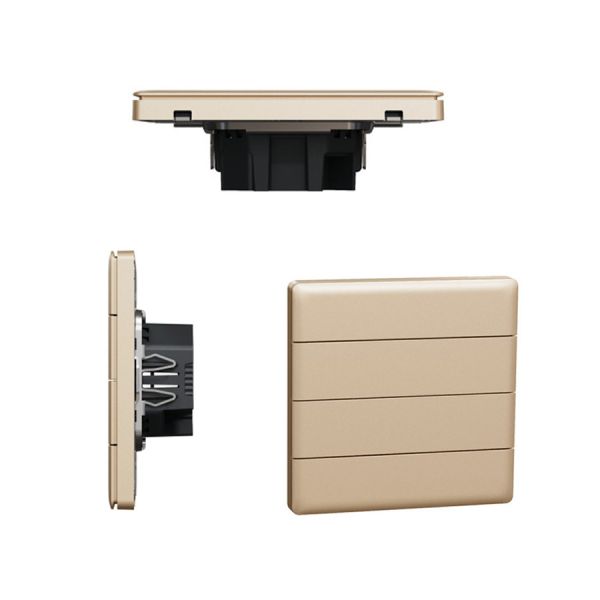

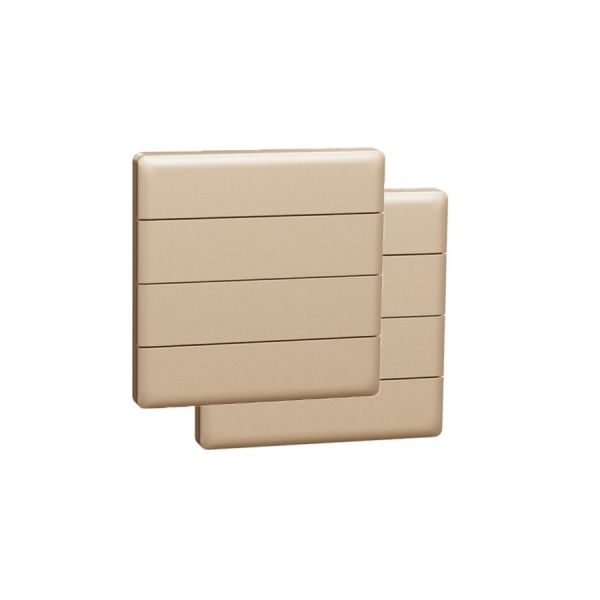

NP16164_01WG Schneider Electric Unica KNX Secure 8-Key Encrypted Smart Panel

1. Basic Specifications​
   • Model: NP16164_01WG (Morning Gold)
   • Series: Unica KNX Smart Control Panel
   • Interface: 8 tactile keys with LED status indicators (backlight auto-on via proximity sensing)
   • Material: Thermoplastic housing; available in Morning Gold, Smoke Gray, Ice Silver
   • Protocol: KNX protocol (KNXnet/IP compatible), integrated bus coupler (21-30V DC supply)
2. Functional Features​
   • Control Capabilities:
     • Switching/Dimming: Single/dual-key control for lighting on/off and 0-100% dimming
     • Shading Integration: Sync with motorized curtains/blinds (0-100% position control)
     • Scene Programming: 5 customizable scenes (e.g., "Home Mode," "Sleep Mode") for multi-device synchronization
   • Advanced Features:
     • Logic Control: AND/OR/XOR logic gates, threshold comparators (e.g., activate ventilation at >28°C)
     • RGB Control: Compatible with RGB/RGBW fixtures; adjustable color temperature (2700K-6500K) and 16M colors
     • Delay Function: 0.1-60s delay trigger (anti-misoperation)
   • Security:
     • KNX Secure Encryption: AES-128-CCM protocol for data integrity
     • Physical Safety: IP20 rating, tactile lock to prevent accidental inputs
3. Electrical Specifications​
   • Power Consumption: Standby <1W; operational current 0.5-2mA (load-dependent)
   • Communication Range: Single KNX bus segment up to 300m (requires repeaters for extension)
   • Operating Temperature: -10°C to 55°C (industrial-grade)

Application Scenarios​

1. Smart Homes​
   • Living Room: Centralized control of lighting, curtains, and HVAC. Example: "Movie Mode" triggers lights dimming, curtains closing, and HVAC adjusting to 24°C.
   • Bedroom: Circadian rhythm lighting (e.g., 50% brightness at wake-up), motorized curtains opening at sunrise.
   • Kitchen: Motion-activated under-cabinet lights, range hood linked to stove ignition signals.
2. Commercial Buildings​
   • Hotel Rooms: Guest room control hub for "Welcome Mode" (entry lights fade-in) and energy-saving profiles.
   • Offices: Zonal workstation lighting (e.g., 30% brightness for focus tasks), HVAC zoning (per-room temperature control).
   • Retail Spaces: Dynamic lighting for sales floors (e.g., 100% brightness during business hours, 20% at closing).
3. Industrial Settings​
   • Manufacturing Plants: High-bay lighting control (8000K cool white for assembly lines), ventilation linked to air quality sensors.
   • Warehouses: PIR-activated aisle lighting, access control integrated with alarm systems (red strobe on unauthorized entry).
