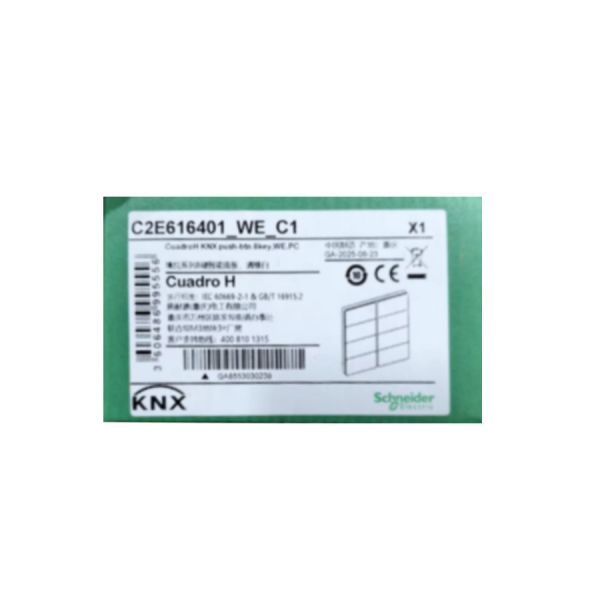

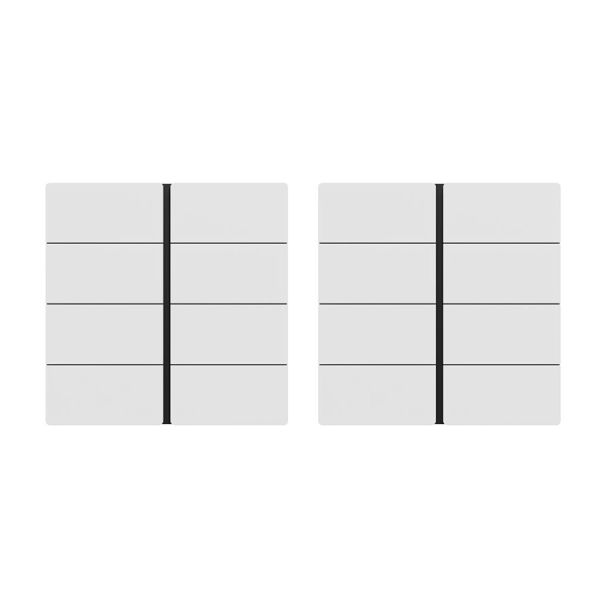

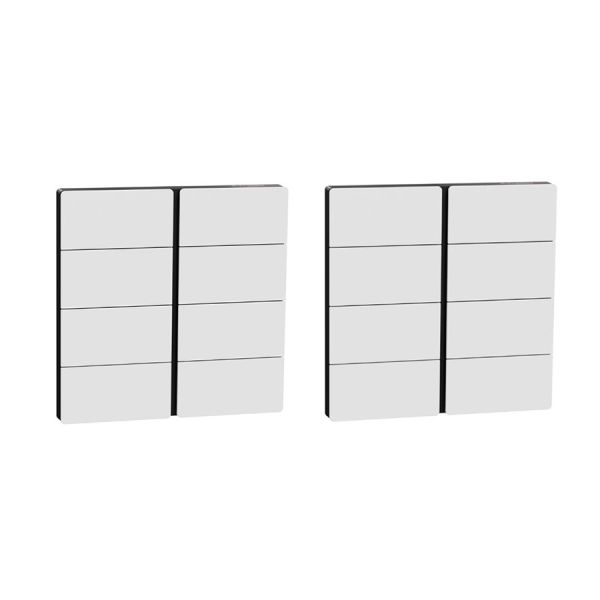

Schneide Electric Cuadro H KNX Push Button Panel 8 Gang C2E616401_WE_C1 IP20 Rating
Schneide Electric Cuadro H KNX Push Button Panel 8 Gang C2E616401_WE_C1 IP20 Rating
Schneide Electric Cuadro H KNX Push Button Panel 8 Gang C2E616401_WE_C1 IP20 Rating
Schneide Electric Cuadro H KNX Push Button Panel 8 Gang C2E616401_WE_C1 IP20 Rating
Schneide Electric Cuadro H KNX Push Button Panel 8 Gang C2E616401_WE_C1 IP20 Rating
Schneide Electric Cuadro H KNX Push Button Panel 8 Gang C2E616401_WE_C1 IP20 Rating
Specifications
Brand Name :
Schneide
Model Number :
C2E616401_WE_C1
Certification :
RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Color :
White
Material :
Thermoplastic
IP Rating :
IP20
Control Points :
8 Keys
Mounting :
Flush mounted (fits standard 60mm wall boxes)
Current Consumption :
15 mA
Operating Voltage :
21 - 30 V DC (via KNX Bus)
Size :
86*86*30mm
Description
Schneider Electric Cuadro H KNX 8-Gang Push-Button Panel ETS6 Compatible White (C2E616401)

The Schneider Electric SpaceLogic KNX Cuadro H 8-Key Push-Button Panel (C2E616401) is a sophisticated control interface designed for advanced building automation systems. Finished in an elegant Anthracite Grey with a smooth, painted surface, this panel offers a premium aesthetic that complements contemporary interior designs.

Engineered as part of the reliable SpaceLogic KNX ecosystem, the C2E616401 provides extensive functionality through its eight individually programmable keys. It enables intuitive management of complex scenarios, from multi-zone lighting control and precise blind positioning to HVAC adjustments and scene activation. The integrated bus coupler ensures a direct and secure connection to the KNX bus, simplifying installation for certified professionals.

Technical Specifications
Feature Technical Details
Brand & Ecosystem Schneider Electric / SpaceLogic KNX
Model Code C2E616401 (GY Edition)
Color Anthracite Grey (Painted finish)
Material Polycarbonate (PC) material
Control Points 8 keys / 8-gang interface
System Protocol KNX TP (Twisted Pair)
Operating Voltage 21 - 30 V DC (via KNX Bus)
Current Consumption 15 mA
Mounting Flush mounted (fits standard 60mm wall boxes)
IP Rating IP20 (IP20 and IK05 degrees of protection)
Dimensions (W x H x D) 86 mm x 86 mm x 29 mm
Operating Temperature -10°C to +45°C
Application Scenarios for C2E616401 (8-Key KNX Panel)

The core strength of this 8-key panel lies in its versatility and high-density control. It is the ideal solution for environments requiring centralized management of multiple building functions:

  • Luxury Residences & Villas: Perfect for living rooms or master suites to manage complex "Scenes." A single panel can trigger "Cinema Mode," "Dinner Party," or "All Off" while simultaneously adjusting multi-zone lighting, motorized shades, and climate settings.
  • Commercial Offices & Boardrooms: Acts as a centralized hub for meeting rooms. The 8 programmable keys allow for seamless control over projectors, motorized screens, whiteboard lighting, main dimmers, and HVAC setpoints, ensuring a professional and efficient environment.
  • High-End Hospitality: Typically installed at bedside or entryways, providing guests with intuitive icons for "Do Not Disturb," "Make Up Room," "Master Switch," and ambient reading lights.

Summary: The ultimate choice for sophisticated scene management and multi-functional integration, blending minimalist design with powerful control capabilities.

Similar Schneider Electric KNX Product Series

Schneider Electric offers a diverse portfolio of KNX interfaces. Beyond the Cuadro H series, the following product lines are excellent alternatives or complements, featuring premium finishes like White, Anthracite, and Metal:

Series Name Key Features Positioning & Usage
D-Life Series Ultra-minimalist design with premium glass, stone, and metal frame options. High-End Luxury. Offers similar functionality to Cuadro H but with a more avant-garde aesthetic for modern interiors.
Multitouch Pro A high-resolution touch interface (3.5" screen) instead of physical buttons. Central Control. Provides a visual UI for advanced monitoring, room temperature control, and intuitive gesture-based operation.
System M Series A classic, modular system with a vast range of inserts, materials, and colors. Commercial & Versatile. One of Schneider's most popular lines; cost-effective and suitable for large-scale office or residential projects.
Exxact Series Known for its sleek Scandinavian design and easy-to-install modular frames. Regional Excellence. Highly popular in Northern European markets, focusing on aesthetics and professional-grade durability.
