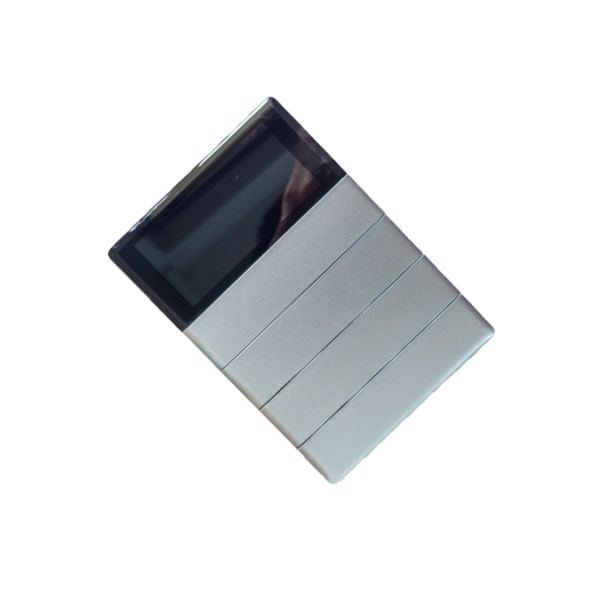

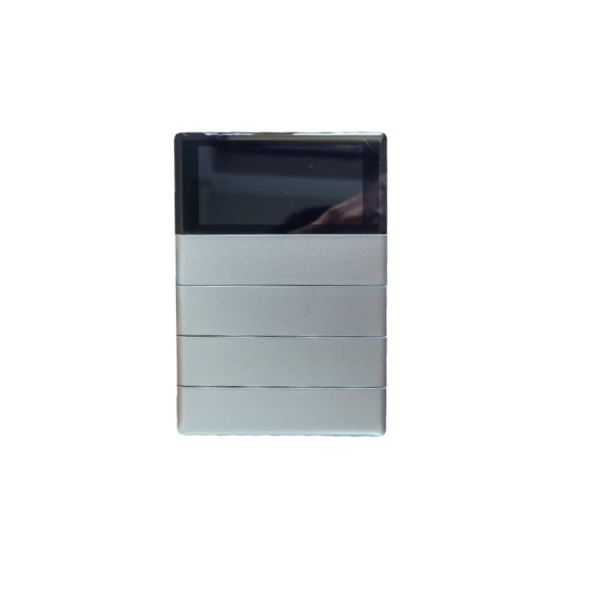

NP16214_01MS Schneider Unica KNX Flush Mounted 8-Key Cyber-Secure Thermostat

I. Core Product Parameters​

1. Basic Configuration​

• Keys & Interaction: 8 programmable touch keys with LED status indicators​ (backlight sensing and night mode), supporting switch, dimming, and scene switching;
• Material & Appearance: Ice Silver (MS)​ industrial-grade plastic with matte finish, IP20 protection (anti-misoperation);
• Bus Protocol: Supports KNX protocol​ (compatible with KNXnet/IP), built-in bus coupler (single bus terminal for 21-30V DC power supply), interoperable with KNX sensors and actuators.

2. Temperature Control Features​

• Sensor Integration: Built-in high-precision temperature sensor​ (accuracy ±0.5℃), supporting real-time temperature monitoring and display (optional LCD screen);
• Control Modes: Supports switch control​ (single-key trigger for heating/cooling), temperature adjustment​ (0-100% stepless regulation for underfloor heating/air conditioning), and scene linkage​ (e.g., "Home Mode" automatically adjusts temperature to 22℃);
• Extended Functions: Supports logic control​ (AND/OR/XOR logic, threshold comparators, e.g., auto-start ventilation when temperature >28℃), delay function​ (0.1-60s delay after key press to prevent misoperation).

3. Flush-Mounted Installation Features​

• Installation Method: Flush-mounted​ design, compatible with standard wall boxes (e.g., 86-type), flush with the wall to enhance spatial aesthetics;

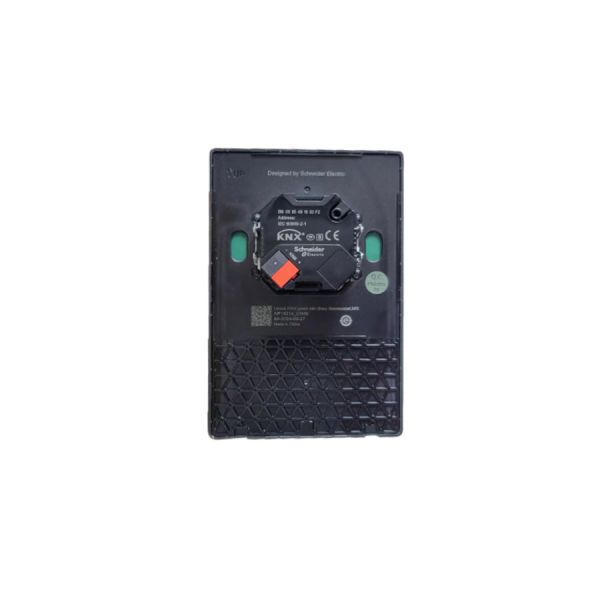

• Fixing Structure: Equipped with safety clips​ on the back panel for secure fixation to the box, preventing loosening;
• Wiring Requirements: KNX bus connected via bus connection terminals, supporting star, ring, and other wiring methods.

4. Electrical & Environmental Parameters​

• Power Consumption: Standby <1W, operating current 0.5-2mA (load-dependent);
• Communication Distance: Max 300m per KNX bus segment (requires repeater for extension);
• Operating Temperature: -10℃~55℃ (industrial-grade temperature control for harsh environments);
• Humidity Range: 10%-90% RH (non-condensing).

II. Application Scenarios​

1. Smart Home Scenarios​

• Living Room: Control air conditioning, underfloor heating, and motorized curtains via the 8-key panel, enabling scenes like "Movie Mode" (turn off main lights, dim ambient lights, adjust temperature to 24℃) and "Guest Mode" (turn on main lights, adjust temperature to 22℃);
• Bedroom: Adjust bedside lamp brightness and color temperature, link motorized curtains to sunrise for automatic opening (ensure sleep comfort with temperature control);
• Kitchen: Motion-activated cabinet lights, link range hoods to stove ignition signals, and display refrigerator status (enhance convenience).

2. Commercial Building Scenarios​

• Hotel Guest Rooms: As a guest room control terminal, support "Welcome Mode" (fade-in entrance and bedside lights, adjust temperature to 23℃) and "Energy-Saving Mode" (turn off non-essential devices, lower temperature to 18℃) to enhance guest experience;
• Offices: Zonal control of workstation lighting and air conditioning, support "Meeting Mode" (close curtains, dim lights, start projector) to improve office efficiency;
• Shopping Malls: Automatically switch public area lighting and air conditioning according to business hours (e.g., full on during business hours, emergency lights only during closing) to reduce energy costs.

3. Industrial Scenarios​

• Factory Workshops: Control production line lighting (high-brightness white light) and ventilation systems (auto-start exhaust when humidity >60%), improve production efficiency and safety with logic control;
• Warehousing & Logistics: PIR-activated shelf lights, link access control to lighting alarms (red warning for unauthorized entry) for intelligent warehouse management;
• Data Centers: Control computer room air conditioning and UPS power to ensure equipment operates at suitable temperatures (20-25℃), maintain clean room environment with flush-mounted installation.
