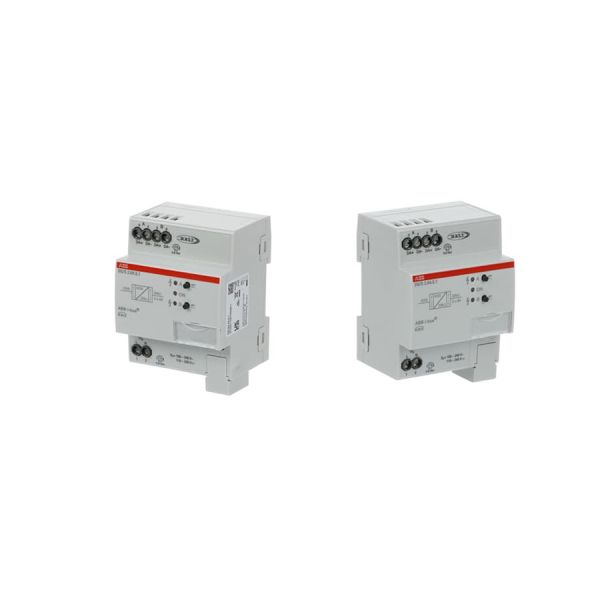

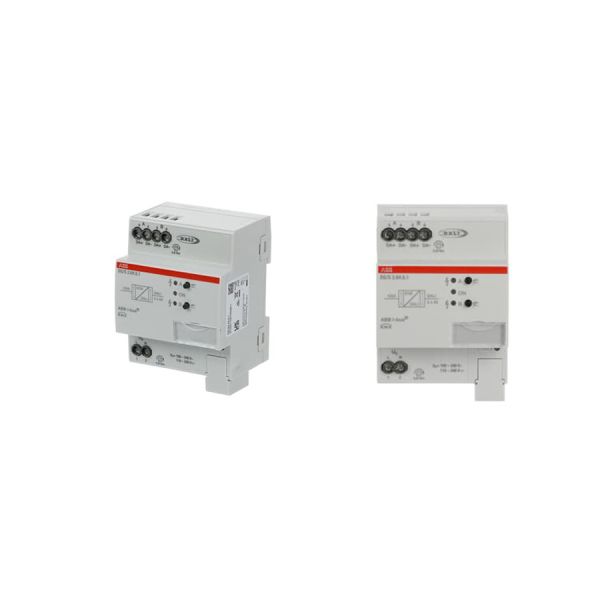

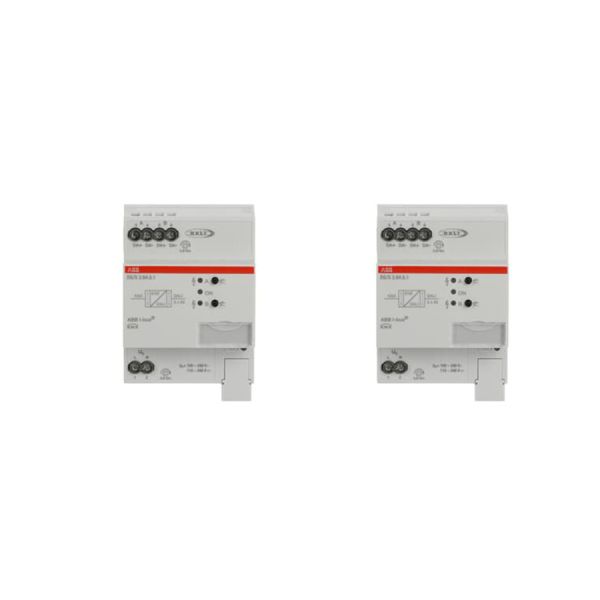

DG/S2.64.5.1 ABB KNX DALI-2 Gateway 2 Independent Channels 64 DALI Nodes
DG/S2.64.5.1 ABB KNX DALI-2 Gateway 2 Independent Channels 64 DALI Nodes
DG/S2.64.5.1 ABB KNX DALI-2 Gateway 2 Independent Channels 64 DALI Nodes
DG/S2.64.5.1 ABB KNX DALI-2 Gateway 2 Independent Channels 64 DALI Nodes
DG/S2.64.5.1 ABB KNX DALI-2 Gateway 2 Independent Channels 64 DALI Nodes
DG/S2.64.5.1 ABB KNX DALI-2 Gateway 2 Independent Channels 64 DALI Nodes
Specifications
Brand Name :
ABB
Model Number :
DG/S1.64.5.1
Certification :
CE
MOQ :
1
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Original Case
Brand :
ABB
Product Id :
2CDG110273R0011
Number of Ourput :
1
Number of Led :
1
Communication Interface :
DALI
Color :
Light Grey
Description
DG/S2.64.5.1 ABB KNX DALI-2 Gateway 2 Independent Channels 64 DALI Nodes


Product Description (DG/S2.64.5.1)


ABB DG/S2.64.5.1(product ID:2CDG110273R0011) is a dual‑channel DALI‑2 certified KNX DALI Gateway in the ABB i‑bus® KNX system, serving as a single‑master DALI controller compliant with DALI‑2 (EN 62386)ABB.ABB DG/S2.64.5.1 enables seamless integration and control of DALI/DALI‑2 lighting devices via the KNX bus, featuring two independent DALI channels (each supporting up to 64 DALI devices) and an integrated DALI power supply for simplified installationABB. Supporting individual, group, broadcast, and scene‑based control, it offers comprehensive status feedback per DALI device through KNX, and is compatible with DALI device types including DT1 (emergency lighting) and DT8 (tunable white/RGBW), with DT6 devices controllable via standard commandsABB. Advanced functions include slave, staircase, force, block, and scene operations, plus color control features like Dim2Warm, HCL, and HSV(W)‑based tuningABB. ABB DG/S2.64.5.1 also provides extensive diagnostics, fault reporting, and emergency lighting test capabilities (function, duration, partial duration, battery tests) via KNX, alongside standby power‑off integration with KNX switch actuators, making it ideal for large‑scale smart commercial and residential lighting control systemsABB.


Technical Parameters (DG/S2.64.5.1)


Parameter Specification
Ordering Code 2CDG110274R0011
Bus Systems KNX (TP), DALI (DALI‑2 certified)ABB
DALI Outputs 2 independent channels, 64 DALI devices per channelABB
Power Supply 100–240 V AC, 50/60 Hz; 110–240 V DC (85–265 V AC range)
Total Power Consumption Max 6 W
Total Current Consumption Max 25 mA
KNX Power Consumption Max 210 mW (10 mA max current draw)
Integrated DALI Power Supply Yes, 250 mA max supply current per channelABB
Control Features 16 lighting groups per channel, 16 scenes per channel, broadcast control, status feedback per DALI device
Supported DALI Device Types DT1 (emergency), DT8 (tunable white/RGBW), DT6 (via standard commands)ABB
Advanced Functions Slave, staircase, force, block, scene; Dim2Warm, HCL, HSV(W), 4 sequencers per DALI outputABB
Mounting 35 mm DIN rail (EN 60715), 4‑module width (70 mm)
Dimensions (H×W×D) 90 × 70 × 63.5 mm
Weight (Net) 0.13 kg
Operating Temperature ‑5 °C to +45 °C
Storage Temperature ‑25 °C to +55 °C
Humidity Max 93% (non‑condensing)
Protection Rating IP20
Certifications KNX (EN 50090), DALI‑2 (IEC 62386), CEABB
