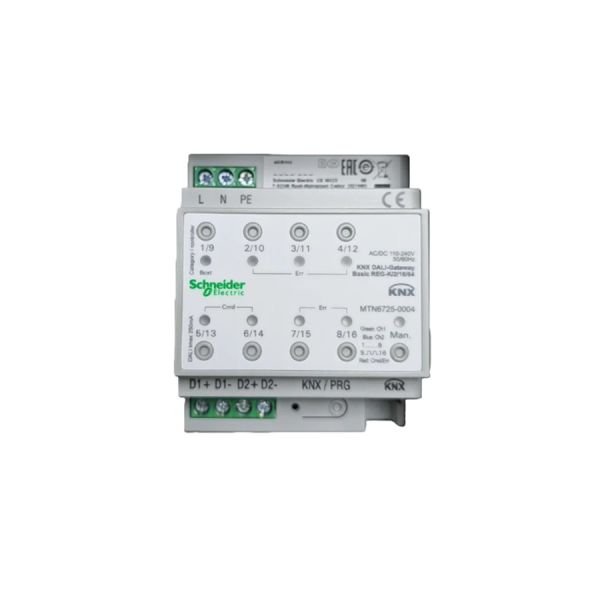

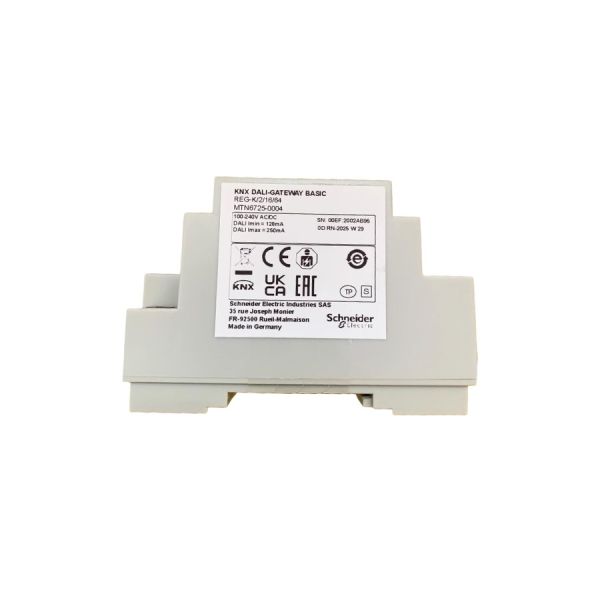

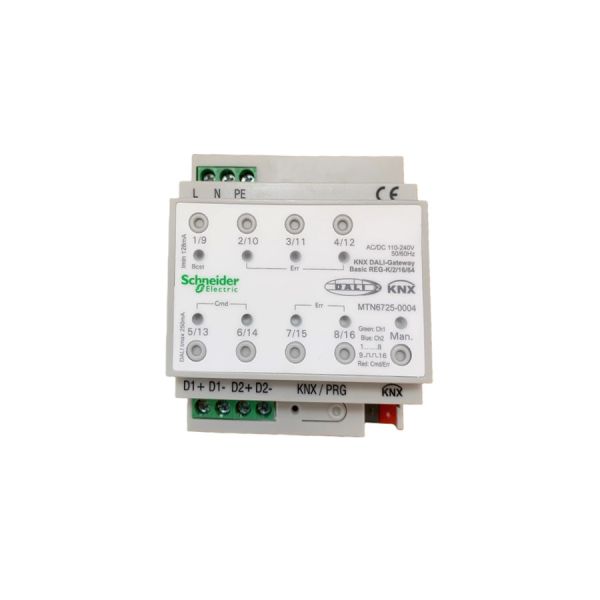

MTN6725-0004 Schneider SpaceLogic KNX DALI Basic Gateway 2-Channel DALI Output

Core Parameters

1. Product Model: MTN6725-0004
2. Product Name: SpaceLogic KNX DALI Basic Gateway (REG-K/2/16/64)
3. Product Type: Dedicated protocol conversion gateway for KNX and DALI system integration, a DALI 2 single-master controller (compliant with EN 62386 standard), belonging to Category I DALI control device with integrated DALI bus power supply, no additional power module required.
4. Core Communication & Control Specifications
   • Protocol Compatibility: Natively compatible with KNX/EIB bus protocol and DALI 2 protocol, bidirectionally converting KNX control commands and DALI telegrams. Supports EN 62386 Edition 1 and Edition 2 DALI devices, and can connect DALI DT1 emergency lighting devices (supports status reading and on/off control, not test commands).
   • Channel & Control Capability: Equipped with 2 independent DALI output channels, each channel supports 16-group device control, up to 64 DALI electronic ballasts/LED drivers per channel, supporting individual device control, group control and broadcast control.
   • Color Control: Supports color adjustment of DALI DT8 drivers, parses KNX panel color commands, and realizes multiple color mode controls such as color temperature (TC), XY color coordinates, RGB/RGBW/HSV, adapting to intelligent color lighting scenarios.
   • Intelligent Functions: Supports 16 group scene storage (including brightness and color parameters), 16 timer programs per channel (weekly cycle, up to 300 commands per program), 4 operating modes (staircase delay, continuous operation, night mode, emergency mode), and built-in operating hours counter for each group (alarm when threshold is exceeded).


5. Power Supply & Physical Specifications
   • Power Supply: KNX bus-powered (DC 21-30V), self-power consumption ≤ 600mW; integrated DALI bus power supply module, output DC 16-18V (non-SELV, basic insulation), maximum output current 128mA with short-circuit protection, directly powering connected DALI devices.
   • Installation Method: DIN 35mm standard rail mounting, device width 4 modules (approx. 72mm), suitable for centralized deployment in weak current cabinets, easy wiring without additional data rail.
   • Interface Configuration: Equipped with KNX TP bus interface, 2 DALI output terminals (D+/D-), configurable via ETS 5 software and dedicated DCA plugin for grouping and scene setting.
   • Environmental Adaptability: Operating temperature -10℃~60℃, protection class IP20, suitable for weak current environments of commercial buildings and residences, connecting wire specification 1.5-2.5mm².


6. Additional Features
   • Fault Monitoring: Supports individual DALI device and group fault diagnosis, fault information fed back to central control system via KNX bus for precise troubleshooting.
   • Energy-saving Optimization: Reduces DALI device standby power consumption via KNX switch actuator, realizing refined energy-saving control with timer programs.



2. Product Positioning

3. Application Scenarios

1. Lighting of Small and Medium-sized Office Buildings: Deployed in floor weak current cabinets, connecting KNX smart panels and DALI LED office lights. Realizes zonal control of open office areas and independent offices via 2 channels, sets "Working Mode", "Meeting Mode" and "After-work Energy-saving Mode", adjusts brightness regularly, and operating hours counter assists equipment maintenance.
2. Lighting of Chain Stores/Convenience Stores: Uses DALI color control function to link KNX scene panels to adjust color temperature and brightness of window and in-store lighting, creating different marketing atmospheres; real-time feedback of lamp status via fault monitoring avoids business impact due to lighting failures.
3. Guest Room and Corridor Lighting of Mid-range Hotels: Connects DALI bedside lamps and vanity lamps in guest rooms, allowing guests to adjust brightness and color temperature via KNX panels; sets staircase delay mode in corridors, automatically turning off lights when no one is present to reduce hotel energy consumption, and fault information is synchronized to the hotel operation and maintenance background.
4. Residential Public Area Lighting: Used in community corridors, lobbies and underground garages, separately controlling public lighting and emergency lighting via 2 channels. Timer programs realize day/night brightness switching, and emergency mode links KNX security system to automatically turn on full-bright mode.
5. Classroom Lighting of Educational Institutions: Adapts to classrooms of primary and secondary schools and training institutions, grouping controls desk lighting and blackboard lighting. Supports teachers to switch "Lecture Mode" and "Self-study Mode" with one click via KNX panels, adjusts color temperature to protect eyesight, and operating hours counter facilitates batch lamp maintenance by schools.

4. Core Values

• Integrated Integration Advantage: Integrates protocol conversion, DALI power supply and group control, eliminating the need for additional power supplies and controllers, simplifying system architecture and reducing project procurement and installation costs.
• Dual-channel Efficient Control: 2 independent DALI channels enable zonal independent control, and 64-device access capability per channel meets large-scale lighting control needs of small and medium-sized spaces.
• Rich Lighting Experience: Supports basic color lighting and multi-scene control, adapts to diverse lighting needs, and is compatible with emergency lighting devices, balancing daily use and safety guarantee.
• Precise Operation and Maintenance Cost Reduction: Built-in fault monitoring and operating hours counter, real-time fault reporting reduces manual inspection workload and extends equipment service life.
• Easy Configuration and Compatibility: Supports ETS software standardized configuration, compatible with mainstream KNX and DALI 2 devices, adapts to new and old building lighting renovation projects, and facilitates later expansion.
