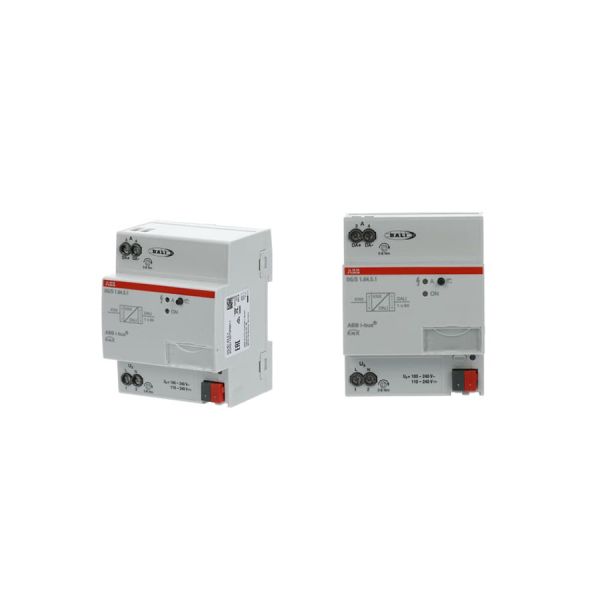

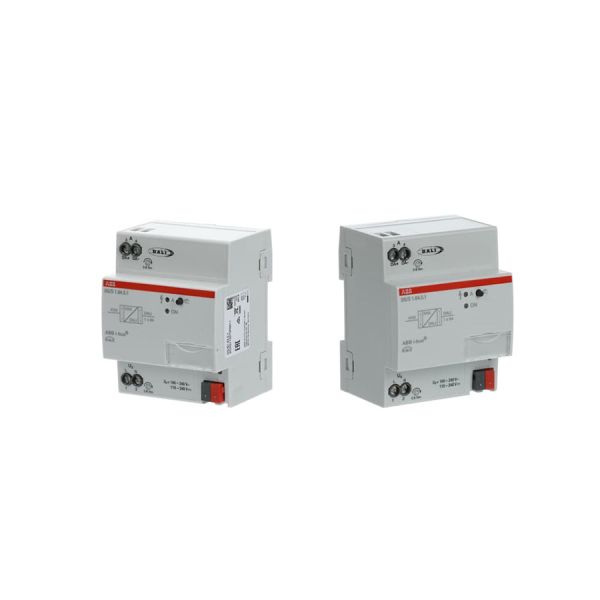

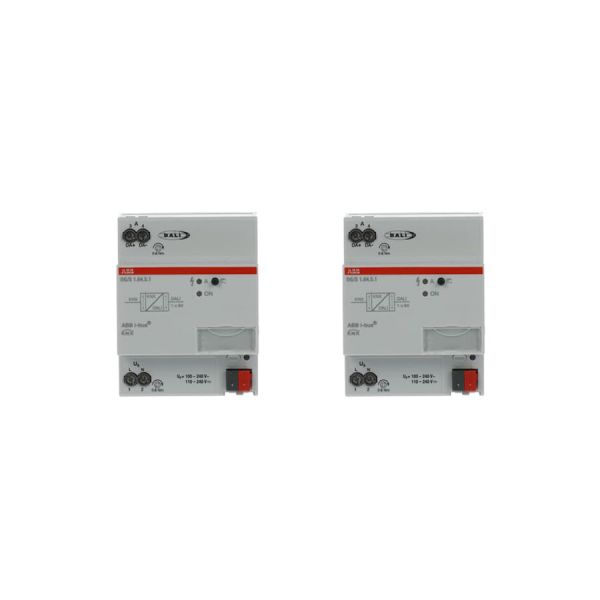

DG/S1.64.5.1 ABB KNX DALI Gateway Premium 1 Fold MDRC
DG/S1.64.5.1 ABB KNX DALI Gateway Premium 1 Fold MDRC
DG/S1.64.5.1 ABB KNX DALI Gateway Premium 1 Fold MDRC
DG/S1.64.5.1 ABB KNX DALI Gateway Premium 1 Fold MDRC
DG/S1.64.5.1 ABB KNX DALI Gateway Premium 1 Fold MDRC
DG/S1.64.5.1 ABB KNX DALI Gateway Premium 1 Fold MDRC
Specifications
Brand Name :
ABB
Model Number :
DG/S1.64.5.1
Certification :
CE
MOQ :
1
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Original Case
Brand :
ABB
Product Id :
2CDG110273R0011
Number of Ourput :
1
Number of Led :
1
Communication Interface :
DALI
Color :
Light Grey
Description
DG/S1.64.5.1 ABB DALI Gateway Premium 1-Fold MDRC

DG/S1.64.5.1 Product Description


ABB DG/S1.64.5.1 is a premium KNX DALI Gateway within the ABB i‑bus® KNX system, serving as a single‑master DALI controller certified to DALI‑2 (EN 62386). It enables seamless integration and control of DALI/DALI‑2 lighting devices via the KNX bus, with an integrated DALI power supply for simplified installationABB. Supporting up to 64 DALI devices per channel, ABB DG/S1.64.5.1 facilitates individual, group, broadcast, and scene‑based control, along with comprehensive status feedback through KNX. It is compatible with DALI device types including DT1 (emergency lighting) and DT8 (tunable white/RGBW), and can control other DALI devices (e.g., DT6) using standard commandsABB. The gateway integrates advanced functions such as slave, staircase, force, block, and scene operations, as well as color control features like Dim2Warm and HCLABB. ABB DG/S1.64.5.1 also offers extensive diagnostics, fault reporting, and emergency lighting test capabilities via KNX, making it ideal for smart commercial and residential lighting control systemsABB.


ABB DG/S1.64.5.1 Technical Parameters


Parameter Specification
Ordering Code 2CDG110273R0011
Bus Systems KNX (TP), DALI (DALI‑2 certified)
DALI Outputs 1 channel, up to 64 DALI devices
Power Supply 100–240 V AC, 50/60 Hz; 110–240 V DC (85–265 V AC range)
Total Power Consumption Max 6 W
Total Current Consumption Max 25 mA
KNX Power Consumption Max 210 mW (10 mA max current draw)
Integrated DALI Power Supply Yes, 250 mA max supply current
Control Features 16 lighting groups, 16 scenes, broadcast control, status feedback per DALI device
Supported DALI Device Types DT1 (emergency), DT8 (tunable white/RGBW), DT6 (via standard commands)
Advanced Functions Slave, staircase, force, block, scene; Dim2Warm, HCL, 4 sequencers per output
Mounting 35 mm DIN rail (EN 60715), 4‑module width (70 mm)
Dimensions (H×W×D) 90 × 70 × 63.5 mm
Weight (Net) 0.13 kg
Operating Temperature ‑5 °C to +45 °C
Storage Temperature ‑25 °C to +55 °C
Humidity Max 93% (non‑condensing)
Protection Rating IP20
Certifications KNX (EN 50090), DALI‑2 (IEC 62386), CE
