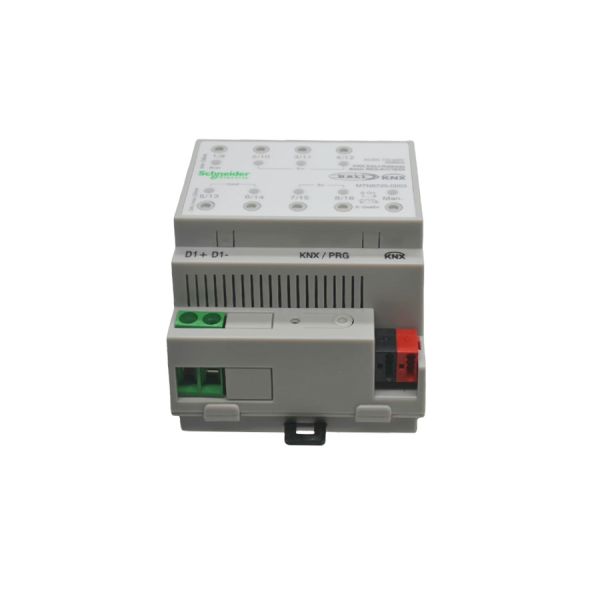

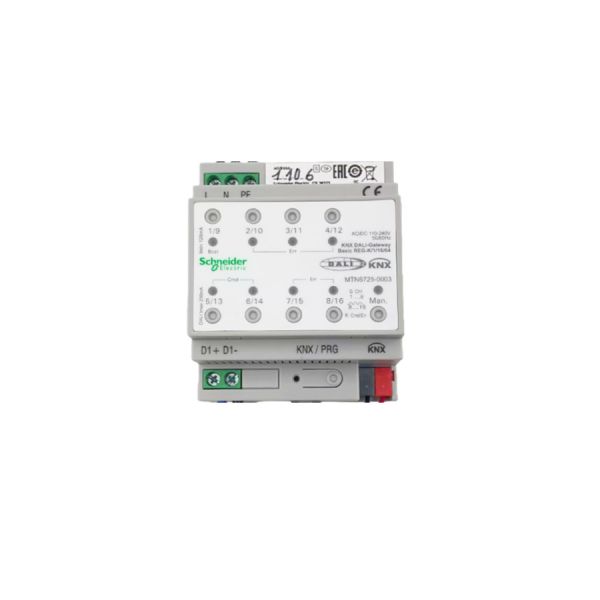

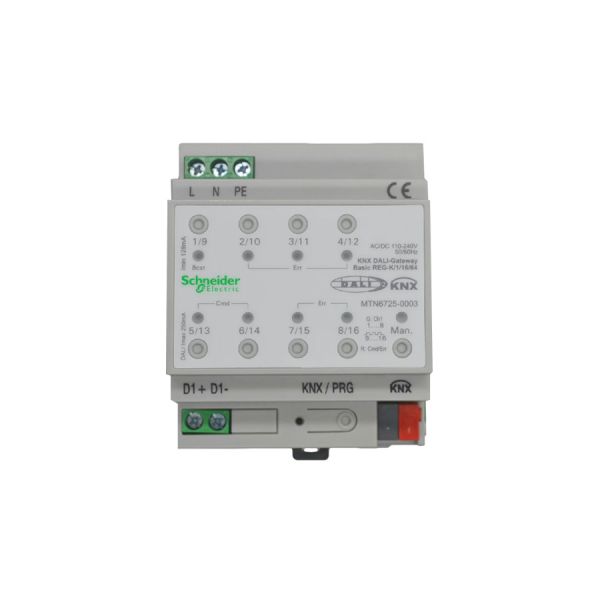

Schneide KNX DALI Gateway 240V 60Hz MTN6725-0003 DIN Rail Mount For Intelligent Lighting
Schneide KNX DALI Gateway 240V 60Hz MTN6725-0003 DIN Rail Mount For Intelligent Lighting
Schneide KNX DALI Gateway 240V 60Hz MTN6725-0003 DIN Rail Mount For Intelligent Lighting
Schneide KNX DALI Gateway 240V 60Hz MTN6725-0003 DIN Rail Mount For Intelligent Lighting
Schneide KNX DALI Gateway 240V 60Hz MTN6725-0003 DIN Rail Mount For Intelligent Lighting
Schneide KNX DALI Gateway 240V 60Hz MTN6725-0003 DIN Rail Mount For Intelligent Lighting
Specifications
Brand Name :
Schneide
Model Number :
MTN6725-0003
Certification :
CE/RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Number of output channels :
1
Product or component type :
DALI gateway
Power supply input current :
5 mA
Mounting support :
DIN Rail
otal number of 18 mm modules :
4
rated operational voltage :
240V
Mounting Type :
DIN Rail
Power Consumption :
5W
Weight :
350 grams
Color :
White
Description
MTN6725-0003 Schneide KNX DALI Gateway - SpaceLogic Basic REG-K/1/16/64 240V 60Hz

A KNX-DALI protocol converter from Schneide Electric's SpaceLogic series, enabling seamless integration between KNX building control systems and DALI lighting systems.

Core Parameters & Function Positioning
Product Overview

A core component for intelligent lighting control that serves as a protocol converter between KNX building automation systems and DALI lighting systems.

Model Interpretation
  • MTN6725-0003: Product SKU, single-channel version
  • REG-K/1/16/64: 1 KNX channel, supports 16 DALI groups, controls 64 DALI devices, and 16 preset scenes
Parameter Item Detailed Specifications
Communication Interfaces 1×KNX interface (supports KNX TP/IP), 1×DALI interface (D+, D-, DC 16-18V)
Power Supply 100-240V AC/DC, 50-60Hz (power consumption ≤9W); KNX bus auxiliary power: 24V DC/5mA
DALI Output Single channel, max 250mA, short-circuit protection, capable of driving 64 DALI electronic ballasts (ECGs)
Control Capabilities • Up to 64 DALI devices (ECGs)
• 16 device group controls
• 16 preset scenes
• Supports DT8 device color temperature/color control (RGB/XY/HSV)
Installation Method Standard 35mm DIN rail mounting, dimensions: 106×55×86mm (6TE)
Protection Class IP20, indoor installation
Compatibility Supports DALI-1 (DALI Classic) and DALI-2 standards, compatible with KNX Security
Software Support ETS5/ETS6 configuration tools, DCA V4.0.1.0, firmware V1.4.3
Core Functions
Protocol Conversion Hub
  • Converts control commands (on/off, dimming, color adjustment) from KNX systems into DALI protocol signals
  • Bidirectionally transmits DALI device status and fault information to KNX systems for two-way monitoring
  • Supports KNX Longframe communication to ensure stability for large data transmission
Powerful DALI Control Capabilities
  • Individual Device Control: Precisely controls any of the 64 DALI devices with independent on/off and dimming (0-100%)
  • Group Management: Divides 64 devices into 16 groups for zoned lighting control
  • Scene Presets: Stores 16 lighting scenes for one-click switching
  • Color Management: Compatible with DT8 intelligent lamps, supporting color temperature adjustment and full-color control
  • Status Monitoring: Real-time feedback of lamp operating status and fault information
Intelligent Lighting Management
  • Emergency Lighting Integration: Supports DALI standard emergency lamps with automatic periodic testing
  • Energy Optimization: Enables scheduled on/off and motion sensor linkage
  • Scene Fading: Supports smooth transitions of light brightness/color to avoid visual glare
Application Scenarios
Commercial Office Spaces

Unified management of lighting in public areas, meeting rooms, and workspaces with time-scheduled control and automatic brightness adjustment.

Hotels & Hospitality

Guest room control systems linking with door lock systems and public area lighting that adjusts based on foot traffic.

Education & Healthcare Buildings

Intelligent classroom lighting control and precise color temperature control in medical facilities.

Retail & Exhibition Spaces

Enhanced lighting for key areas and scenario-based lighting in product display zones.

Industrial & Infrastructure

High-reliability lighting control with fault early warning and intelligent management of transportation hubs.

Value & Advantages
Advantage Category Specific Performance
System Integration • Unified management of KNX and DALI systems
• Fewer controllers required, simplifying system architecture
Energy-Saving Benefits • Intelligent dimming reduces energy consumption by 20-40%
• Supports presence-based control
Maintenance Convenience • Remote monitoring and fault diagnosis
• Automatic alarm for lamp faults with precise positioning
Return on Investment • Typical ROI cycle: 1.5-2 years
• Long-term operating costs reduced by over 30%
Flexibility • Easy system expansion
• Supports post-installation function upgrades via firmware
Technical Specifications
Parameter Item Specification
Product Range SpaceLogic KNX
Product/Component Type DALI Gateway
Number of Output Channels 1
Bus Type KNX
Function Available Updatable software
Power Supply Input Current 5 mA
Mounting Support DIN rail
Total Number of 18 mm Modules 4
Rated Operational Voltage 100...240 V
Network Frequency 50/60 Hz
Communication Port Protocol DALI
Local Signalling LED
Market Segment Buildings, Commercial, Critical buildings, Lodging/hotel, School, Office, Small commercial
Summary

The MTN6725-0003 SpaceLogic KNX DALI Gateway Basic is a high-performance protocol converter that seamlessly connects KNX and DALI systems, providing flexible, energy-efficient intelligent lighting solutions for various building types. It integrates scattered lighting systems into a unified building management platform, making it ideal for modern buildings pursuing high comfort and energy efficiency.

Target Customers: System integrators, architects, facility managers, and projects seeking deep integration of intelligent lighting and building automation.
