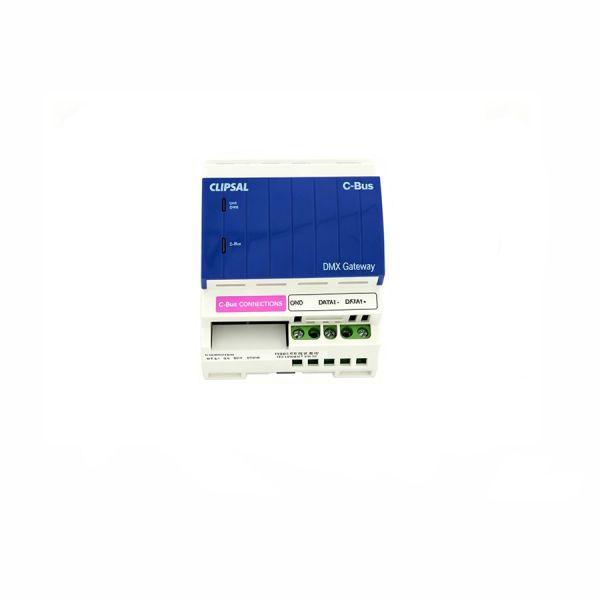

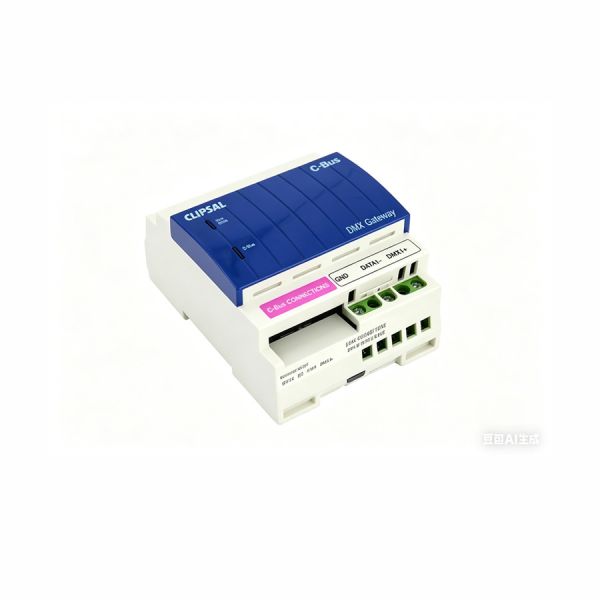

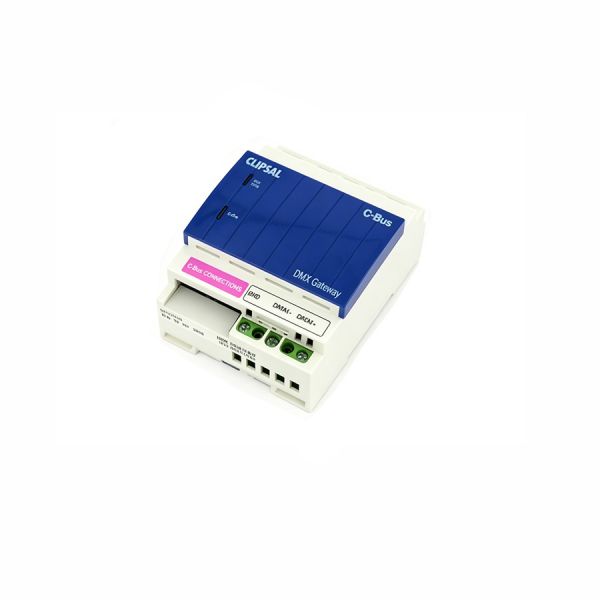

5500DMX - C-Bus to DMX512 Gateway Module for Smart Lighting & Stage Control Systems
5500DMX - C-Bus to DMX512 Gateway Module for Smart Lighting & Stage Control Systems
5500DMX - C-Bus to DMX512 Gateway Module for Smart Lighting & Stage Control Systems
5500DMX - C-Bus to DMX512 Gateway Module for Smart Lighting & Stage Control Systems
5500DMX - C-Bus to DMX512 Gateway Module for Smart Lighting & Stage Control Systems
5500DMX - C-Bus to DMX512 Gateway Module for Smart Lighting & Stage Control Systems
Specifications
Brand Name :
Schneider
Model Number :
5500DMX
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Description

Product Overview

The 5500DMX C-Bus DMX One-Way Gateway is a professional-grade protocol converter that bridges Clipsal C-Bus automation networks with DMX512 lighting systems. Designed for DIN rail mounting in standard electrical enclosures, this gateway maps C-Bus group addresses and light levels to a DMX-512-A interface, enabling seamless integration between building automation and professional lighting control.

Technical Specifications

Parameter Specification
Communication Protocol C-Bus to DMX-512-A
DMX Channels Up to 512 channels (single universe)
Installation DIN rail mount, 4M module width
Interface Cable 300mm integral cable
Dimensions (H×L×W) 100mm × 155mm × 110mm
Operating Voltage Powered via C-Bus network (15-36V DC)
Status Indication LED indicators for network and DMX status
Compliance RoHS, REACH compliant

Key Features

  • Maps C-Bus group addresses directly to DMX512 channel values
  • Supports leading-edge and trailing-edge dimming curves
  • One-way communication: C-Bus controls DMX, not vice versa
  • DIN rail form factor for easy integration into distribution boards
  • Compatible with standard DMX512-A compliant lighting fixtures
  • Supports up to 512 individually addressable DMX channels

Applications

  • Smart home lighting integration with DMX-compatible LED strips and fixtures
  • Commercial building automation linking C-Bus switches to DMX architectural lighting
  • Stage and venue lighting control from C-Bus wall panels and sensors
  • Museum and gallery accent lighting with programmable scene control
  • Hotel lobby and ballroom dynamic lighting scenarios
  • Integration with DMX-enabled emergency lighting systems

Why Choose 5500DMX?

The 5500DMX provides a reliable bridge between residential/commercial C-Bus infrastructure and professional-grade DMX lighting, making it the ideal solution for projects that require both building automation convenience and sophisticated lighting effects.

The L5508RVF is a professional-grade C-Bus 8-channel relay and dimmer module designed for robust industrial and commercial lighting control applications.
Product Overview

The 5500DMX C-Bus DMX One-Way Gateway is a professional-grade protocol converter that bridges Clipsal C-Bus automation networks with DMX512 lighting systems. Designed for DIN rail mounting in standard electrical enclosures, this gateway maps C-Bus group addresses and light levels to a DMX-512-A interface, enabling seamless integration between building automation and professional lighting control.

Technical Specifications
Parameter Specification
Communication Protocol C-Bus to DMX-512-A
DMX Channels Up to 512 channels (single universe)
Installation DIN rail mount, 4M module width
Interface Cable 300mm integral cable
Dimensions (H×L×W) 100mm × 155mm × 110mm
Operating Voltage Powered via C-Bus network (15-36V DC)
Status Indication LED indicators for network and DMX status
Compliance RoHS, REACH compliant
Key Features
  • Maps C-Bus group addresses directly to DMX512 channel values
  • Supports leading-edge and trailing-edge dimming curves
  • One-way communication: C-Bus controls DMX, not vice versa
  • DIN rail form factor for easy integration into distribution boards
  • Compatible with standard DMX512-A compliant lighting fixtures
  • Supports up to 512 individually addressable DMX channels
Applications
  • Smart home lighting integration with DMX-compatible LED strips and fixtures
  • Commercial building automation linking C-Bus switches to DMX architectural lighting
  • Stage and venue lighting control from C-Bus wall panels and sensors
  • Museum and gallery accent lighting with programmable scene control
  • Hotel lobby and ballroom dynamic lighting scenarios
  • Integration with DMX-enabled emergency lighting systems
Why Choose 5500DMX?
The 5500DMX provides a reliable bridge between residential/commercial C-Bus infrastructure and professional-grade DMX lighting, making it the ideal solution for projects that require both building automation convenience and sophisticated lighting effects.
