Specifications
Brand Name :
Schneider
Model Number :
SXWMPV9AX10002
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
ControlType :
Variable Air Volume
InstallationEnvironment :
Indoor HVAC Systems
MountingType :
Duct or Wall Mounted
OperatingTemperatureRange :
-20°C to 50°C
ActuatorType :
Modulating Damper Actuator
HumidityRange :
0% to 95% non-condensing
CommunicationProtocol :
BACnet MS/TP
Description

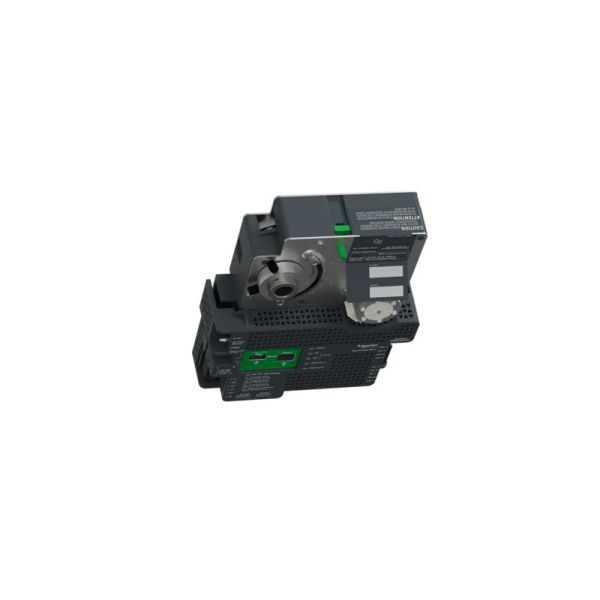

SXWMPV9AX10002 Schneider SpaceLogic MP-V-9A BACnet IP MSTP VAV 9pt TAA
The Schneider Electric SXWMPV9AX10002 (SpaceLogic MP-V-9A) is the flagship VAV field controller in the SpaceLogic MP-V series, offering the highest I/O count: 4 universal inputs, 3 digital Triac outputs, and 2 analog outputs across 9 total points. Supports BACnet/IP and BACnet MS/TP simultaneously.
The 2 analog outputs enable independent modulating control of two separate actuators — enabling complex VAV configurations such as fan-powered boxes with modulating hydronic reheat coils and primary damper.
Technical Specifications
Specification Value
Part Number SXWMPV9AX10002
Model SpaceLogic MP-V-9A
Communication Protocols BACnet/IP AND BACnet MS/TP (MSTP) — simultaneously
Network Interface Dual-port Ethernet switch (daisy-chain or star topology)
Total I/O Points 9
Universal Inputs (UI) 4 (temperature, CO2, pressure, occupancy, binary)
Digital Triac Outputs (DO) 3 (24 V Triac — fan, reheat stages, auxiliary)
Analog Outputs (AO) 2 (0-10 V independent modulating valve / actuator)
Integrated Actuator Yes — 10 N.m damper actuator
Integrated Airflow Sensor Yes — differential pressure, factory-calibrated
Power Supply Voltage 24 V AC +/-20%
Operating Temperature 32 to 122 degF (0 to 50 degC)
Dimensions 7.8 x 6.3 x 2.5 in. (198 x 161 x 63 mm)
Min. Firmware for MSTP v4.0.2 (EBO v4.0+ required)
Secure Communications BACnet/Secure Connect (BACnet/SC)
Certifications UL 916, UL 2043 Plenum, CE, RCM, ICES-003, EN 61000-6-2/3, FCC Part 15 Subpart B
Compatible Software EcoStruxure Building Operation (EBO) v4.0+
TAA Compliant Yes
Key Features
  • Integrated 10 N.m actuator
  • Factory-calibrated airflow sensor
  • Dual-port Ethernet switch
  • BACnet/SC secure communications
  • Native EcoStruxure Building Operation support
  • TAA compliant
Applications
The SXWMPV9AX10002 is specified for the most demanding VAV applications. In fan-powered VAV boxes with modulating hydronic reheat, dual analog outputs independently control the primary damper and heating valve. In BAS migration projects transitioning from MSTP to IP infrastructure, the MP-V-9A serves as a native dual-protocol node, eliminating protocol gateways at each zone. BACnet/SC provides encrypted communications meeting cybersecurity requirements for government and enterprise facilities.
