MN-S1-500 Schneider MicroNet VAV Room Temperature Sensor No Cover
MN-S1-500 Schneider MicroNet VAV Room Temperature Sensor No Cover
MN-S1-500 Schneider MicroNet VAV Room Temperature Sensor No Cover
MN-S1-500 Schneider MicroNet VAV Room Temperature Sensor No Cover
MN-S1-500 Schneider MicroNet VAV Room Temperature Sensor No Cover
MN-S1-500 Schneider MicroNet VAV Room Temperature Sensor No Cover
Specifications
Brand Name :
Schneider
Model Number :
MN-S1-500
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Channel Configuration :
16 independent control channels
Function :
Control electrical switches remotely
Color :
Light Grey
Power Consumption :
Approximately 10mA
Inputtype :
Binary Input
Rated Voltage :
230 V AC
Rated Current :
16A
Description

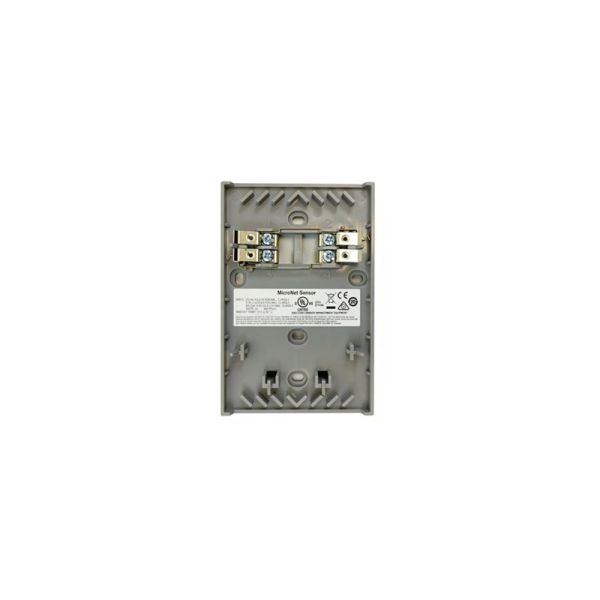

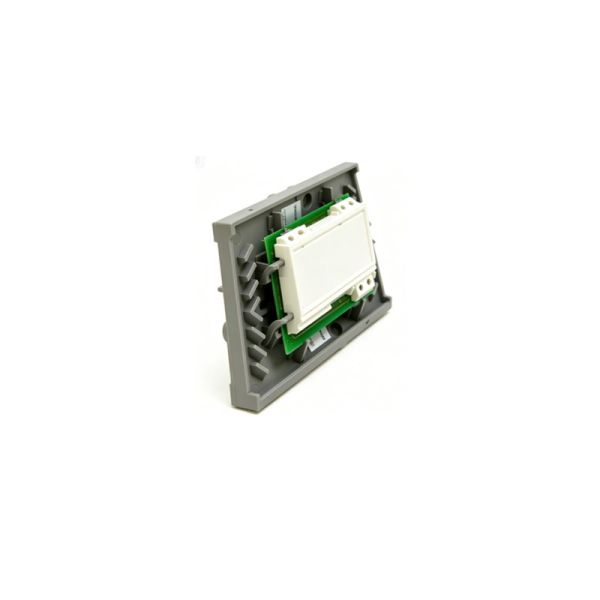

MN-S1-500 Schneider MicroNet VAV Room Temperature Sensor No Cover
The Schneider Electric MN-S1-500 is a wall-mounted digital room temperature sensor engineered for Variable Air Volume (VAV) HVAC zone monitoring in commercial and light industrial buildings. As a sensor-only device with no occupant-accessible controls or display, it delivers continuous, accurate zone temperature data to connected MicroNet VAV box controllers via the proprietary S-Link communication bus — a power-and-data combined link that eliminates the need for a separate power supply. The unit ships without a sensor cover; the DCQC-150-SE snap-on cover is available separately.
Technical Specifications
Part Number MN-S1-500
Sensor Type Precision Thermistor
Communication Protocol S-Link (proprietary MicroNet bus — power + data combined)
Power Supply Bus-powered via S-Link from the MicroNet controller
Temperature Sensing Range 32 to 122°F (0 to 50°C)
Temperature Accuracy ±2%
Humidity Operating Range 5% to 95% RH, non-condensing
Occupant Controls None (sensor only)
Display None
Dimensions 4.5 x 2.8 x 1.0 in. (114 x 71 x 25 mm)
Mounting Direct wall / 2x4 electrical box / 1/4 DIN box / surface box
Cover Not included — DCQC-150-SE available separately
Compatible Controllers MicroNet VAV series (MNL-V2R, MN-Flo, MN-Vx)
Certifications UL, cUL, CE, CSA, FCC Part 15 Class B
Compatible Software EcoStruxure Building Operation
Applications
The MN-S1-500 is deployed in environments where occupant access to setpoint controls must be restricted. Key applications include:
  • Multi-tenant commercial buildings for maintaining energy-efficient HVAC schedules without risk of unauthorized adjustment
  • Server rooms and IT closets to protect sensitive equipment from thermal excursions
  • Corridor and lobby installations benefiting from no-display, no-button simplicity
  • Retrofit projects replacing aging MicroNet sensors, providing cost-effective upgrades with full S-Link bus compatibility
