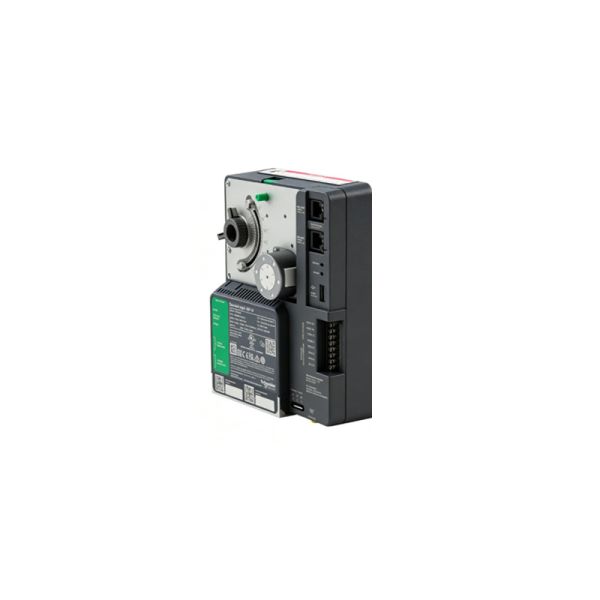

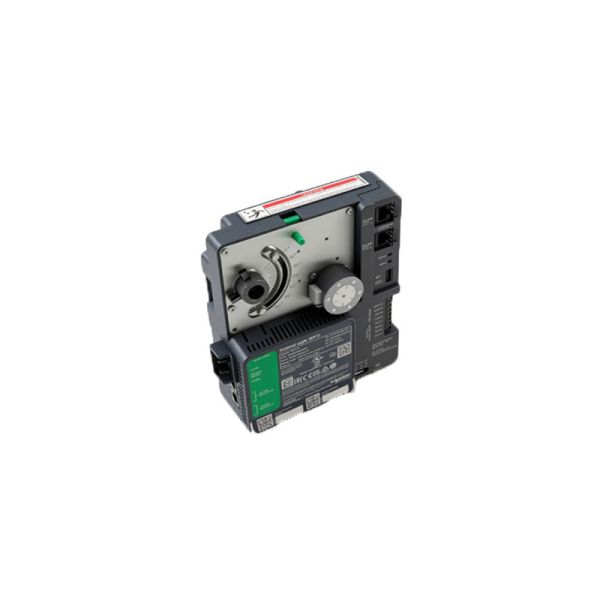

SXWRPV5A10001 Schneider SpaceLogic RP-V-5A BACnet/IP VAV Controller 5pt
SXWRPV5A10001 Schneider SpaceLogic RP-V-5A BACnet/IP VAV Controller 5pt
SXWRPV5A10001 Schneider SpaceLogic RP-V-5A BACnet/IP VAV Controller 5pt
SXWRPV5A10001 Schneider SpaceLogic RP-V-5A BACnet/IP VAV Controller 5pt
SXWRPV5A10001 Schneider SpaceLogic RP-V-5A BACnet/IP VAV Controller 5pt
SXWRPV5A10001 Schneider SpaceLogic RP-V-5A BACnet/IP VAV Controller 5pt
Specifications
Brand Name :
Schneider
Model Number :
SXWRPV5A10001
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
CommunicationProtocol :
BACnet MS/TP
DisplayType :
LCD with backlight
OutputType :
Analog and Digital Outputs
ControlAlgorithm :
PID Control
OverrideFunction :
Manual Override Available
ControlType :
Variable Air Volume
MountingType :
Duct or Wall Mounted
Description
SXWRPV5A10001 Schneider SpaceLogic RP-V-5A BACnet/IP VAV Controller 5pt
The Schneider Electric SXWRPV5A10001 (SpaceLogic RP-V-5A) is the five-point variant of the SpaceLogic RP-V VAV controller family. It adds 2 universal inputs and 3 digital/relay outputs over the RP-V-4A, making it suitable for VAV zones requiring fan control, electric reheat, or multiple binary actuators. Integrates a built-in 10 N.m damper actuator, factory-calibrated differential pressure airflow sensor, Bluetooth 5.1 wireless commissioning, and dual-port Ethernet switch. Particularly suited for fan-powered VAV boxes and zones requiring simultaneous damper, fan, and reheat control. TAA compliant.
Technical Specifications
Part Number SXWRPV5A10001
Model SpaceLogic RP-V-5A
Communication Protocols BACnet/IP (primary); Bluetooth 5.1 (commissioning)
Network Interface Dual-port Ethernet switch
Total I/O Points 5
Universal Inputs (UI) 2 (temperature, CO2, occupancy, binary sensors)
Digital / Relay Outputs (DO) 3 (fan enable, reheat stage 1, reheat stage 2, or auxiliary)
Integrated Actuator Yes — 10 N.m damper actuator (factory-fitted)
Integrated Airflow Sensor Yes — differential pressure, factory-calibrated
Integrated Wireless Bluetooth 5.1
Power Supply Voltage 24 V AC +/-15%
Operating Temperature 32 to 122°F (0 to 50°C)
Dimensions 7.9 x 6.6 x 2.6 in. (201 x 168 x 65 mm)
Recyclability 82%
Packaging Min. 70% recycled cardboard
Total Lifecycle Carbon Footprint 1,009 kg CO2 eq.
Certifications UL 916, UL 2043 Plenum, CE, RCM, ICES-003, EN 61000-6-2/3, FCC Part 15 Subpart C
Compatible Software EcoStruxure Building Operation (EBO), EcoStruxure Building Commissioning App
TAA Compliant Yes
Key Features
  • Five-point VAV controller with expanded I/O capabilities
  • Built-in 10 N.m damper actuator
  • Factory-calibrated differential pressure airflow sensor
  • Bluetooth 5.1 wireless commissioning
  • Dual-port Ethernet switch for daisy-chaining
  • Enhanced control for fan-powered VAV boxes
  • TAA compliance for government applications
Applications
The SXWRPV5A10001 is specified wherever VAV boxes include parallel fan units or electric reheat coils — the most common configurations in North American VAV systems. In laboratory HVAC systems, additional DO points support pressure-independent exhaust tracking. CO2 demand-controlled ventilation input supports ASHRAE 62.1 dynamic ventilation compliance for LEED credit documentation.
