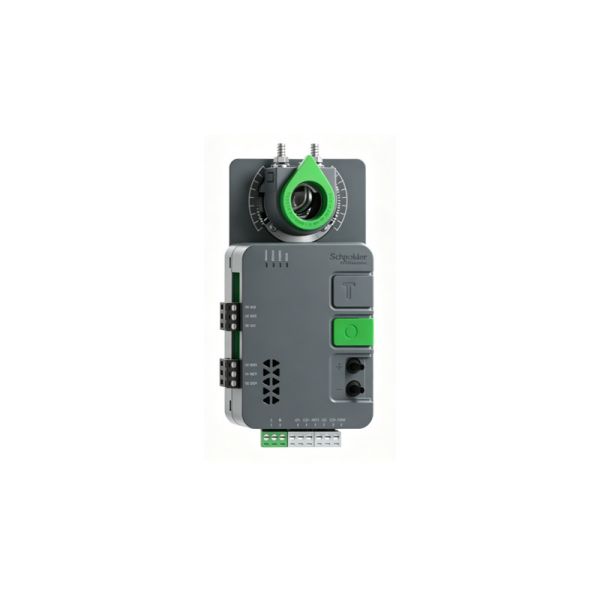

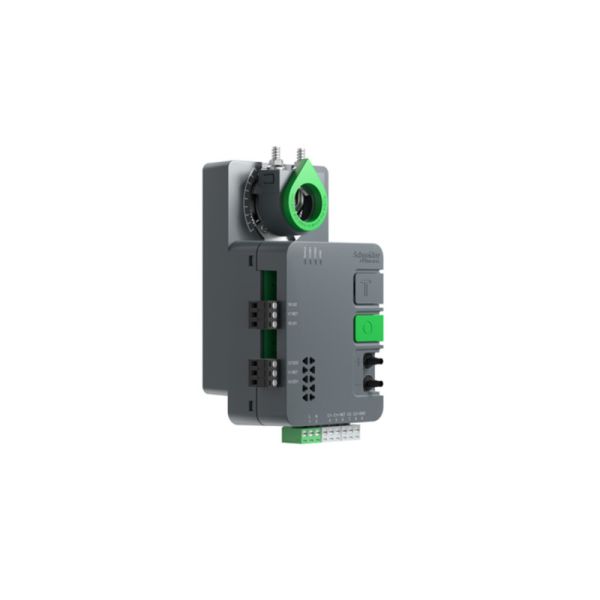

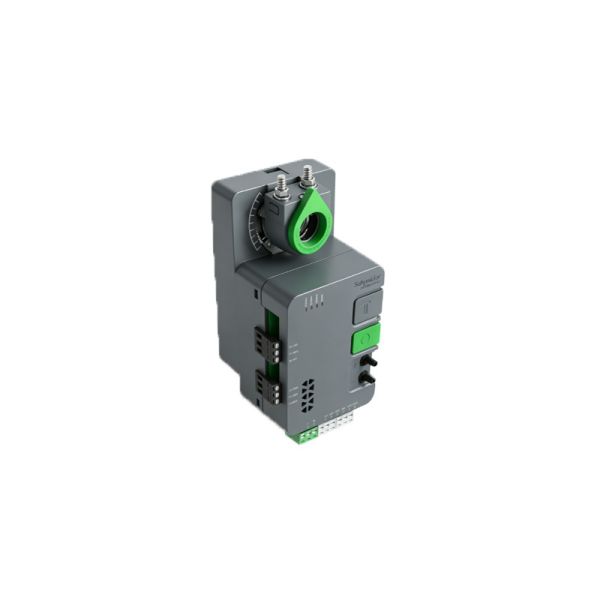

SXWCFV4A20001 Schneider Smart Field VAV Controller Field Bus 2UI 2DO
SXWCFV4A20001 Schneider Smart Field VAV Controller Field Bus 2UI 2DO
SXWCFV4A20001 Schneider Smart Field VAV Controller Field Bus 2UI 2DO
SXWCFV4A20001 Schneider Smart Field VAV Controller Field Bus 2UI 2DO
SXWCFV4A20001 Schneider Smart Field VAV Controller Field Bus 2UI 2DO
SXWCFV4A20001 Schneider Smart Field VAV Controller Field Bus 2UI 2DO
Specifications
Brand Name :
Schneider
Model Number :
SXWCFV4A20001
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Communication Protocol :
BACnet MS/TP
Application :
HVAC Systems
Actuator Type :
Modulating Damper Actuator
Control Type :
Variable Air Volume
Dimensions :
150mm x 100mm x 50mm
Mounting Type :
Duct or Wall Mounted
Material :
ABS Plastic Enclosure
Sensor Compatibility :
Temperature, Pressure, CO2 Sensors
Description
SXWCFV4A20001 Schneider Smart Field VAV Controller Field Bus 2UI 2DO
The Schneider Electric SXWCFV4A20001 (Smart Field VAV Controller) is a fully programmable field-bus-based VAV controller for building automation systems in the EcoStruxure Building ecosystem. With 4 I/O points (2 universal inputs + 2 digital outputs) and field bus connectivity supporting BACnet MS/TP or Modbus RS-485, it provides a cost-effective VAV zone control solution for standard single-duct applications.
Technical Specifications
Part Number SXWCFV4A20001
Model Smart Field VAV Controller
Communication Protocol Field Bus — BACnet MS/TP or Modbus RS-485
Total I/O Points 4
Universal Inputs (UI) 2 (temperature, CO2, occupancy, analog/binary sensors)
Digital Outputs (DO) 2 (damper open/close or auxiliary binary control)
Integrated Actuator No — external actuator connected via field bus
Power Supply Voltage 24 V AC +/-15%
Operating Temperature 32 to 122°F (0 to 50°C)
Dimensions Approx. 198 x 161 x 63 mm (similar to MP-V series)
Stock Status STK — normally stocked
Standard Lead Time 4 weeks (shortest in SpaceLogic VAV range)
Country of Origin China
Compatible Software EcoStruxure Building Operation (EBO)
Certifications CE, RCM, local building standards (GB in China)
Product Group K6 (Building Automation and Control)
Procurement Advantage: The SXWCFV4A20001 is the only normally-stocked controller in the SpaceLogic VAV line. All SpaceLogic MP-V and RP-V controllers carry 8-week IND lead times. For time-sensitive projects, this controller can reduce schedule risk by up to 4 weeks per procurement cycle.
Applications
  • Ideal for standard single-duct VAV zones in fast-track commercial construction in Asia-Pacific and the Middle East
  • In retrofit scenarios where existing VAV boxes have functional actuators, the external bus-connected actuator architecture allows retaining the actuator while upgrading only the controller — delivering significant cost savings
  • The 2UI + 2DO I/O covers the most common commercial VAV scenario: zone temperature + CO2 input, damper command + auxiliary output
