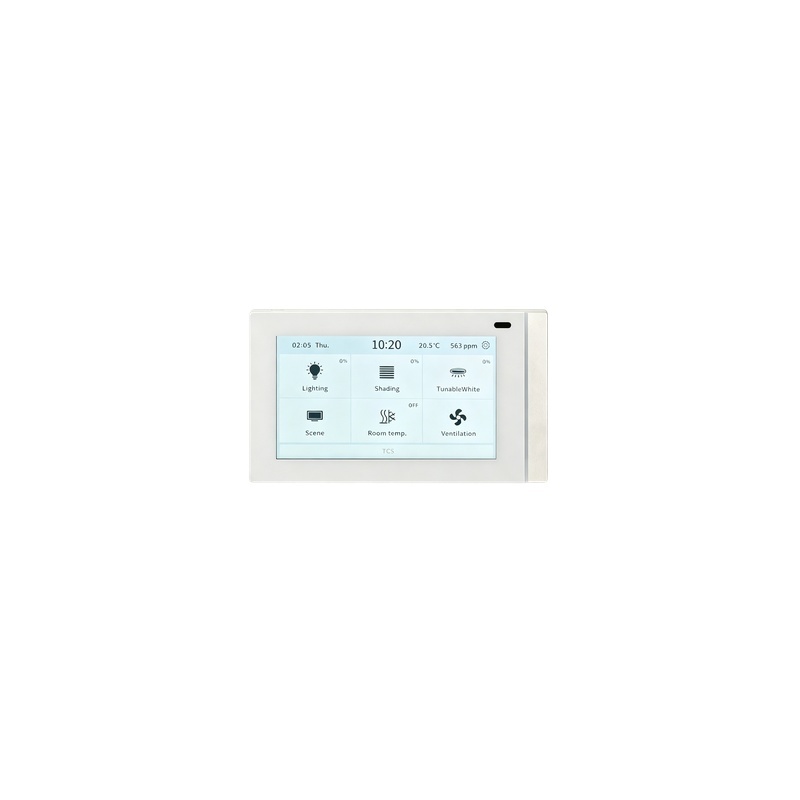

5WG1205-2AB12 TC5 5-Inch KNX Touch Panel White 480x854 Capacitive Display Multi-Function Lighting Curtain Scene Control
5WG1205-2AB12 TC5 5-Inch KNX Touch Panel White 480x854 Capacitive Display Multi-Function Lighting Curtain Scene Control
5WG1205-2AB12 TC5 5-Inch KNX Touch Panel White 480x854 Capacitive Display Multi-Function Lighting Curtain Scene Control
5WG1205-2AB12 TC5 5-Inch KNX Touch Panel White 480x854 Capacitive Display Multi-Function Lighting Curtain Scene Control
5WG1205-2AB12 TC5 5-Inch KNX Touch Panel White 480x854 Capacitive Display Multi-Function Lighting Curtain Scene Control
5WG1205-2AB12 TC5 5-Inch KNX Touch Panel White 480x854 Capacitive Display Multi-Function Lighting Curtain Scene Control
Specifications
Certification :
CE RoHS
Packaging Details :
Carton
Control Modes :
Automatic KNX sensor linkage
Power Supply :
AC 110-240V
Material :
Flame retardant plastic
Payment Terms :
T/T
Rated Operating Voltage :
230V AC, 50-60Hz
Delivery Time :
7 Days
Compatibility :
Works with various smart home systems
Statusindication :
LED indicators
Place of Origin :
EU
MOQ :
5
Model Number :
5WG1205 2AB12
Description
5WG1205-2AB12 TC5 5-Inch KNX Touch Panel
Premium 5-inch KNX touch panel featuring a high-resolution 480×854 pixel capacitive color touchscreen display. This advanced control terminal serves as a comprehensive room automation interface for managing lighting, curtains/blinds, scenes, and temperature control from a single elegant device.
Product Overview

The 5WG1205-2AB12 TC5 supports up to 15 customizable function pages, providing extensive control capabilities for complex room automation scenarios. The sleek white design (UP205/12) complements modern interior aesthetics.

Technical Specifications
Protocol KNX TP (Twisted Pair) compliant with EN 50090
Display 5-inch IPS color LCD (480×854 pixels)
Touch Technology Projected capacitive touch (multi-point)
Display Colors 16.7 million (24-bit RGB)
Brightness 350 cd/m² (adjustable)
Function Pages Up to 15 customizable pages
KNX Objects Up to 200 communication objects
Temperature Sensor Built-in NTC for room temperature measurement
Temperature Range 0°C to 50°C (measurement)
Light Sensor Built-in ambient light sensor for auto-brightness
Proximity Sensor Built-in proximity sensor for wake-on-approach
Power Supply KNX bus powered (no external supply required)
Bus Current <10mA typical
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +60°C
Humidity 10% to 90% RH (non-condensing)
Mounting Embedded wall-mount (standard 86-type box)
Dimensions 86mm x 86mm x 11mm
Protection IP20
Certifications CE, KNX certified
Languages Multi-language support (Chinese, English, etc.)
Key Features
  • High-resolution 5-inch capacitive touchscreen
  • Multi-function lighting, curtain, and scene control
  • Built-in temperature and ambient light sensors
  • Proximity sensor for wake-on-approach functionality
  • KNX bus powered - no external power supply required
  • Up to 15 customizable function pages
  • Compact design with standard 86-type box mounting
Application Scenarios

The TC5 5-inch touch panel is designed for luxury hotel suites, high-end residential projects, executive offices, and smart meeting rooms.

In hotel applications, it serves as the central room control interface, allowing guests to manage lighting scenes (welcome, sleep, reading, movie), curtain/shade control, room temperature adjustment, and do-not-disturb settings from a single elegant device.

In residential applications, it provides whole-home automation control with customizable interfaces for living rooms, bedrooms, and entertainment areas. The built-in temperature and light sensors support intelligent automation for energy optimization.
