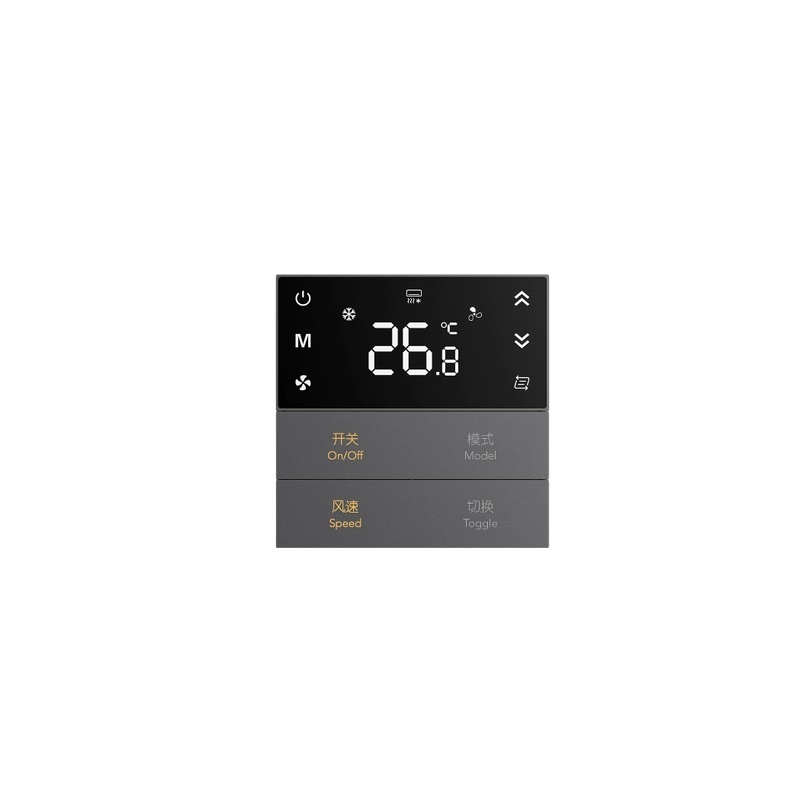

MT22001 ODM KNX Thermostat 4 Backlit Scene Keys AC/Heating/Fresh Air Fan Coil PM2.5 AQI 86 Box
MT22001 ODM KNX Thermostat 4 Backlit Scene Keys AC/Heating/Fresh Air Fan Coil PM2.5 AQI 86 Box
MT22001 ODM KNX Thermostat 4 Backlit Scene Keys AC/Heating/Fresh Air Fan Coil PM2.5 AQI 86 Box
MT22001 ODM KNX Thermostat 4 Backlit Scene Keys AC/Heating/Fresh Air Fan Coil PM2.5 AQI 86 Box
MT22001 ODM KNX Thermostat 4 Backlit Scene Keys AC/Heating/Fresh Air Fan Coil PM2.5 AQI 86 Box
MT22001 ODM KNX Thermostat 4 Backlit Scene Keys AC/Heating/Fresh Air Fan Coil PM2.5 AQI 86 Box
Specifications
Control Modes :
Automatic KNX sensor linkage
MOQ :
5
Model Number :
MT22001
Packaging Details :
Carton
Certifications :
CE / UL / RoHS
Delivery Time :
7 Days
Statusindication :
LED indicators
Surface Treatment :
Anti-glare
Viewing Angle :
178 degrees
Payment Terms :
T/T
Speakers :
Built-in stereo speakers
Place of Origin :
CN
Brand Name :
ODM
Touch Type :
Flagship capacitive multi-touch
Description
MT22001 ODM KNX Thermostat 4 Backlit Scene Keys AC/Heating/Fresh Air Fan Coil PM2.5 AQI 86 Box
Product Overview

The MT22001 is a KNX/EIB multifunction thermostat panel featuring four backlit scene keys and a keyless (knob-free) design that maintains a clean, modern appearance. The plastic keys utilize laser-engraved translucent backlighting, ensuring clear visibility of icons and text while providing tactile comfort in low-light environments.

Key Features
  • Complete air-conditioning control: On/off switching, four operating modes (cooling, heating, ventilation, dehumidification)
  • Three fan speeds and setpoint temperature adjustment with ±0.5°C accuracy
  • Integrated environmental monitoring: Humidity sensor and PM2.5/PM10/AQI air quality monitoring
  • Comprehensive display showing AC operating mode, room temperature, humidity, and AQI simultaneously
  • Output control for floor-heating, fresh-air systems, and fan-coil units
  • Four configurable scene keys for scene, dimming, or curtain control
  • °C/°F unit switching capability for international markets
Technical Specifications
Power Supply KNX bus (≤12 mA, ≤360 mW) with optional 24V DC auxiliary supply (≤30 mA, <1 W)
Mounting Standard 86×86 mm flush-mount box
Panel Dimensions 86×86×10.5 mm with metal frame finish
Operating Temperature -5°C to +45°C at up to 90% relative humidity
Communication KNX/EIB standard
Applications & Customization

Designed for hotel, residential, and commercial HVAC control projects, the MT22001 supports automatic fresh-air ventilation linkage control based on indoor air quality data. As an ODM platform, it offers customization of key icons, text, display content, and function logic to meet specific project requirements.

Commissioning is performed with standard KNX ETS tools, ensuring seamless integration with existing KNX installations and efficient project deployment.
