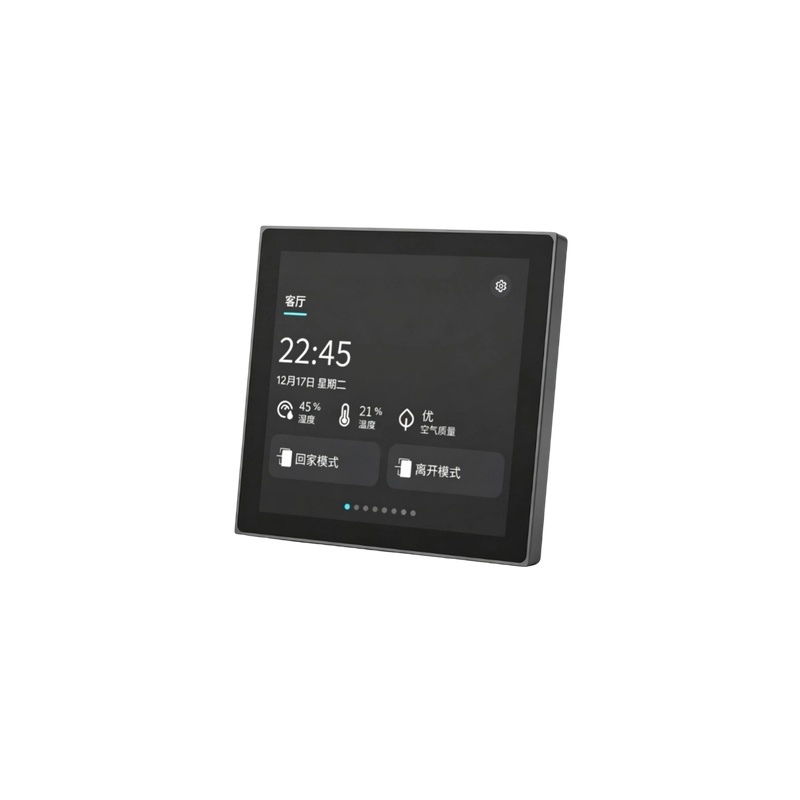

MT11001 ODM KNX 4'' HD Touch Panel 480x480 RGB RGBW Dimming Scene Curtain HVAC IR Wake 86 Box
MT11001 ODM KNX 4'' HD Touch Panel 480x480 RGB RGBW Dimming Scene Curtain HVAC IR Wake 86 Box
MT11001 ODM KNX 4'' HD Touch Panel 480x480 RGB RGBW Dimming Scene Curtain HVAC IR Wake 86 Box
MT11001 ODM KNX 4'' HD Touch Panel 480x480 RGB RGBW Dimming Scene Curtain HVAC IR Wake 86 Box
MT11001 ODM KNX 4'' HD Touch Panel 480x480 RGB RGBW Dimming Scene Curtain HVAC IR Wake 86 Box
MT11001 ODM KNX 4'' HD Touch Panel 480x480 RGB RGBW Dimming Scene Curtain HVAC IR Wake 86 Box
Specifications
Place of Origin :
CN
Model Number :
MT11001
Payment Terms :
T/T
Protection :
Electrical isolation between segments
Packaging Details :
Carton
Compatibility :
Works with various smart home systems
Delivery Time :
7 Days
Product Type :
KNX Remote Temperature Sensor
Installation :
Wall-mounted
Special Feature :
Manual Override / Local Operation
Brand Name :
ODM
Interface Features :
Supports custom UI layout
MOQ :
5
Description
MT11001 ODM KNX 4" HD Touch Panel
Product Overview

The MT11001 is a KNX/EIB bus-powered 4-inch high-definition touch screen smart panel engineered for modern residential and commercial building automation. Built around a 480x480 TFT capacitive touchscreen with true-color rendering, the panel delivers a bright, responsive user interface available in both Chinese and English.

Multiple customizable control pages let installers and end users tailor the layout to daily routines and project branding, making it an ideal solution for personalized automation systems.
Core Control Capabilities
  • Lighting Control: On/off switching and dimming with full RGB/RGBW color control and correlated color temperature (CCT) adjustment
  • Scene Control: Comprehensive scene management for different room environments
  • Curtain/Blind Control: Integrated management of window coverings
  • Climate Management: Air conditioning, fresh-air ventilation and floor-heating control
  • Built-in Sensors: Temperature and humidity sensors display indoor climate conditions directly on the home screen
  • Proximity Sensor: Infrared sensor (30 mm detection) automatically wakes display when approached
Technical Specifications
Display 4-inch TFT capacitive touchscreen, 480x480 resolution, true-color rendering
Power Supply KNX/EIB bus (21–30 V DC, ≤12 mA, ≤360 mW) with optional 24 V DC auxiliary supply (<95 mA, <2.28 W)
Installation Standard 86×86 mm flush-mount box, panel dimensions: 86×86×7.3 mm
Operating Environment -5 °C to +45 °C, up to 90% relative humidity (non-condensing)
Interface Chinese and English language support with customizable control pages
Construction Premium PC faceplate with aluminum metal frame
Integration & Customization

As a standard KNX device, the MT11001 integrates seamlessly with the wider KNX ecosystem and can be commissioned, monitored and updated through standard ETS engineering tools alongside other KNX components.

The flexible ODM platform supports customization of interface language, control pages and function allocation according to project requirements, making it an ideal choice for branded smart home and smart building projects seeking product differentiation and fast time-to-market.
