Specifications
Model Number :
MT22002
Packaging Details :
Carton
Statusindication :
LED indicators
Delivery Time :
7 Days
Controltype :
Relay-based
Material :
Flame retardant plastic
Certifications :
CE / UL / RoHS
Payment Terms :
T/T
Control Type :
Manual and Remote
Speakers :
Built-in 2W stereo speakers
MOQ :
5
Place of Origin :
CN
Brand Name :
ODM
Control Modes :
Automatic KNX sensor linkage
Description

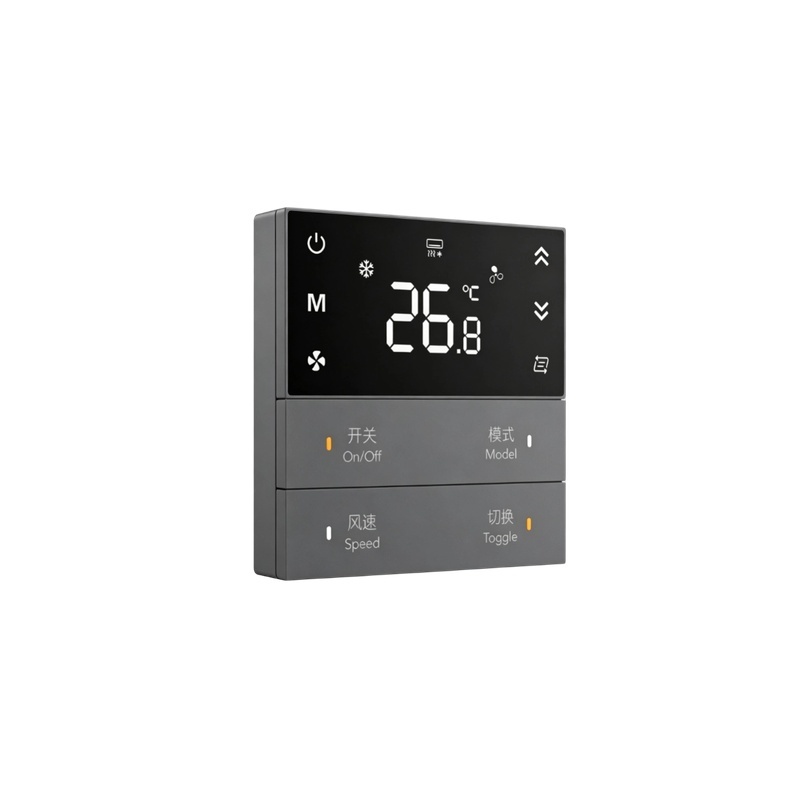

MT22002 ODM KNX Thermostat Metal Keys Dot Lights AC Heating Fresh Air Fan Coil PM2.5 AQI 86 Box
Premium Metal Key Construction

The MT22002 features four metal scene keys with dot indicator lights and engraved markings, delivering premium tactile feedback and long-term durability. The dot lights provide clear status visibility in dark environments—superior to plastic key alternatives.

Advanced HVAC Control
  • Air conditioning on/off switching with status feedback
  • Four operating modes: cooling, heating, ventilation, and dehumidification
  • Three fan speeds with precise setpoint adjustment (±0.5°C accuracy)
  • Temperature display in °C/°F
  • Real-time display of AC status, room temperature, humidity, and AQI readings
Environmental Monitoring

Built-in humidity sensor and PM2.5/PM10/AQI air quality sensing continuously track indoor conditions to support healthy living and working environments.

Comprehensive Output Control
  • Floor-heating output control
  • Fresh-air output with system control
  • Fan-coil unit control
  • Complete centralized HVAC management from one panel
Configurable Scene Control

The four metal keys are KNX-configurable for scene, dimming, or curtain control, providing flexibility across different project requirements and simplifying room-level control layouts.

Power & Commissioning
Power Source Current Consumption Power Consumption
KNX Bus ≤12 mA ≤360 mW
Optional 24V DC Auxiliary ≤30 mA <1 W

Commissioned with standard ETS tools as part of the wider KNX ecosystem.

Physical Specifications
Housing Material Mounting Panel Dimensions
Zinc-alloy metal frame Standard 86×86 mm flush-mount box 86×86×10.5 mm
Environmental Ratings
Operating Temperature Storage Temperature Transport Temperature
-5°C to +45°C -25°C to +55°C -25°C to +70°C
Customization & Applications

As an ODM platform, the MT22002 supports full customization of key icons, text, display content, and control logic per project requirements. The zinc-alloy frame is available in multiple finishes to match interior design schemes.

Ideal for hotels, villas, high-end residences, and commercial projects where material quality and visual refinement are decisive factors.
