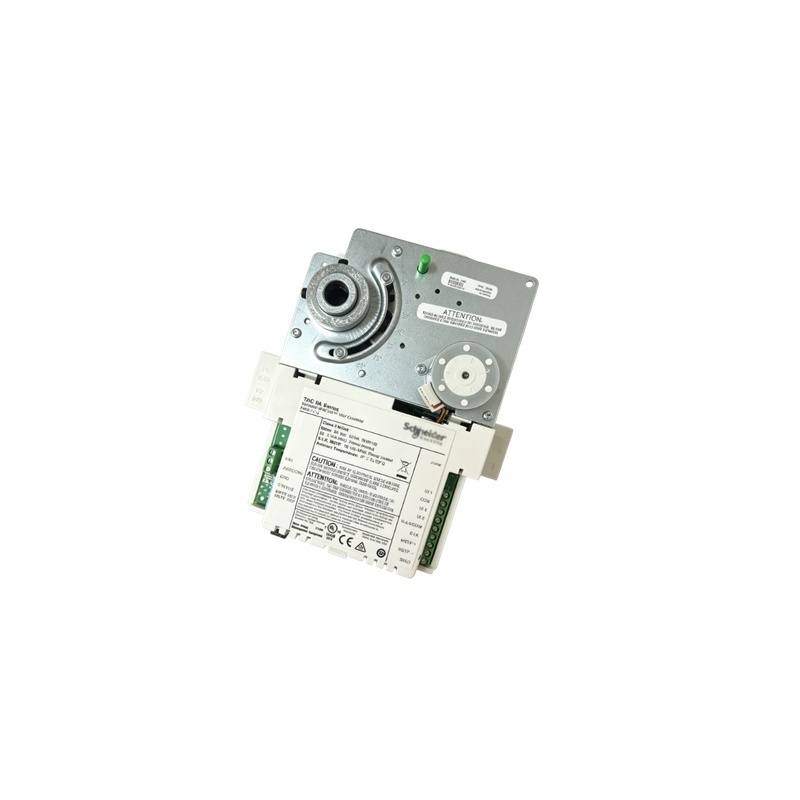

MNB-V1-2 Schneider MN BACnet VAV Controller Pressure Independent Zone HVAC Damper Smart Building
MNB-V1-2 Schneider MN BACnet VAV Controller Pressure Independent Zone HVAC Damper Smart Building
MNB-V1-2 Schneider MN BACnet VAV Controller Pressure Independent Zone HVAC Damper Smart Building
MNB-V1-2 Schneider MN BACnet VAV Controller Pressure Independent Zone HVAC Damper Smart Building
MNB-V1-2 Schneider MN BACnet VAV Controller Pressure Independent Zone HVAC Damper Smart Building
MNB-V1-2 Schneider MN BACnet VAV Controller Pressure Independent Zone HVAC Damper Smart Building
Specifications
SensorCompatibility :
Temperature, Pressure, CO2 Sensors
Payment Terms :
T/T
Actuator Type :
Modulating Damper Actuator
Delivery Time :
7 Days
Mounting Type :
Duct or Wall Mounted
Certification :
CE RoHS
Control Modes :
Automatic KNX sensor linkage
Packaging Details :
Carton
Application :
HVAC Systems
Place of Origin :
EU
Control Type :
Variable Air Volume
MOQ :
5
Model Number :
MNB-V1-2
Color :
Light Grey
Brand Name :
Schneider
Description
MNB-V1-2 Schneider MN BACnet VAV Controller Pressure Independent Zone HVAC Damper Smart Building

The Schneider Electric MNB-V1-2 is a BACnet VAV controller designed for zone-level airflow management in smart building applications. This pressure-independent controller integrates seamlessly into BACnet/IP and MS/TP networks, utilizing advanced control algorithms to optimize comfort and energy efficiency.

Technical Specifications
Communication
  • Protocol: BACnet MS/TP (RS-485), BACnet/IP
  • Profile: B-AAC
  • Baud Rate: 9600-76800 bps
  • Objects: Up to 128
Inputs & Outputs
  • AI: 4 universal (0-10V/4-20mA/10k NTC)
  • DI: 4 dry contact (pulse counting)
  • AO: 2 x 0-10V for damper control
  • DO: 4 relay (2A @ 24VAC)
Hardware
  • Processor: 32-bit ARM with FPU
  • Memory: 512KB Flash, 128KB RAM
  • Power: 24VAC/DC +/-10%, 15VA
  • Operating Temperature: 0°C to 50°C
  • Mounting: DIN-rail or panel
  • I/O Expansion: Remote modules via MS/TP
Certifications BTL, CE, UL, FCC
Application Scenarios

Ideal for office buildings, hospitals, schools, and retail environments. The controller integrates with SmartX and EcoStruxure building management systems for comprehensive VAV box control with reheat, demand-controlled ventilation based on CO2 levels, and occupancy-based airflow management. Supports energy optimization strategies including optimal start/stop, night setback, holiday scheduling, and peak demand management.
