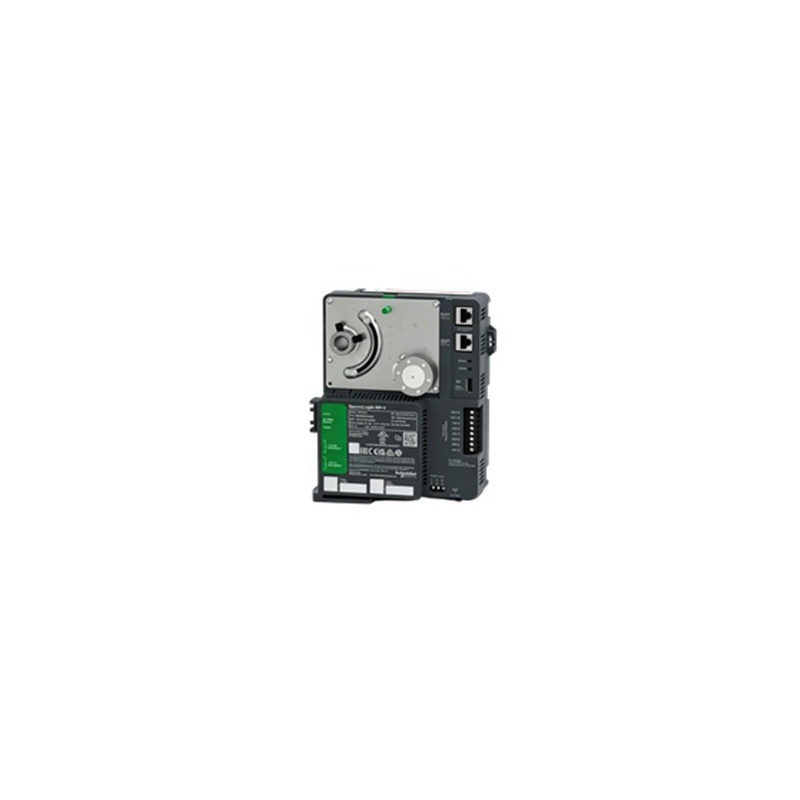

SXWRPV4A10001 Schneider SpaceLogic RP-V 4-Point VAV Controller Built-In Actuator Airflow Sensor Duct Mounted
SXWRPV4A10001 Schneider SpaceLogic RP-V 4-Point VAV Controller Built-In Actuator Airflow Sensor Duct Mounted
SXWRPV4A10001 Schneider SpaceLogic RP-V 4-Point VAV Controller Built-In Actuator Airflow Sensor Duct Mounted
SXWRPV4A10001 Schneider SpaceLogic RP-V 4-Point VAV Controller Built-In Actuator Airflow Sensor Duct Mounted
SXWRPV4A10001 Schneider SpaceLogic RP-V 4-Point VAV Controller Built-In Actuator Airflow Sensor Duct Mounted
SXWRPV4A10001 Schneider SpaceLogic RP-V 4-Point VAV Controller Built-In Actuator Airflow Sensor Duct Mounted
Specifications
Model Number :
SXWRPV4A10001
Type :
Variable Air Volume Controller
Delivery Time :
7 Days
Control Type :
Variable Air Volume
Packaging Details :
Carton
SensorType :
Temperature and Pressure Sensors
MOQ :
5
Installation Type :
Wall-mounted or embedded
Payment Terms :
T/T
Installationenvironment :
Indoor HVAC Systems
Certification :
CE RoHS
Timer Function :
Supports scheduling and timer settings
Place of Origin :
EU
Adjustable Parameters :
Setpoint temperature, airflow setpoint
Brand Name :
Schneider
MountingOptions :
Screw or Snap-in
Description
Schneider SpaceLogic RP-V 4-Point VAV Controller with Built-In Actuator & Airflow Sensor
The Schneider Electric SXWRPV4A10001 SpaceLogic RP-V 4-Point VAV Controller is an integrated variable air volume (VAV) controller designed for duct-mounted installation. This innovative controller combines a BACnet controller, damper actuator, and airflow sensor in a single compact unit, simplifying VAV box installation and commissioning. The RP-V controller provides precise zone-level airflow control for optimal comfort and energy efficiency.
Technical Specifications
Communication Protocol BACnet/IP (Ethernet), BACnet MS/TP (RS-485)
BACnet Profile B-AAC (Advanced Application Controller)
Total I/O Points 4 points
Universal Inputs 2 points (0-10V / 4-20mA / thermistor)
Relay Outputs 2 points (Form A, 2A @ 250VAC)
Integrated Actuator 24VAC/DC motorized damper actuator
Actuator Torque 10 Nm
Integrated Airflow Sensor Differential pressure transducer
Airflow Range 0-2500 Pa (configurable)
Processor 32-bit ARM Cortex-M4
Memory 256KB Flash, 64KB RAM
Network 10/100 Mbps Ethernet or MS/TP
BACnet Objects Up to 100 objects
Power Supply 24VAC/DC +/-10%, 20VA max
Operating Temperature -10°C to +50°C
Mounting Duct-mounted on VAV box
Certifications BTL listed, CE, UL
Key Features
  • Integrated BACnet controller, actuator, and airflow sensor in single unit
  • Compact design for simplified VAV box installation
  • Precise zone-level airflow control
  • Reduced installation time and wiring complexity
  • Accurate airflow measurement and damper control
Application Scenarios
The RP-V 4-point VAV controller is designed for variable air volume terminal units in commercial office buildings, hotels, hospitals, and educational facilities. It provides precise zone-level airflow control for single-duct VAV boxes, dual-duct VAV systems, and pressure-independent VAV applications. The controller supports demand-controlled ventilation (DCV) based on CO2 sensing, occupancy-based scheduling, and integration with EcoStruxure Building Operation for centralized zone management.
