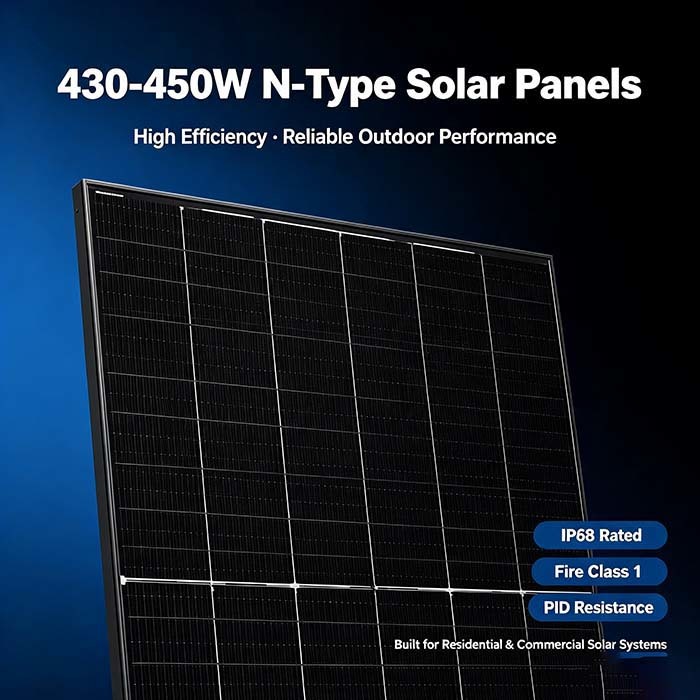

Durable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use
Durable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use
Durable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use
Durable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use
Specifications
Model Number :
KM410W-430W Solar Panel
Cell Dimension :
182x93mm
Price :
USD1-100/pcs
Packaging Details :
standard international carton packing
Cells Count :
108pcs
Delivery Time :
general two weeks, more quantity based on exact quantity
Module Dimension :
1722x1134x30mm
Supply Ability :
10000pcs/month
Module Weight :
20.5kg
Max System Voltage :
1000V/1500V DC
Payment Terms :
L/C,L/C
Max Power Output :
410W-430W
Operating Temperature :
-40°C to +85°C
Junction Box Rating :
25A, IP68, TUV
Place of Origin :
China
Connector Type :
Compatible with MC4
MOQ :
10
Cable Length :
Negative 400mm / Positive 300mm
Cell Type :
Monocrystalline
Brand Name :
Kuoman
Frame Material :
Anodized aluminum profile
Description
Durable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use

Product Features

  1. Rated power range from 430W to 450W with stable power tolerance
  2. High‑efficiency monocrystalline silicon solar cells
  3. Anti‑reflection tempered glass for improved sunlight absorption
  4. IP68‑rated waterproof junction box and corrosion‑resistant aluminium frame
  5. Low‑light performance for dawn, dusk and cloudy‑day power generation
  6. Excellent heat‑resistance property to reduce power loss under high temperature
  7. Pre‑drilled mounting holes for fast, flexible installation
  8. Extended service life and reliable outdoor anti‑aging capabilityDurable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use
Structural Parameters
Cells 108pcs 182x93mm Monocrystalline solar cells
Module Dimension 1722x1134x30mm (LxWxH)
Module Weight 20.5kg
Frame Anodized aluminum profile
Junction Box Rated current: 25A, IP68, TUV
Cable Length Negative 400mm / Positive 300mm
Connector Compatible with MC4
STC (Standard Test Conditions)
Parameter 410W 415W 420W 425W 430W
Maximum Power (Pmax) 410W 415W 420W 425W 430W
Maximum Power Voltage (Vmp) 31.13V 31.32V 31.51V 31.70V 31.88V
Maximum Power Current (Imp) 13.17A 13.25A 13.33A 13.41A 13.49A
Open-circuit Voltage (Voc) 37.73V 37.92V 38.11V 38.30V 38.49V
Short-circuit Current (Isc) 13.91A 13.99A 13.99A 14.15A 14.23A
Module Efficiency STC (%) 21.00 21.25 21.51 21.76 22.02
STC: Irradiance 1000W/m², cell temperature 25℃, AM1.5G
Operating Conditions
Max System Voltage 1000V/1500V DC
Temperature Range -40°C to +85°C
Series Fuse Rating 25A
NOTC 45±2℃
Temperature Coefficient of Isc (α-Isc) +0.033%/℃
Temperature Coefficient of Voc (β-Voc) -0.29%/℃
Temperature Coefficient of Pmax (Y-Pmp) -0.39%/℃
Durable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use Durable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use
Application Scenarios
  • Rooftop residential home solar power systems
  • Commercial building and factory rooftop photovoltaic stations
  • Off-grid cabins, RVs, campers and marine boat power supply
  • Outdoor street-light power supply, remote monitoring equipment
  • Farm irrigation equipment, livestock farm power supply
  • Emergency backup power and battery energy-storage systems
  • Outdoor villas, tiny houses and remote countryside independent power projects
Durable 430‑450W Solar Power Panel, IP68 Junction‑Box PV Equipment For Home Backup & Commercial Use
