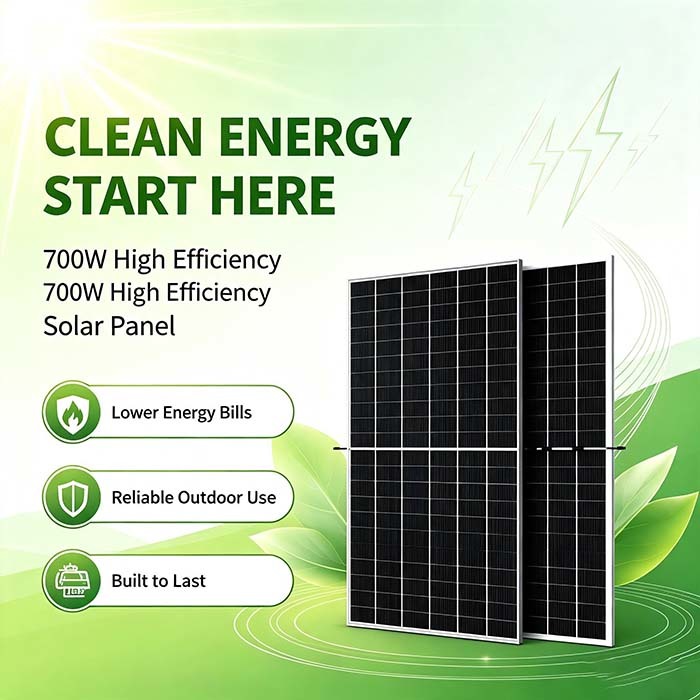

Residential Rooftop 700W HJT PV Panel, Premium 16 Busbar Solar Cell Technology
Residential Rooftop 700W HJT PV Panel, Premium 16 Busbar Solar Cell Technology
Residential Rooftop 700W HJT PV Panel, Premium 16 Busbar Solar Cell Technology
Residential Rooftop 700W HJT PV Panel, Premium 16 Busbar Solar Cell Technology
Specifications
Model Number :
KM500-600W Solar Panel
System Voltage :
1500 V DC
MOQ :
1
Delivery Time :
general two weeks, more quantity based on exact quantity
Bifaciality Factor :
85%
Payment Terms :
L/C,L/C
Maximum Power :
700W
Cell Type :
Monocrystalline / Polycrystalline
Price :
USD1-100/pcs
Weight :
25 kg
Panel Efficiency :
22%
Supply Ability :
10000pcs/month
Dimensions :
1722x1134x30mm
Junction Box Current :
25A
Encapsulation Material :
EVA
Certification :
CE, FCC, UKCA, CB
Cell Dimensions :
166 mm × 83 mm
Place of Origin :
China
Number of Cells :
144
Packaging Details :
standard international carton packing
Brand Name :
Kuoman
Front Glass Thickness :
3.2 mm
Description
Residential Rooftop 700W HJT PV Panel, Premium 16 Busbar Solar Cell Technology
Our 700W double-glass HJT monocrystalline bifacial PV module adopts advanced 16BB SMBB solar-cell technology, delivering high conversion efficiency up to 22.53%. Built with dual 2.0 mm semi-tempered glass, this durable solar panel supports a maximum 25% rear-side power gain thanks to its 85% bifaciality factor. Rated for 1500 V DC system voltage and tough-condition-resistant, this industrial-grade solar module is engineered for long-term outdoor power generation for residential, commercial and utility-scale solar projects.
Residential Rooftop 700W HJT PV Panel, Premium 16 Busbar Solar Cell Technology Residential Rooftop 700W HJT PV Panel, Premium 16 Busbar Solar Cell Technology
Electrical Specifications
Parameter 680W 690W 700W 710W 720W
Maximum Power (Pmax/W) 680 690 700 710 720
Maximum Power Voltage (Vmp/V) 41.49 41.80 42.10 42.40 42.70
Maximum Power Current (Lmp/A) 16.39 16.51 16.63 16.75 16.87
Open Circuit Voltage (Voc/V) 49.5 49.82 50.13 50.45 50.76
Short Circuit Current (Lsc/A) 17.19 17.31 17.43 17.55 17.67
Module Efficiency (%) 21.89 22.21 22.53 22.85 23.18
Residential Rooftop 700W HJT PV Panel, Premium 16 Busbar Solar Cell Technology
Mechanical Characteristics
  • Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
  • Weight: 25 kg per module
  • Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
  • Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability
  • Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
  • Backsheet: Composite film providing excellent insulation and weather resistance
  • Frame: Anodized aluminum profile offering corrosion resistance and structural strength
  • Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
  • Cable: Negative cable length 400 mm, Positive cable length 300 mm
  • Connector: Compatible with industry-standard MC4 connectors for easy and secure installation
Application Scenarios
  • On‑grid & off‑grid residential rooftop solar power stations
  • Commercial and industrial factory rooftop photovoltaic systems
  • Large‑scale ground‑mount utility solar farms
  • Agricultural greenhouse and farm floating solar projects
  • Coastal, desert and high‑humidity harsh‑environment solar installations
  • Outdoor street‑light power supply, remote cabins and camping solar power kits
  • Solar energy storage, battery charging and portable off‑grid power equipment
