Off‑Grid 700W Monocrystalline Bifacial Solar Panel, Dawn & Cloudy‑Day Power Supply
Off‑Grid 700W Monocrystalline Bifacial Solar Panel, Dawn & Cloudy‑Day Power Supply
Off‑Grid 700W Monocrystalline Bifacial Solar Panel, Dawn & Cloudy‑Day Power Supply
Off‑Grid 700W Monocrystalline Bifacial Solar Panel, Dawn & Cloudy‑Day Power Supply
Specifications
Supply Ability :
10000pcs/month
Dimensions :
1722x1134x30mm
Junction Box Current :
25A
Model Number :
KM500-600W Solar Panel
System Voltage :
1500 V DC
MOQ :
1
Delivery Time :
general two weeks, more quantity based on exact quantity
Bifaciality Factor :
85%
Payment Terms :
L/C,L/C
Maximum Power :
700W
Cell Type :
Monocrystalline / Polycrystalline
Price :
USD1-100/pcs
Weight :
25 kg
Panel Efficiency :
22%
Encapsulation Material :
EVA
Certification :
CE, FCC, UKCA, CB
Place of Origin :
China
Number of Cells :
144
Packaging Details :
standard international carton packing
Cell Dimensions :
166 mm × 83 mm
Brand Name :
Kuoman
Front Glass Thickness :
3.2 mm
Description
Off‑Grid 700W Monocrystalline Bifacial Solar Panel, Dawn & Cloudy‑Day Power Supply
Our 700W double-glass HJT monocrystalline bifacial PV module adopts advanced 16BB SMBB solar-cell technology, delivering high conversion efficiency up to 22.53%. Built with dual 2.0 mm semi-tempered glass, this durable solar panel supports a maximum 25% rear-side power gain thanks to its 85% bifaciality factor. Rated for 1500 V DC system voltage and tough-condition-resistant, this industrial-grade solar module is engineered for long-term outdoor power generation for residential, commercial and utility-scale solar projects.
Off‑Grid 700W Monocrystalline Bifacial Solar Panel, Dawn & Cloudy‑Day Power Supply Off‑Grid 700W Monocrystalline Bifacial Solar Panel, Dawn & Cloudy‑Day Power Supply
Electrical Specifications
Parameter 680W 690W 700W 710W 720W
Maximum Power (Pmax/W) 680 690 700 710 720
Maximum Power Voltage (Vmp/V) 41.49 41.80 42.10 42.40 42.70
Maximum Power Current (Lmp/A) 16.39 16.51 16.63 16.75 16.87
Open Circuit Voltage (Voc/V) 49.5 49.82 50.13 50.45 50.76
Short Circuit Current (Lsc/A) 17.19 17.31 17.43 17.55 17.67
Module Efficiency (%) 21.89 22.21 22.53 22.85 23.18
Off‑Grid 700W Monocrystalline Bifacial Solar Panel, Dawn & Cloudy‑Day Power Supply
Mechanical Characteristics
  • Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
  • Weight: 25 kg per module
  • Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
  • Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability
  • Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
  • Backsheet: Composite film providing excellent insulation and weather resistance
  • Frame: Anodized aluminum profile offering corrosion resistance and structural strength
  • Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
  • Cable: Negative cable length 400 mm, Positive cable length 300 mm
  • Connector: Compatible with industry-standard MC4 connectors for easy and secure installation
Application Scenarios

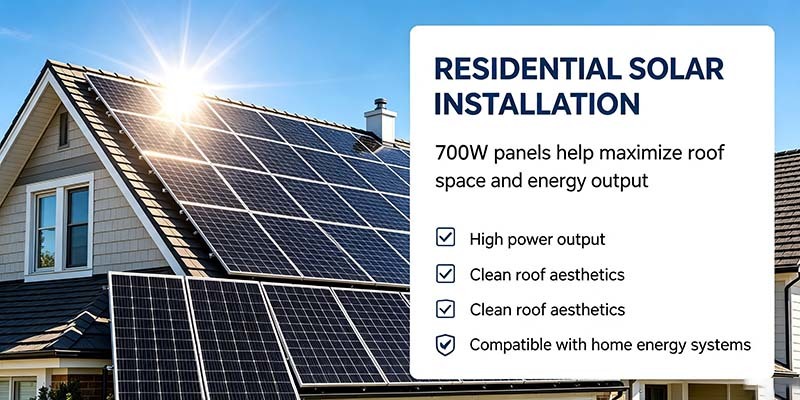

  • On‑grid & off‑grid residential rooftop solar power stations

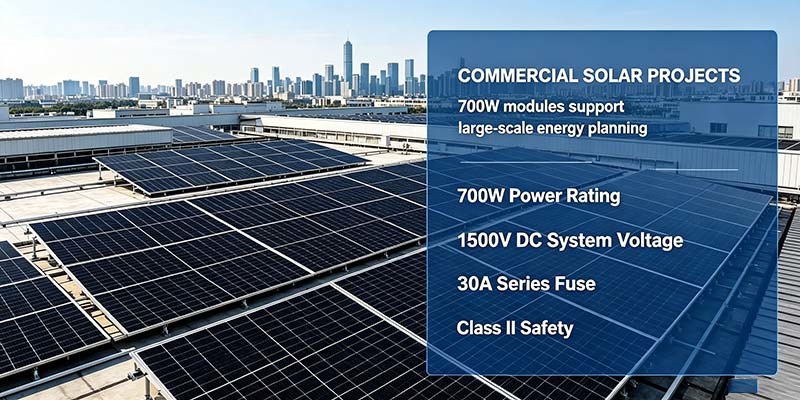

  • Commercial and industrial factory rooftop photovoltaic systems
  • Large‑scale ground‑mount utility solar farms
  • Agricultural greenhouse and farm floating solar projects
  • Coastal, desert and high‑humidity harsh‑environment solar installations
  • Outdoor street‑light power supply, remote cabins and camping solar power kits
  • Solar energy storage, battery charging and portable off‑grid power equipment
