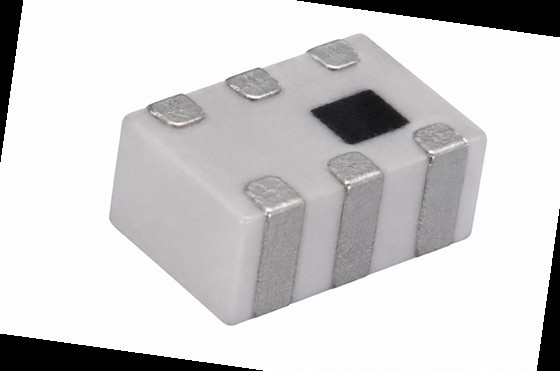

JY-NCS1-23+ RF Transformer 1300-2000 MHz 1:1 Impedance Ratio LTCC Surface Mount
JY-NCS1-23+ RF Transformer 1300-2000 MHz 1:1 Impedance Ratio LTCC Surface Mount
Specifications
Package Size :
2.01 x 1.24 mm
Insertion Loss :
1.0 dB Typ.
RF Power Input :
3 W
Phase Unbalance :
2 Degree Typ.
Brand Name :
JYRF
Place of Origin :
Shenzhen, Guangdong, China
Impedance :
50 Ohm
Operating Temperature :
-40°C to 85°C
Amplitude Unbalance :
0.3 dB Typ.
Certification :
RoHS Compliant
Model :
JY-NCS1-23+
Storage Temperature :
-55°C to 100°C
Model Number :
JY-NCS1-23+
Frequency Range :
1300-2000 MHz
Pad Connections :
PRIMARY DOT (Unbalanced Port) 1, PRIMARY (GND) 2, SECONDARY DOT (Balanced) 4, SECONDARY (Balanced) 3, NO CONNECTION 6, NOT USED (GND Externally) 5
Product Type :
RF Transformer
Impedance Ratio :
1:1
Description

Electrical Specifications

Parameter Frequency (MHz) Typ. Max. Unit
Impedance Ratio - 1:1 - -
Frequency Range - 1300-2000 MHz - MHz
Insertion Loss 1300-2000 MHz 1.0 - dB
Amplitude Unbalance 1300-2000 MHz 0.3 - dB
Phase Unbalance 1300-2000 MHz 2 - Degree
Impedance - 50 - Ω
RF Power Input - 3 W - -
Operating Temperature - - -40°C to 85°C -

Features

  • Wideband, 1300 to 2000 MHz
  • Low phase unbalance, 2 deg. and amplitude
  • Unbalance, 0.3 dB typ.
  • Miniature size, 0.079"x0.049"x0.033"
  • LTCC construction
  • Low cost
  • Aqueous washable

Applications

  • WCDMA
  • PCS
  • GPS

Maximum Ratings

Operating Temperature: -40°C to 85°C

Storage Temperature: -55°C to 100°C

RF Power Input: 3 W max. at 25°C

Mechanical Dimensions

Package Size: 2.01 x 1.24 mm (Unit: mm)

Pad Connections

PRIMARY DOT (Unbalanced Port) 1, PRIMARY (GND) 2, SECONDARY DOT (Balanced) 4, SECONDARY (Balanced) 3, NO CONNECTION 6, NOT USED (GND Externally) 5
