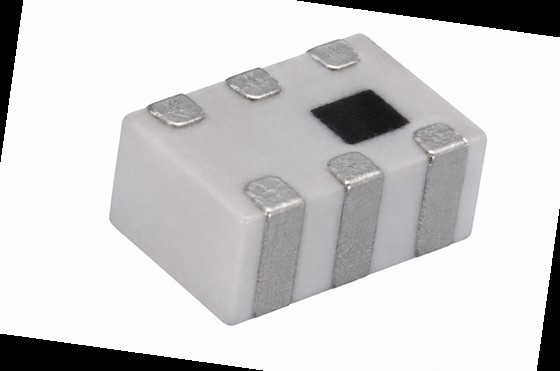

JY-NCS2-771+ RF Transformer 240-770 MHz 1:2 Impedance Ratio LTCC Surface Mount
JY-NCS2-771+ RF Transformer 240-770 MHz 1:2 Impedance Ratio LTCC Surface Mount
Specifications
Amplitude Unbalance :
1.0 dB Max.
Brand Name :
JYRF
Model :
JY-NCS2-771+
Phase Unbalance :
11 Degree Max.
Operating Temperature :
-40°C to 85°C
RF Power Input :
2 W
Package Size :
2.01 x 1.24 mm
Model Number :
JY-NCS2-771+
Place of Origin :
Shenzhen, Guangdong, China
Impedance Ratio :
1:2
Frequency Range :
240-770 MHz
Impedance :
50 Ohm
Storage Temperature :
-40°C to 85°C
Pad Connections :
PRIMARY DOT (Unbalanced Port) 1, PRIMARY (GND) 2, SECONDARY (Balanced) 3, SECONDARY DOT (Balanced) 4, NOT USED (GND Externally) 5, NO CONNECTION 6
Product Type :
RF Transformer
Insertion Loss :
0.8 dB Max.
Certification :
RoHS Compliant
Description

Electrical Specifications

Parameter Frequency (MHz) Typ. Max. Unit
Impedance Ratio - 1:2 - -
Frequency Range - 240-770 MHz - MHz
Insertion Loss 240-770 MHz 0.2 0.8 dB
Amplitude Unbalance 240-770 MHz 0.5 1.0 dB
Phase Unbalance 240-770 MHz 5 11 Degree
Impedance - 50 - Ω
RF Power Input - 2 W - -
Operating Temperature - - -40°C to 85°C -

Features

  • Miniature size, 0.079"x0.049"x0.037"
  • LTCC construction
  • Low cost
  • Aqueous washable

Applications

  • Satellite
  • VHF/UHF
  • Instrumentation

Maximum Ratings

Operating Temperature: -40°C to 85°C

Storage Temperature: -40°C to 85°C

RF Power Input: 2 W max. at 25°C

Mechanical Dimensions

Package Size: 2.01 x 1.24 mm (Unit: mm)

Pad Connections

PRIMARY DOT (Unbalanced Port) 1, PRIMARY (GND) 2, SECONDARY (Balanced) 3, SECONDARY DOT (Balanced) 4, NOT USED (GND Externally) 5, NO CONNECTION 6
