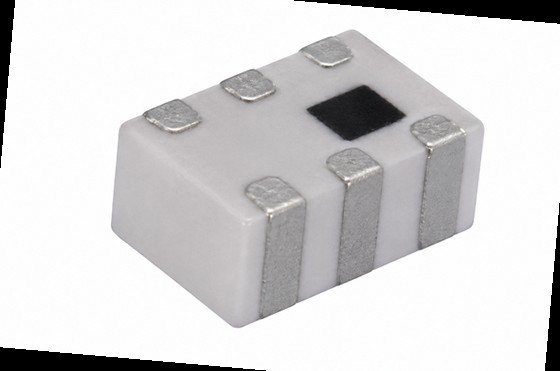

JY-NCS3-272+ RF Transformer 2250-2725 MHz 1:3 Impedance Ratio LTCC Surface Mount
JY-NCS3-272+ RF Transformer 2250-2725 MHz 1:3 Impedance Ratio LTCC Surface Mount
Specifications
Operating Temperature :
-40°C to 85°C
Package Size :
2.01 x 1.24 mm
Place of Origin :
Shenzhen, Guangdong, China
Insertion Loss :
1.0 dB Typ.
Certification :
RoHS Compliant
Product Type :
RF Transformer
Storage Temperature :
-55°C to 100°C
RF Power Input :
3 W
Frequency Range :
2250-2725 MHz
Impedance :
50 Ohm
Pad Connections :
PRIMARY DOT (Unbalanced Port) 2, PRIMARY (GND) 1,3, SECONDARY DOT (Balanced) 4, SECONDARY (Balanced) 6, NO CONNECTION 5
Model Number :
JY-NCS3-272+
Amplitude Unbalance :
0.4 dB Typ.
Phase Unbalance :
3 Degree Typ.
Brand Name :
JYRF
Model :
JY-NCS3-272+
Impedance Ratio :
1:3
Description

Electrical Specifications

Parameter Frequency (MHz) Typ. Max. Unit
Impedance Ratio - 1:3 - -
Frequency Range - 2250-2725 MHz - MHz
Insertion Loss 2250-2725 MHz 1.0 - dB
Amplitude Unbalance 2250-2725 MHz 0.4 - dB
Phase Unbalance 2250-2725 MHz 3 - Degree
Impedance - 50 - Ω
RF Power Input - 3 W - -
Operating Temperature - - -40°C to 85°C -

Features

  • Wideband, 2250 to 2725 MHz
  • Low phase unbalance, 3 deg. and amplitude unbalance, 0.4 dB typ.
  • Miniature size, 0.079"x0.049"x0.033"
  • LTCC construction
  • Low cost
  • Aqueous washable

Applications

  • WLAN
  • WIMAX/WIBRO
  • MMDS
  • Radar

Maximum Ratings

Operating Temperature: -40°C to 85°C

Storage Temperature: -55°C to 100°C

RF Power Input: 3 W max. at 25°C

Mechanical Dimensions

Package Size: 2.01 x 1.24 mm (Unit: mm)

Pad Connections

PRIMARY DOT (Unbalanced Port) 2, PRIMARY (GND) 1,3, SECONDARY DOT (Balanced) 4, SECONDARY (Balanced) 6, NO CONNECTION 5
