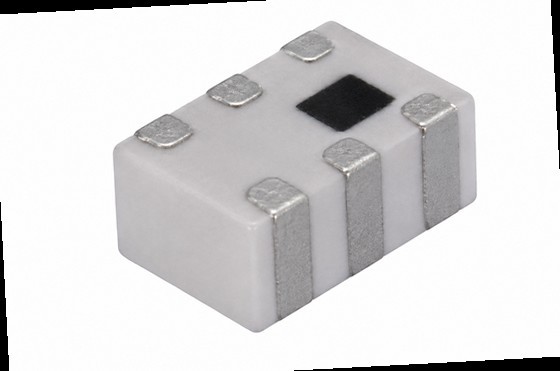

JY-NCS1-292+ RF Transformer 1650-2850 MHz 1:1 Impedance Ratio LTCC Surface Mount
JY-NCS1-292+ RF Transformer 1650-2850 MHz 1:1 Impedance Ratio LTCC Surface Mount
Specifications
Brand Name :
JYRF
Phase Unbalance :
4 Degree Typ.
Insertion Loss :
1.0 dB Typ.
Package Size :
2.01 x 1.24 mm
Model Number :
JY-NCS1-292+
Place of Origin :
Shenzhen, Guangdong, China
Certification :
RoHS Compliant
RF Power Input :
3 W
Model :
JY-NCS1-292+
Product Type :
RF Transformer
Frequency Range :
1650-2850 MHz
Pad Connections :
PRIMARY DOT (Unbalanced Port) 1, PRIMARY (GND) 2, SECONDARY DOT (Balanced) 4, SECONDARY (Balanced) 3, NO CONNECTION 6, NOT USED (GND Externally) 5
Amplitude Unbalance :
0.4 dB Typ.
Operating Temperature :
-40°C to 85°C
Impedance Ratio :
1:1
Storage Temperature :
-55°C to 100°C
Impedance :
50 Ohm
Description

Electrical Specifications

Parameter Frequency (MHz) Typ. Max. Unit
Impedance Ratio - 1:1 - -
Frequency Range - 1650-2850 MHz - MHz
Insertion Loss 1650-2850 MHz 1.0 - dB
Amplitude Unbalance 1650-2850 MHz 0.4 - dB
Phase Unbalance 1650-2850 MHz 4 - Degree
Impedance - 50 - Ω
RF Power Input - 3 W - -
Operating Temperature - - -40°C to 85°C -

Features

  • Wideband, 1650 to 2850 MHz
  • Low phase unbalance, 4 deg. and amplitude unbalance, 0.4 dB typ.
  • Miniature size, 0.079"x0.049"x0.033"
  • LTCC construction
  • Low cost
  • Aqueous washable

Applications

  • WLAN
  • WIMAX/WIBRO
  • MMDS
  • Radar
  • WCDMA

Maximum Ratings

Operating Temperature: -40°C to 85°C

Storage Temperature: -55°C to 100°C

RF Power Input: 3 W max. at 25°C

Mechanical Dimensions

Package Size: 2.01 x 1.24 mm (Unit: mm)

Pad Connections

PRIMARY DOT (Unbalanced Port) 1, PRIMARY (GND) 2, SECONDARY DOT (Balanced) 4, SECONDARY (Balanced) 3, NO CONNECTION 6, NOT USED (GND Externally) 5
