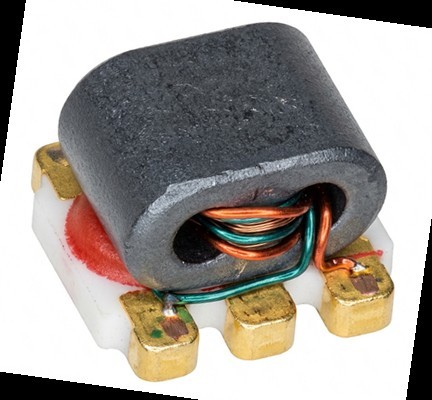

OEM Broadband RF Impedance Matching Transformer 1:2 1700-6700 MHz
OEM Broadband RF Impedance Matching Transformer 1:2 1700-6700 MHz
Specifications
Model :
JY-TCM2-672X+
Impedance :
50 Ohm
RF Power Input :
0.4W
Package :
LTCC Surface Mount Package
Impedance Ratio :
1:2
Brand Name :
JYRF
Place of Origin :
Shenzhen, Guangdong, China
Operating Temperature :
-40°C to 85°C
Storage Temperature :
-55°C to 100°C
Product Type :
RF Transformer
DC Current :
30mA
Certification :
RoHS Compliant
Model Number :
JY-TCM2-672X+
Frequency Range :
1700-6700 MHz
Description

JY-TCM2-672X+ RF Transformer 1:2 Impedance Ratio 1700-6700 MHz 50 Ohm LTCC Surface Mount Package

Electrical Specifications

Parameter Frequency (MHz) Min. Typ. Max. Unit
Impedance Ratio 1700-6700 - 1:2 - -
Frequency Range 1700-6700 - - - MHz
Insertion Loss 1700-6700 - 1.0 2.0 dB
Amplitude Unbalance 1700-6700 - - 0.5 dB
Phase Unbalance 1700-6700 - - 5 deg

Features

  • wide bandwidth 1700 to 6700 MHz
  • balanced transmission line
  • excellent return loss
  • aqueous washable.

Applications

  • PCS
  • Wideband push-pull amplifiers
  • Cellular

Maximum Ratings

Operating Temperature: -40°C to 85°C

Storage Temperature: -55°C to 100°C

RF Power Input: 0.4W

DC Current: 30mA
