Honda Gas Line Striper 2.5L/min | Graco Gun Track Marker
Honda Gas Line Striper 2.5L/min | Graco Gun Track Marker
Honda Gas Line Striper 2.5L/min | Graco Gun Track Marker
Honda Gas Line Striper 2.5L/min | Graco Gun Track Marker
Specifications
Model Number :
CZ-H-240
Payment Terms :
TT
Place of Origin :
Zhejiang, China
Certification :
China Environmental Labeling Type II Certified Product
Brand Name :
Zhejiang Chenze
Description

Honda Gas Line Striper 2.5L/min | Graco Gun Track Marker

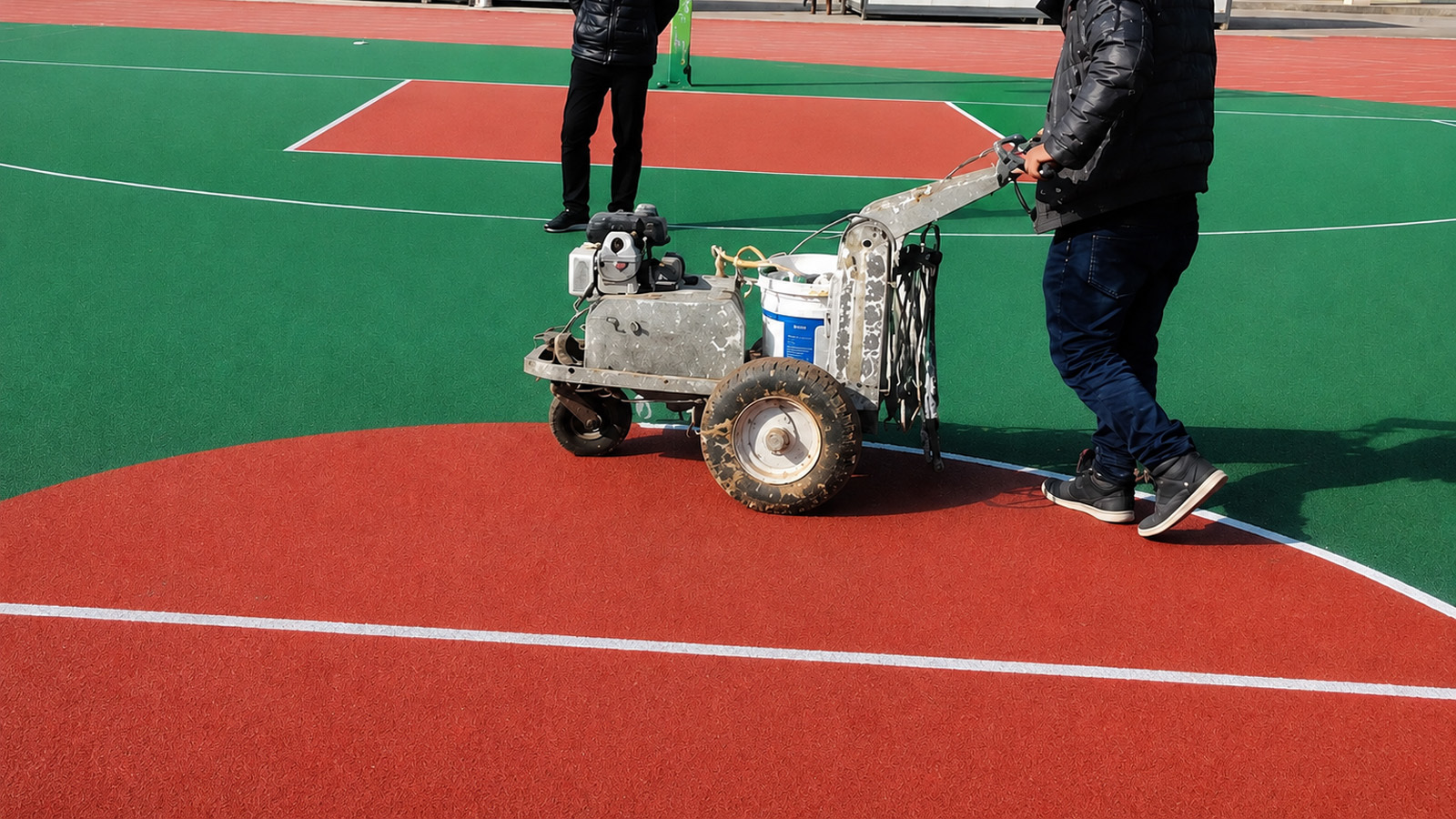

The CZ-H-240 Airless Line Striper is a high-performance cold-paint marking machine engineered for demanding athletic running tracks, sports courts, and commercial parking lot projects. Powered by a dependable 4.15 HP (3.05 kW) Honda gasoline engine, it features a heavy-duty diaphragm pump system delivering up to 18 MPa pressure and a 2.5 L/min flow rate. Equipped with an original Graco self-cleaning spray gun, a collapsible galvanized anti-corrosion frame, and dual adjustable edging discs, the H-240 produces razor-sharp lines without paint bleed or burrs at operational speeds up to 3 km/h.


Honda Gas Line Striper 2.5L/min | Graco Gun Track Marker


Key Specifications


Parameter Specification
Model CZ-H-240
Engine Type Honda Gasoline Engine (3.05 kW / 4.15 HP)
Max. Working Pressure 18 MPa (2610 PSI)
Max. Delivery Rate 2.5 L/min
Stripping Speed 0.5 – 3.0 km/h
Net Weight 102 kg
Dimensions (L×W×H) 1400 × 950 × 1000 mm
Spray Gun System Original Graco Self-Cleaning Nozzle
Chassis & Wheels Foldable Galvanized Frame + 3 Pneumatic Tires + Swivel Front Wheel
Edge Control Dual Independent Mechanical Edging Discs


Applications

  • Athletic Running Tracks: Straight and curved lane marking on PU / EPDM track surfaces.

  • Sports Facilities: Tennis courts, basketball courts, and outdoor gym boundary lines.

  • Parking Lots & Garages: Parking space lines, directional arrows, and safety zones.

  • Roads & Pathways: Community roads, factory walkways, and warehouse floor striping.

Product Advantages

Original Graco Self-Cleaning Spray Gun

Ensures consistent atomization and precise pattern control while preventing paint clogs during long continuous jobs.

Dual Independent Edging Discs

The floating guard discs hug the ground tightly, scraping away excess paint spray to deliver crisp, burr-free line edges without bleed.

Enhanced Driving Stability

Three wide pneumatic tires absorb field vibrations, while the front swivel wheel enables smooth transitions between straightaways and sharp track curves.

Foldable Galvanized Frame

Offers superior rust and corrosion resistance against harsh field paints while allowing compact transport and storage.
