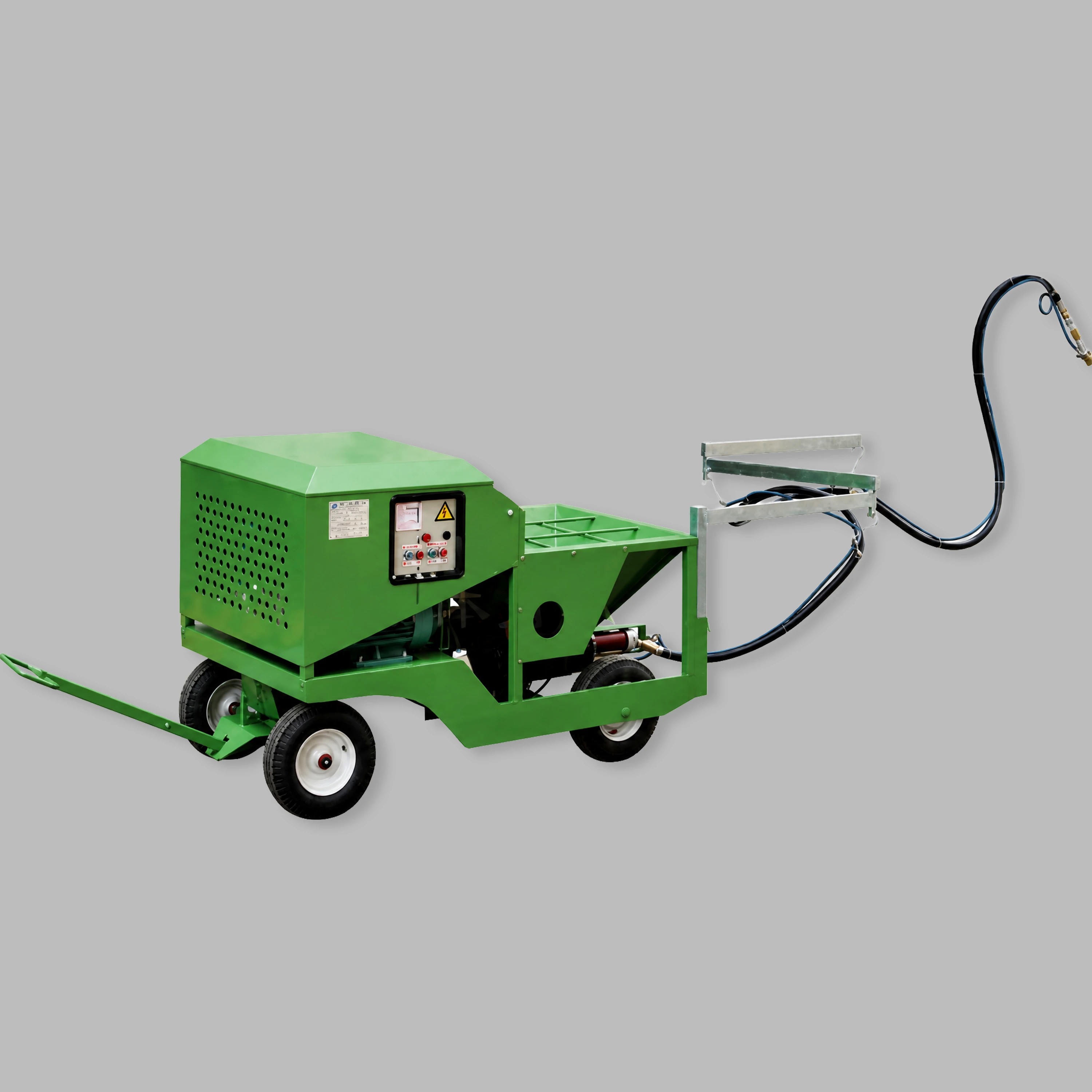

Running Track Spray Machine 15kg/min | 120L 10kW Sprayer
Running Track Spray Machine 15kg/min | 120L 10kW Sprayer
Specifications
Model Number :
CZ-PTJ-120
Payment Terms :
TT
Place of Origin :
Zhejiang, China
Certification :
China Environmental Labeling Type II Certified Product
Brand Name :
Zhejiang Chenze
Description

Running Track Spray Machine 15kg/min | 120L 10kW Sprayer


The CZ-PTJ-120 Spraying Machine is a heavy-duty, high-performance spray system custom-designed for applying structural topcoats, EPDM rubber granules, and polyurethane binders onto athletic running tracks and large sports stadiums. Powered by a robust 10 kW industrial system with advanced rotor-stator screw pump technology, it integrates air compression and material pumping into a compact single-chassis frame. Featuring an impressive 120L hopper capacity, a 12–15 kg/min throughput, 0.8 MPa working pressure, and a 1 m³/min air displacement, the PTJ-120 delivers rapid material discharge, high pneumatic pressure, and superior mist atomization for immaculate surface uniformity.

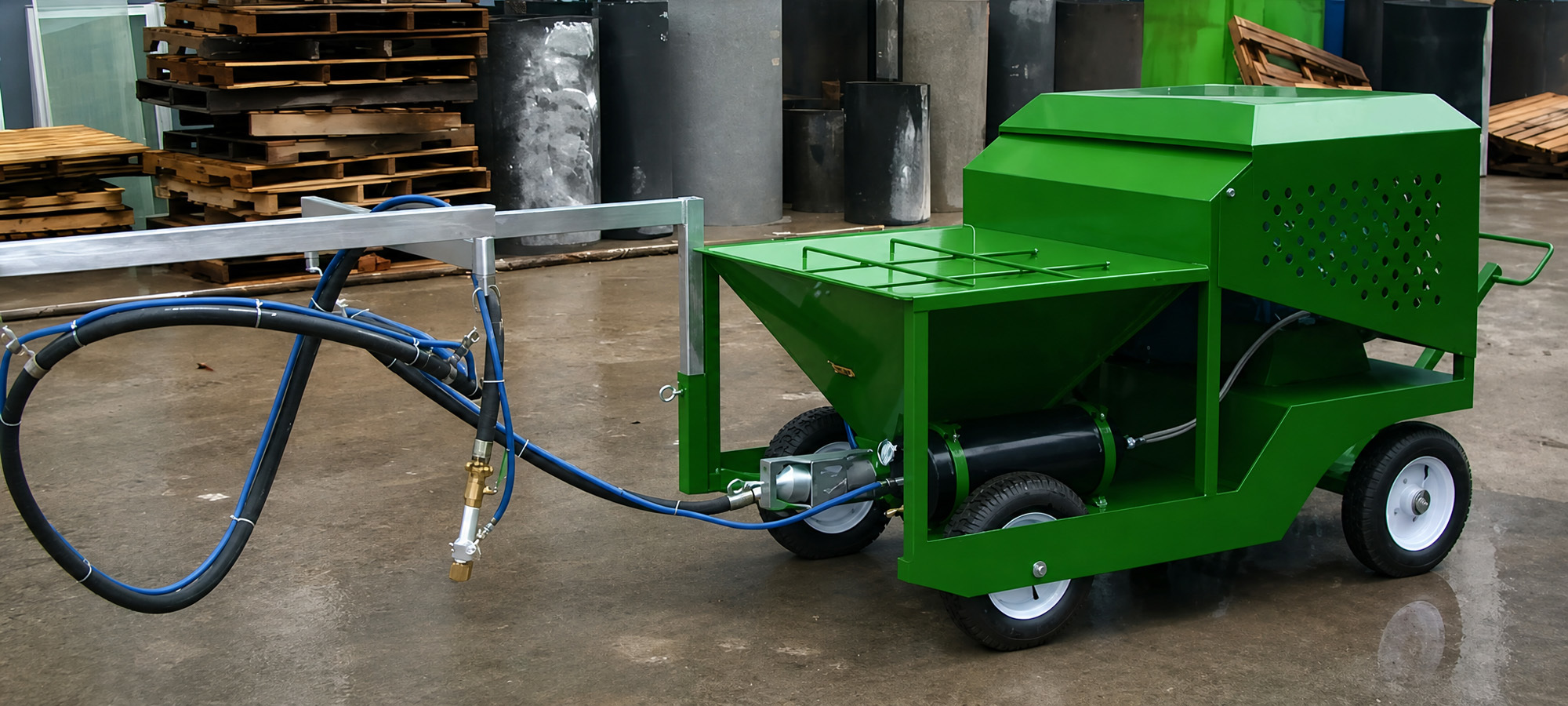

Running Track Spray Machine 15kg/min | 120L 10kW Sprayer


Key Specifications


Parameter Specification
Model CZ-PTJ-120
Hopper Capacity 120 L
Spray Output Rate 12 – 15 kg/min
Motor Power 10 kW
Air Pressure 0.8 MPa
Air Displacement 1.0 m³/min
Machine Weight 450 kg
Overall Dimensions 1820 × 1000 × 1150 mm
Pump Type Screw Pump Rotor-Stator Mechanism


Applications

  • Standard 400m Athletic Running Tracks: Topcoat structural spraying of PU resin mixed with 1–3mm EPDM rubber granules.

  • Professional Sports Stadiums: Creating high-friction, anti-slip surface coatings for university and public arenas.

  • Multi-Purpose Playgrounds & Courts: High-efficiency coverage for large-area polyurethane flooring projects.

Product Advantages

Rotor-Stator Screw Pump Mechanism

Ensures continuous, non-clogging delivery of thick, viscous polyurethane and rubber mixtures.

Integrated Air-Material Architecture

Combining the blower air supply and material pump into one frame reduces equipment setup time and optimizes air-to-material mixing ratios.

120L Large Batch Productivity

Massive hopper capacity minimizes labor requirements for refilling, enabling uninterrupted long-distance spraying passes.

Superior Atomization Coverage

Delivering 1 m³/min displacement at 0.8 MPa pressure creates a wide fan spray mist that covers textured surfaces evenly without bare patches.
