Running Track Paver Machine | 2500mm Width, 500m²/h
Running Track Paver Machine | 2500mm Width, 500m²/h
Specifications
Model Number :
CZ-TPJ-2.5
Payment Terms :
TT
Place of Origin :
Zhejiang, China
Certification :
China Environmental Labeling Type II Certified Product
Brand Name :
Zhejiang Chenze
Description

Running Track Paver Machine | 2500mm Width, 500m²/h

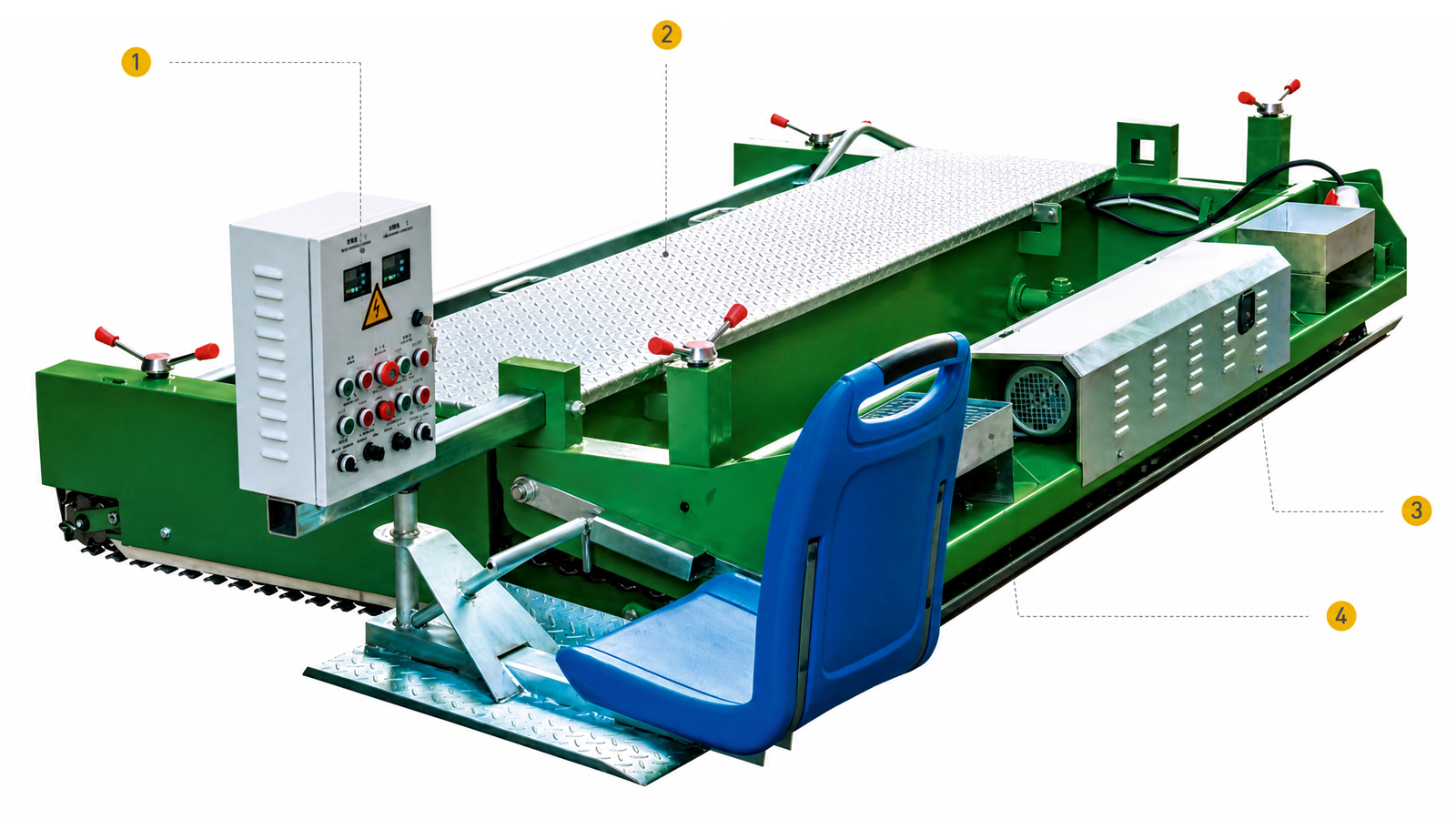

The CZ-TPJ-2.5 Running Track Paver Machine is designed for paving rubber elastic layers on synthetic running tracks, athletic tracks, and sports surfaces. It integrates variable-frequency stepless speed control, electric hydraulic lifting, and digital temperature control to support smooth and continuous mechanical paving. With a 2500mm paving width, adjustable speed of 0.8–6 m/min, and paving capacity of up to 500m²/h, the machine is suited to efficient installation of running tracks and large sports surfaces.


Running Track Paver Machine | 2500mm Width, 500m²/hRunning Track Paver Machine | 2500mm Width, 500m²/h

Running Track Paver Machine | 2500mm Width, 500m²/hRunning Track Paver Machine | 2500mm Width, 500m²/hRunning Track Paver Machine | 2500mm Width, 500m²/h


Key Specifications


Technical Parameter Specification
Product Model CZ-TPJ-2.5
Paving Width 2500 mm
Paving Speed 0.8–6 m/min
Paving Capacity 500 m²/h
Power 8 kW
Hydraulic Pressure 8 MPa
Heating Plate Temperature 90°C
Machine Weight 900 kg
Overall Dimensions 3000 × 1800 × 720 mm
Speed Control Variable-Frequency Stepless Speed Control
Lifting System Electric Hydraulic Lifting
Temperature Control Digital Automatic Temperature Control


Applications
  • Synthetic Running Track Paving
  • Rubber Sports Surface Paving
Product Advantages

2500mm Wide Paving

The 2500mm paving width supports continuous installation of rubber elastic layers on running tracks and large sports surfaces.

Adjustable Paving Speed

The machine operates at 0.8–6m/min, allowing the paving speed to be adjusted according to project conditions.

Electric Hydraulic Lifting

The hydraulic lifting system allows the machine's working position to be adjusted during installation.

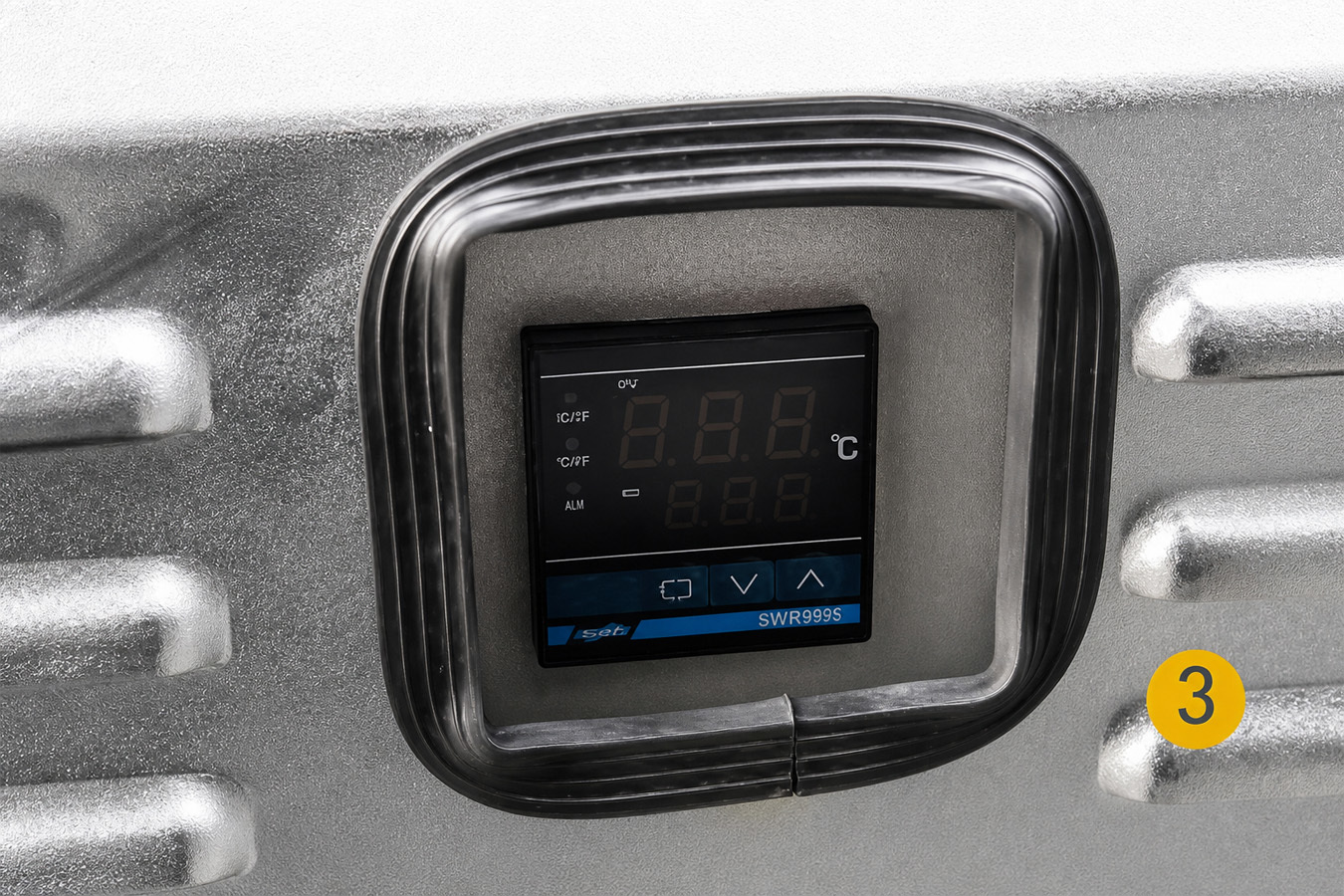

Digital Temperature Control

The heating plate has a set temperature of 90°C, supported by a digital temperature control system.

Designed for Rubber Sports Surfaces

The machine is specifically positioned for synthetic running tracks and rubber elastic sports surfaces rather than conventional road paving.
