Running Track Rubber Mixer 100kg | 3kW Direct Gear Drive
Running Track Rubber Mixer 100kg | 3kW Direct Gear Drive
Specifications
Model Number :
CZ-M-100
Payment Terms :
TT
Place of Origin :
Zhejiang, China
Certification :
China Environmental Labeling Type II Certified Product
Brand Name :
Zhejiang Chenze
Description

Running Track Rubber Mixer 100kg | 3kW Direct Gear Drive

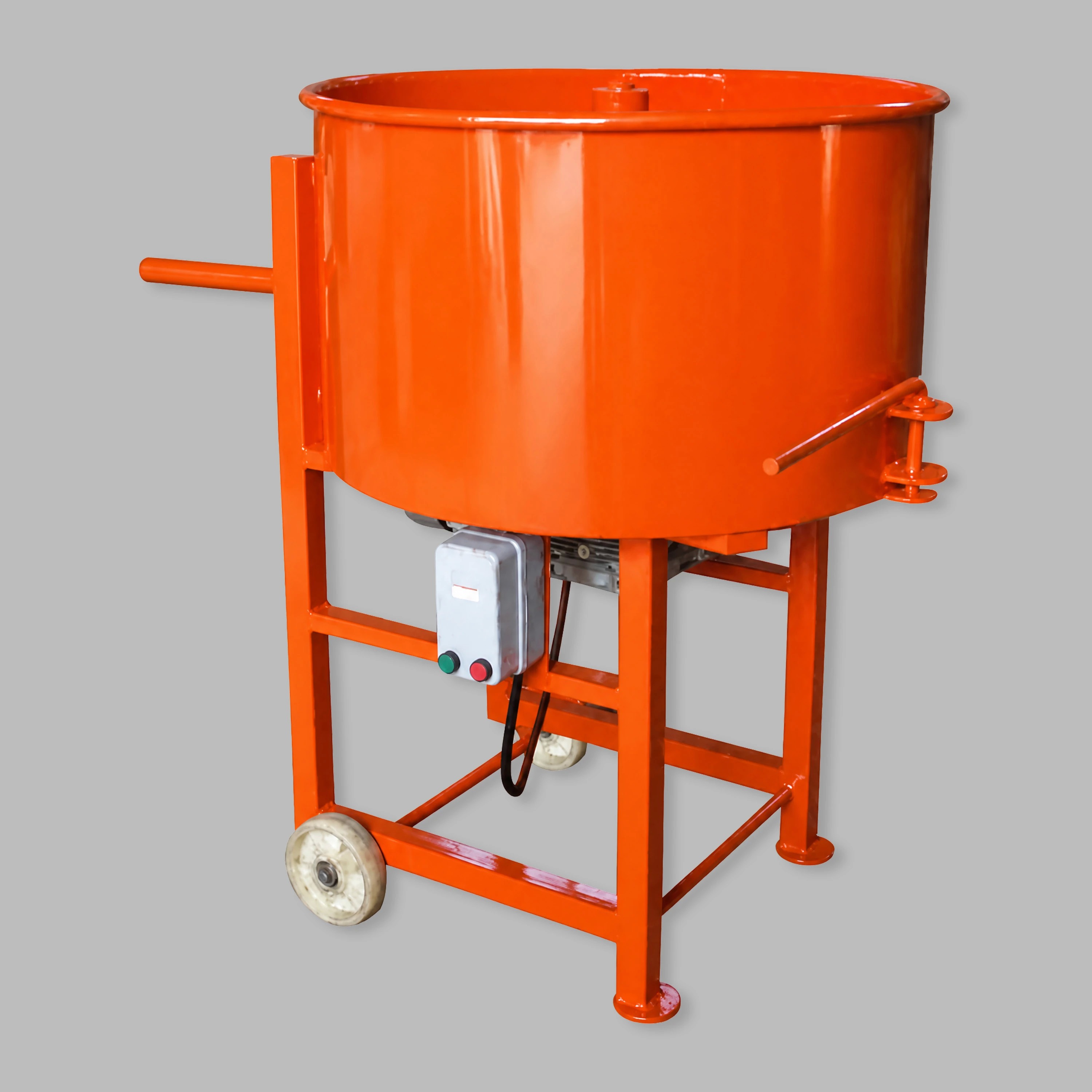

The CZ-M-100 Mixing Machine is a heavy-duty, portable site mixer specialized for synthetic athletic running tracks, EPDM playgrounds, and permeable surfacing projects. Powered by a robust 3kW motor with a direct-coupled gear reducer, it drives the mixing paddles at a consistent 72 RPM, ensuring smooth, streak-free blending of polyurethane binders with rubber granules. With a 100L hopper capacity (100KG batch weight) and an agile 130kg frame mounted on transport wheels, it allows effortless short-distance maneuvering directly across working zones.


Key Specifications


Parameter Specification
Model CZ-G-100
Mixing Capacity 100 KG / Batch
Hopper Volume 100 L
Main Shaft Speed 72 RPM
Motor Power 3 kW (Direct Gear Drive)
Overall Weight 130 kg
Dimensions (L×W×H) 1270 × 920 × 1270 mm
Mobility Integrated Wheel Chassis


Applications

  • Synthetic Running Track Construction: Blending PU binder with SBR/EPDM granules for base and top layers.

  • EPDM Safety Playground Surfacing: On-site batch mixing of colorful rubber granules for park and kindergarten floors.

  • Sports Courts (Basketball / Tennis): Mixing cushioned polyurethane flooring compounds.

  • Permeable Aggregate Pavements: Mixing small-size resin-bound stones and pebbles.

Product Advantages

Direct Gear Reducer Transmission

Replaces prone-to-slip belt drives, ensuring full 3kW power delivery without efficiency loss during heavy mixing.

Thorough & Fast Blending (72 RPM)

Designed specifically to coat every granule evenly with glue, avoiding unmixed lumps or weak spots in the finished pavement.

Exceptional Site Mobility

Heavy-duty leg-mounted wheels allow one operator to move the mixer directly along the paving line, boosting work speed.
