6.35mm Barrier Terminal Blocks JRK16 Barrier Strip Terminal Block Screw Type Terminal Blocks
6.35mm Barrier Terminal Blocks JRK16 Barrier Strip Terminal Block Screw Type Terminal Blocks
Specifications
Brand Name :
Jrkconn
Model Number :
JRK16
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Type :
Barrier Screw Terminal Blocks
Pitch :
6.35mm
Number of poles :
2-24 poles
Color :
Black or Customized
Rated current :
10A
Wire gauge :
22-16 AWG
Contact Resistance :
20 m Ω
Insulation Resistance :
500 mΩ
Description
6.35mm Barrier Terminal Blocks JRK16 Barrier Strip Terminal Block Screw Type Terminal Blocks
High-performance 7.62mm screw-type terminal blocks designed for secure electrical connections in demanding industrial applications.
Key Characteristics
  • Insulating Barriers: Physical walls between terminals improve electrical isolation and increase safety.
  • Screw-Clamp Connection: Wires are secured using screws, ensuring strong mechanical retention and stable electrical contact.
  • High Current Capability: Suitable for power distribution and industrial electrical systems.
  • Durable Construction: Designed to withstand vibration, heat, and long-term operation.
  • Flexible Wiring Options: Accommodates a wide range of wire sizes and configurations.
Common Applications of the Screw Type Terminal Blocks
  • Power supplies and power distribution units
  • Industrial control and automation systems
  • HVAC equipment
  • Electrical panels and control cabinets
  • Audio and communication equipment
Why Choose JRKCONN?
  • Experienced Manufacturer: Over years in electronic connectors, specializing in headers, sockets, and customized solutions.
  • Own Factory & Production Lines: Fully equipped for stamping, injection molding, assembly, and quality control.
  • Wide Product Range & Customization: Supports standard and OEM/ODM products tailored to customer requirements.
  • Strict Quality Management: ISO9001 & ISO14001 certified, ensuring reliable performance.
  • Global Market Reach: Products supplied worldwide, with participation in major electronics exhibitions.
  • Versatile Applications: Solutions for industrial control, communications, medical devices, robotics, displays, and consumer electronics.
Technical Specifications
Specification Details
Model Number JRK16
Pin Header Material Brass, Tin plated
Type Barrier Terminal Blocks
Housing Material PA66, UL94V-0
Pitch 6.35 mm
Rated Voltage 300V
Poles 2P-24P
Withstanding Voltage AC 2000V / 1Min
Screws Material M3, Steel, Zinc Plating
Rated Current 10A
Wire Range 22-16 AWG
Torque 0.5Nm (4.43Lbin)
Temperature Range -40℃ ~ +105℃
Mounting Type Through Hole
Color Black
Application Industrial Control Systems, HVAC Systems, Power Supply, Transportation, Consumer Electronics, Telecommunications
Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.

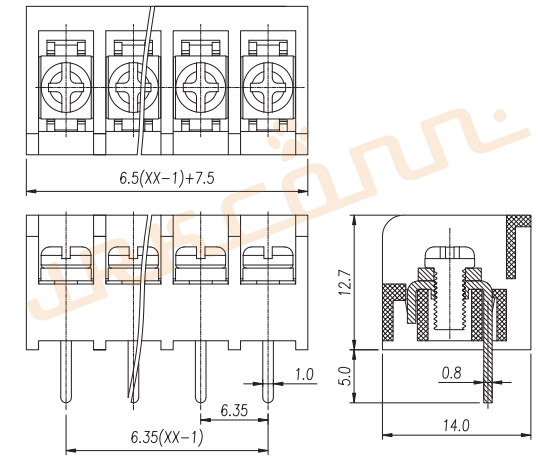

Technical Drawing
6.35mm Barrier Terminal Blocks JRK16 Barrier Strip Terminal Block Screw Type Terminal Blocks
Manufacturing Process
6.35mm Barrier Terminal Blocks JRK16 Barrier Strip Terminal Block Screw Type Terminal Blocks
Packaging & Delivery
Selling Units Package Port
Single item PE bag + carton box packing Shenzhen
Quantity (pcs) Samples Estimated delivery time (business day)
1 - 100K 3 ~ 7 15
Frequently Asked Questions
Can I have a sample order before placing a purchase order?
Samples are available for testing; customers pay only the express courier cost.
What is the sample lead time?
Standard samples take 3-7 working days; customized samples take 7-15 working days.
Do you have any MOQ Limit?
Low MOQ available; 1 piece for sample checking.
Can I make personalized/customized products?
Yes, we accept custom orders based on your drawings or samples.
How do you ship the goods, and how long does it take?
We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
