7.62mm Pitch PA66 Housing 300V Rated Voltage Barrier Terminal Block Wire Connector
7.62mm Pitch PA66 Housing 300V Rated Voltage Barrier Terminal Block Wire Connector
Specifications
Brand Name :
Jrkconn
Model Number :
JRK25C-7.62
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Rated voltage :
300V
Pitch :
7.62mm, 8.25mm, 9.5mm, 10.0mm, 11.0mm
Poles :
2P-24P
Housing :
PA66
Screw :
M3 Steel Zinc Plated
Wire range :
22-14AWG
Description
7.62mm Pitch 8 Way Screw Barrier Terminal Block Connector Terminal Block Wire Connector

Key Features of 7.62mm Pitch Barrier Terminal Blocks:

  • Screw terminals for a strong mechanical connection.
  • Insulating barriers to prevent accidental contact.
  • High safety and reliability.
  • Supports thick wires and high current.
  • Easy to install, inspect, and maintain.


Product Description of 7.62mm Pitch Barrier Terminal Blocks
Model Number JRK25C-7.62 Pin Header Brass, Tin plating
Type Barrier Blocks Housing Material Polyamide (PA66), Nylon 6/6
Pitch 7.62 mm Rated Voltage 300V
Poles 2P,-24P Withstanding Voltage AC 2000V / 1Min
Screws Material M3, Steel, Zinc Plating Rated Current 15A
Wire Range 22-14 AWG Max. Torque Value 8kg.cm
Temp Range -40℃ ~ +105℃ Mounting Type Through Hole
Color Black Application Industrial Control Systems, HVAC Systems, Power Supply, Transportation, Consumer Electronics, Telecommunications
Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.

Why Choose JRKCONN?


  1. With over 13 years of specialized experience in terminal block production, we possess deep industry knowledge and a refined manufacturing process.
  2. We enforce a strict 100% inspection policy for all products before shipment, guaranteeing reliability and performance for every order.
  3. One-stop service. Simplify your supply chain and save valuable time and costs with our comprehensive service, from sourcing and design support to final delivery.
  4. Our team of experts provides professional technical support and custom technical drawing assistance, offering tailored solutions for your specific application needs.

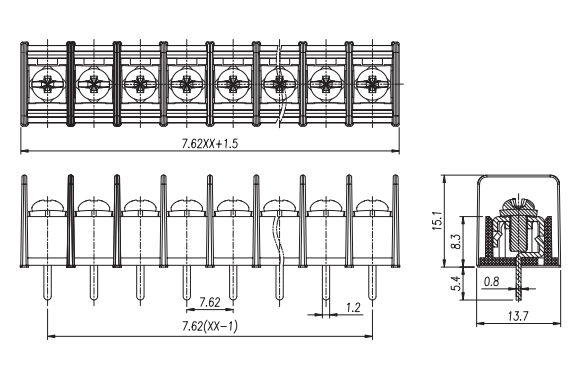

Technical Drawing of Barrier Terminal Block Connector

7.62mm Pitch PA66 Housing 300V Rated Voltage Barrier Terminal Block Wire Connector

Packing & Delivery
Selling Units Package Port
Single item PE bag + carton box packing Shenzhen
Quantity (pcs) Samples Estimated delivery time (business day)
1 - 100K 3 ~ 7 15
Custom Manufacturing Process
7.62mm Pitch PA66 Housing 300V Rated Voltage Barrier Terminal Block Wire Connector
Q&A

Q1. Can I have a sample order before placing a purchase order?

A: Samples are available for testing; customers pay only the express courier cost.

Q2. What is the sample lead time?

A: Standard samples take 3-7 working days; customized samples take 7-15 working days.

Q3. Do you have any MOQ Limit?

A: Low MOQ available; 1 piece for sample checking.

Q4. Can I make personalized/customized products?

A: Yes, we accept custom orders based on your drawings or samples.

Q5. How do you ship the goods, and how long does it take?

A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
