8 Poles Right Angle Type Barrier Terminal Block with 15 Amp Current Rating Screw Terminal Connector
8 Poles Right Angle Type Barrier Terminal Block with 15 Amp Current Rating Screw Terminal Connector
Specifications
Brand Name :
Jrkconn
Model Number :
JRK25R-7.62
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Pitch :
7.62 mm
Poles :
2P-24P
Current Rating :
15 Amp
Insulator Material :
PA66, UL94V-0
Material of Pin Header :
Brass, Tin Plating
Wire Gauge :
22-14 AWG
Description
Barrier Terminal Block Connector 8 Poles Right Angle Type Screw Terminal Connector
High-quality 8-way screw barrier terminal block connector designed for reliable electrical connections in demanding industrial applications.
Key Characteristics
  • Insulating Barriers: Physical walls between terminals improve electrical isolation and increase safety.
  • Screw-Clamp Connection: Wires are secured using screws, ensuring strong mechanical retention and stable electrical contact.
  • High Current Capability: Suitable for power distribution and industrial electrical systems.
  • Durable Construction: Designed to withstand vibration, heat, and long-term operation.
  • Flexible Wiring Options: Accommodates a wide range of wire sizes and configurations.
Common Applications
  • Power supplies and power distribution units
  • Industrial control and automation systems
  • HVAC equipment
  • Electrical panels and control cabinets
  • Audio and communication equipment
Technical Specifications of Barrier Terminal Block Connector 8 Poles Right Angle Type Screw Terminal Connector
Model Number JRK25R-7.62 Pin Header Brass, Tin plating
Type Barrier Blocks Housing Material Polyamide (PA66), Nylon 6/6
Pitch 7.62 mm Rated Voltage 300V
Poles 2P-24P Withstanding Voltage AC 2000V / 1Min
Screws Material M3, Steel, Zinc Plating Rated Current 15A
Wire Range 22-14 AWG Max. Torque Value 8kg.cm
Temp Range -40℃ ~ +105℃ Mounting Type Through Hole
Color Black Application Industrial Control Systems, HVAC Systems, Power Supply, Transportation, Consumer Electronics, Telecommunications
Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.

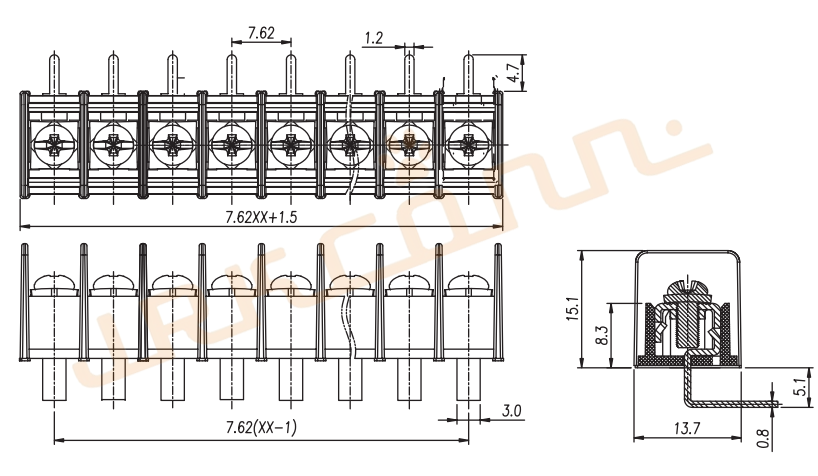

Technical Drawing of Barrier Terminal Block Connector 8 Poles Right Angle Type Screw Terminal Connector
8 Poles Right Angle Type Barrier Terminal Block with 15 Amp Current Rating Screw Terminal Connector
Manufacturing Process
8 Poles Right Angle Type Barrier Terminal Block with 15 Amp Current Rating Screw Terminal Connector
Packaging & Delivery
Selling Units Package Port
Single item PE bag + carton box packing Shenzhen
Quantity (pcs) Samples Estimated delivery time (business day)
1 - 100K 3 ~ 7 15
Why Choose JRKCONN?
  • Over 13 years of specialized experience in terminal block production with deep industry knowledge and refined manufacturing processes.
  • Strict 100% inspection policy for all products before shipment, guaranteeing reliability and performance.
  • One-stop service simplifies your supply chain and saves valuable time and costs.
  • Expert technical support and custom technical drawing assistance for tailored solutions.
Frequently Asked Questions
Q: Can I have a sample order before placing a purchase order?
A: Samples are available for testing; customers pay only the express courier cost.
Q: What is the sample lead time?
A: Standard samples take 3-7 working days; customized samples take 7-15 working days.
Q: Do you have any MOQ Limit?
A: Low MOQ available; 1 piece for sample checking.
Q: Can I make personalized/customized products?
A: Yes, we accept custom orders based on your drawings or samples.
Q: How do you ship the goods, and how long does it take?
A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
